Connector Locations

Driver Door LHD:






Driver Door RHD:






Passenger Door LHD:

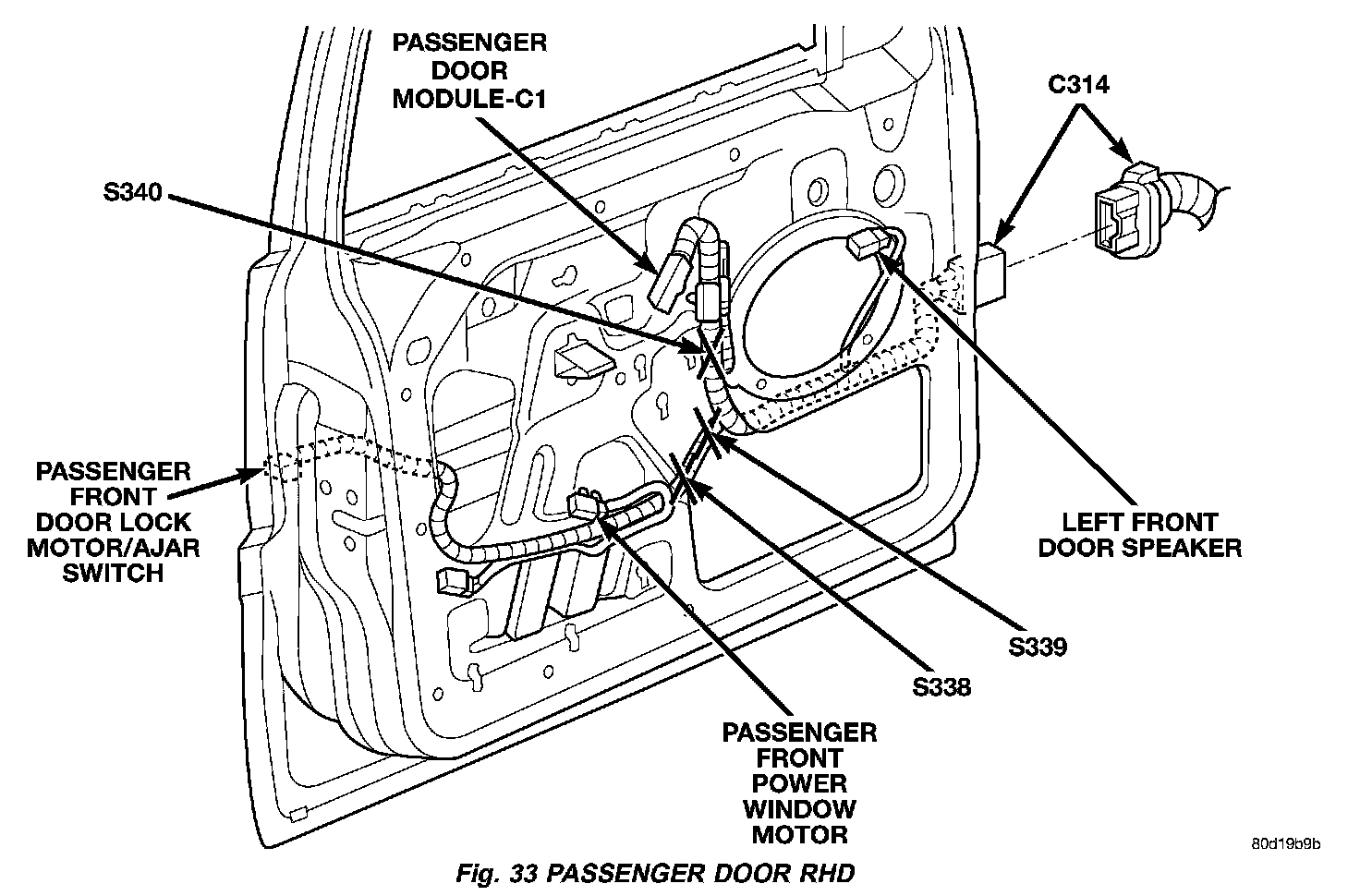

Fig. 33 Passenger Door RHD:

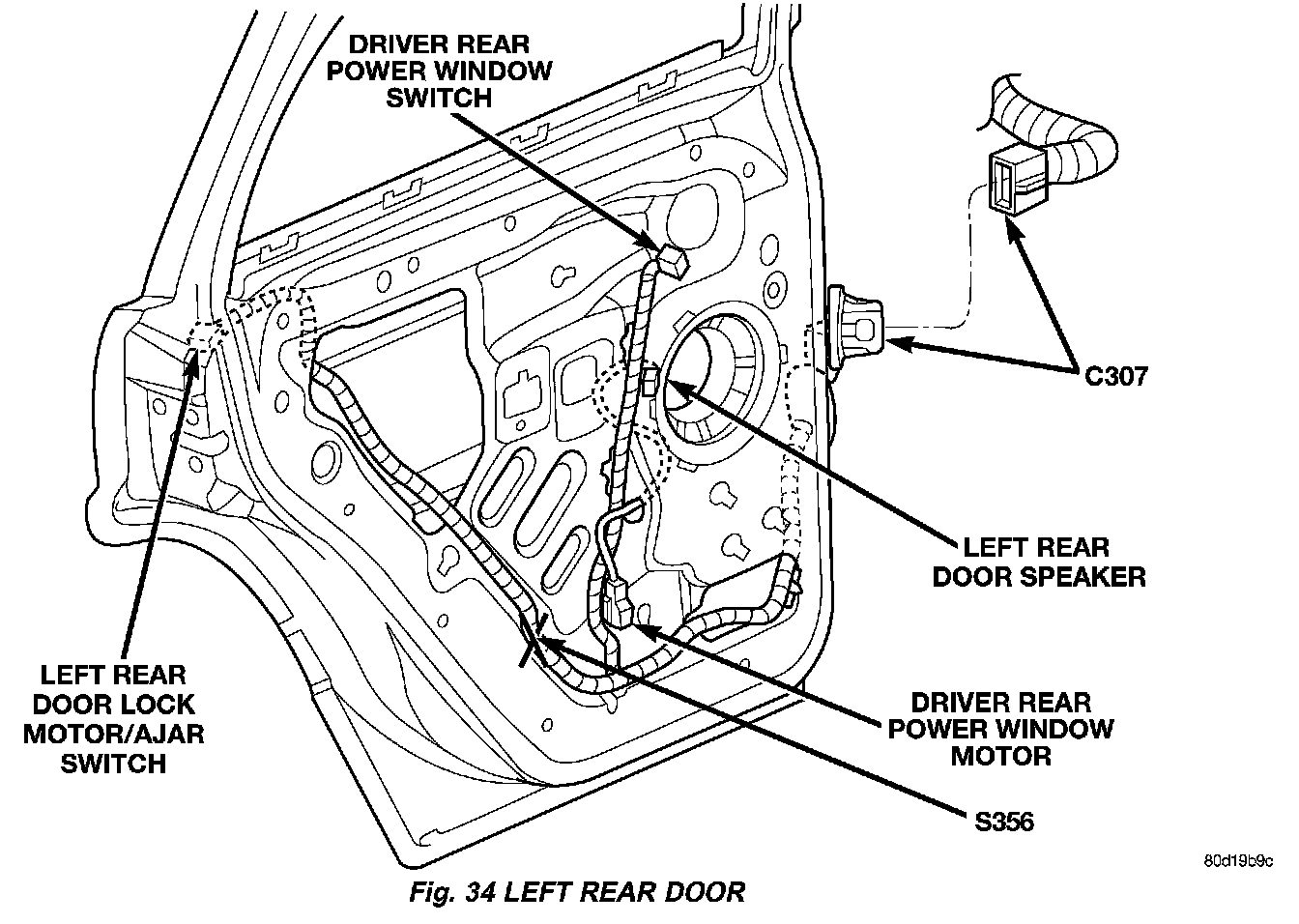

Fig. 34 Left Rear Door:
