Transfer Case Shift Boot: Service and Repair

4WD FLOOR SHIFT BOOT

REMOVAL

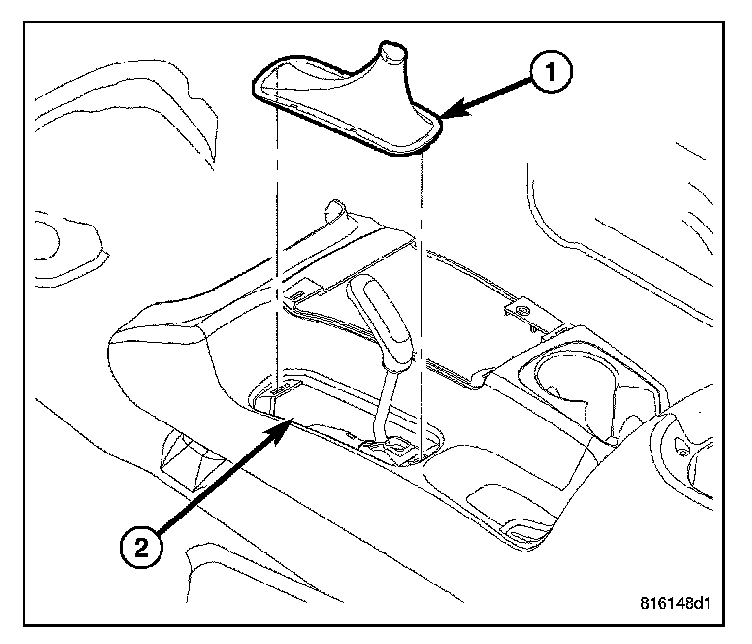

1. Separate the boot bezel from the console (2).
2. Release the upper snap and remove the boot (1) from the shifter.

INSTALLATION




1. Position the boot (1) over the top of the transfer case shifter lever with the snap facing toward the front of the vehicle.
2. Seat the bezel into the console (2) aperture fully.
3. Fasten the snap on the top of the boot above the ring on the bottom of the knob.
