Fuel Pump Pickup Filter: Service and Repair

INLET FILTER

REMOVAL

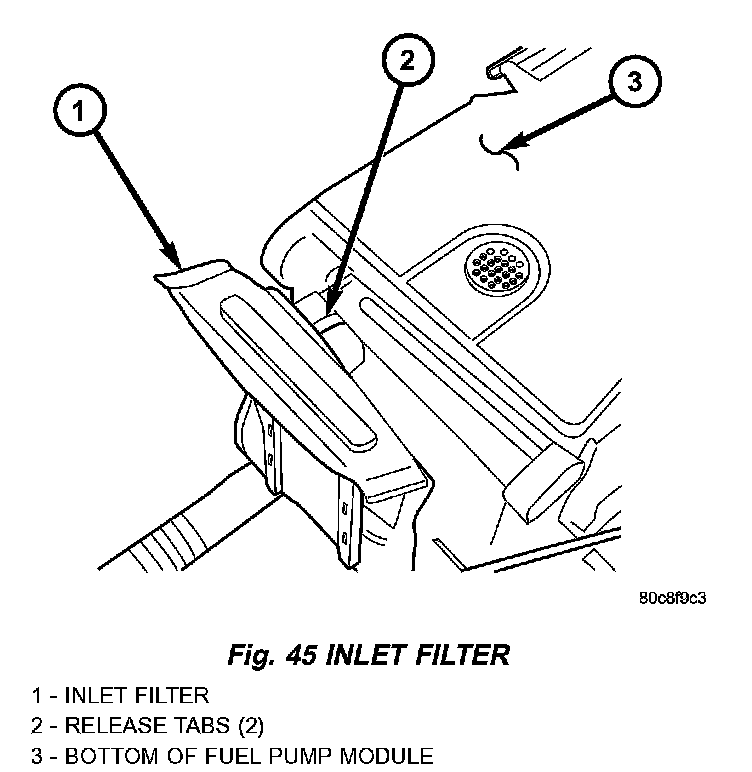

Fig.45 Inlet Filter:

The fuel pump inlet filter is located on the bottom/side of the lower fuel pump module section. The fuel pump module assembly is located in the fuel tank.
1. Remove lower section of fuel pump module. Refer to Fuel Pump Module Removal/Installation.
2. Remove filter by prying from pump module with 2 small screwdrivers. Filter is snapped to module with 2 release tabs.
3. Clean filter entrance into pump module opening.

INSTALLATION
1. Snap new filter to bottom of fuel pump module.
2. Install lower section of fuel pump module. Refer to Fuel Pump Module Removal/Installation.
