Fuel Delivery Check

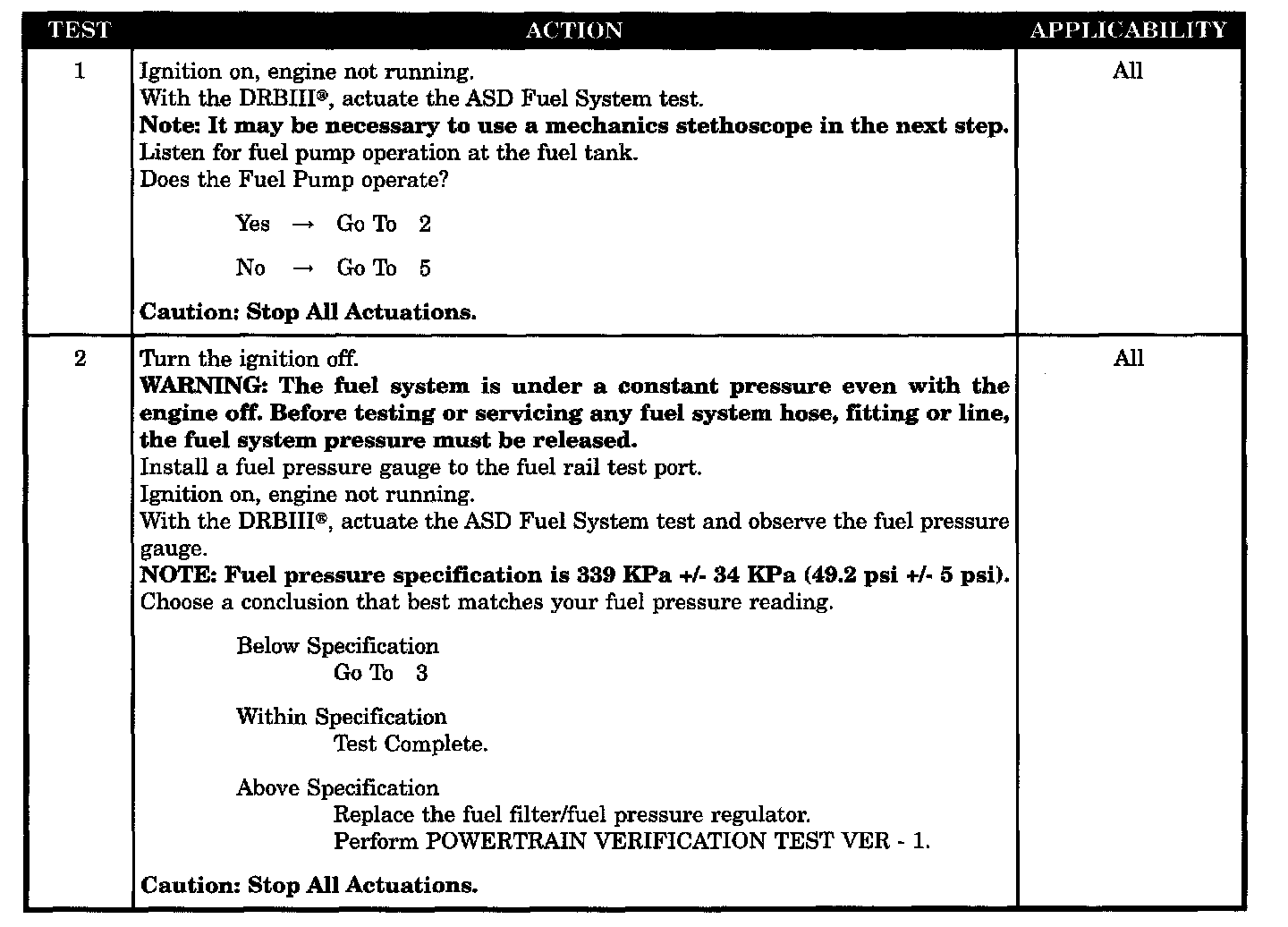

Test 1 - 2:
Test 3 - 6:
Test 7 - 9:
SYMPTOM CHECKING FUEL DELIVERY
POSSIBLE CAUSES -
Fuel pump relay -
Fuel pressure out of specification
-
Restricted
fuel supply line -
Fuel pump inlet strainer plugged
-
Fuel pump -
(A14) fused B+ circuit
-
(A141)
fuel pump relay output circuit open
-
(Z211)
fuel pump ground circuit excessive resistance
-
Fuel pump module
