System Schematics

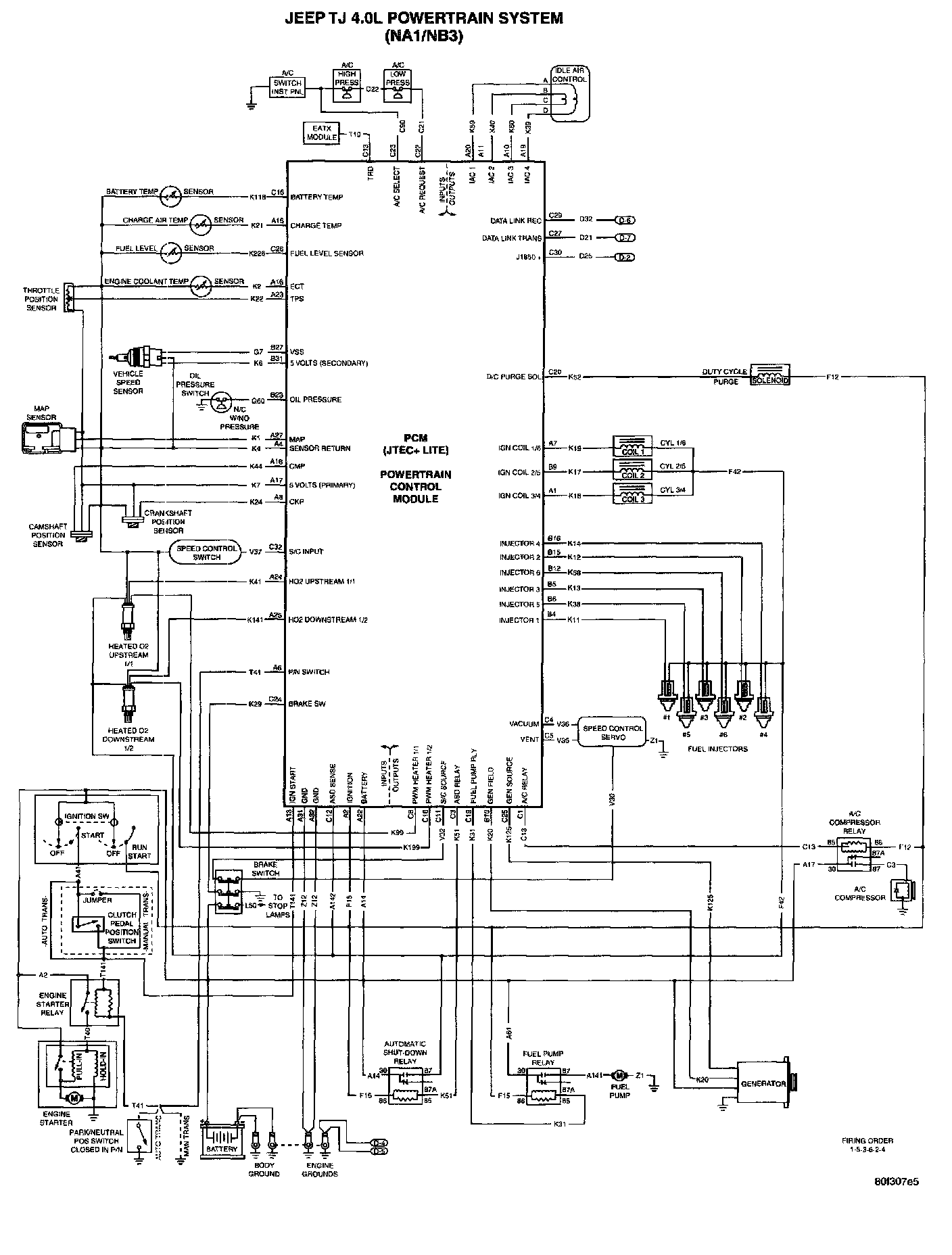

Jeep TJ 4.0L Powertrain System (NA1/NB3):

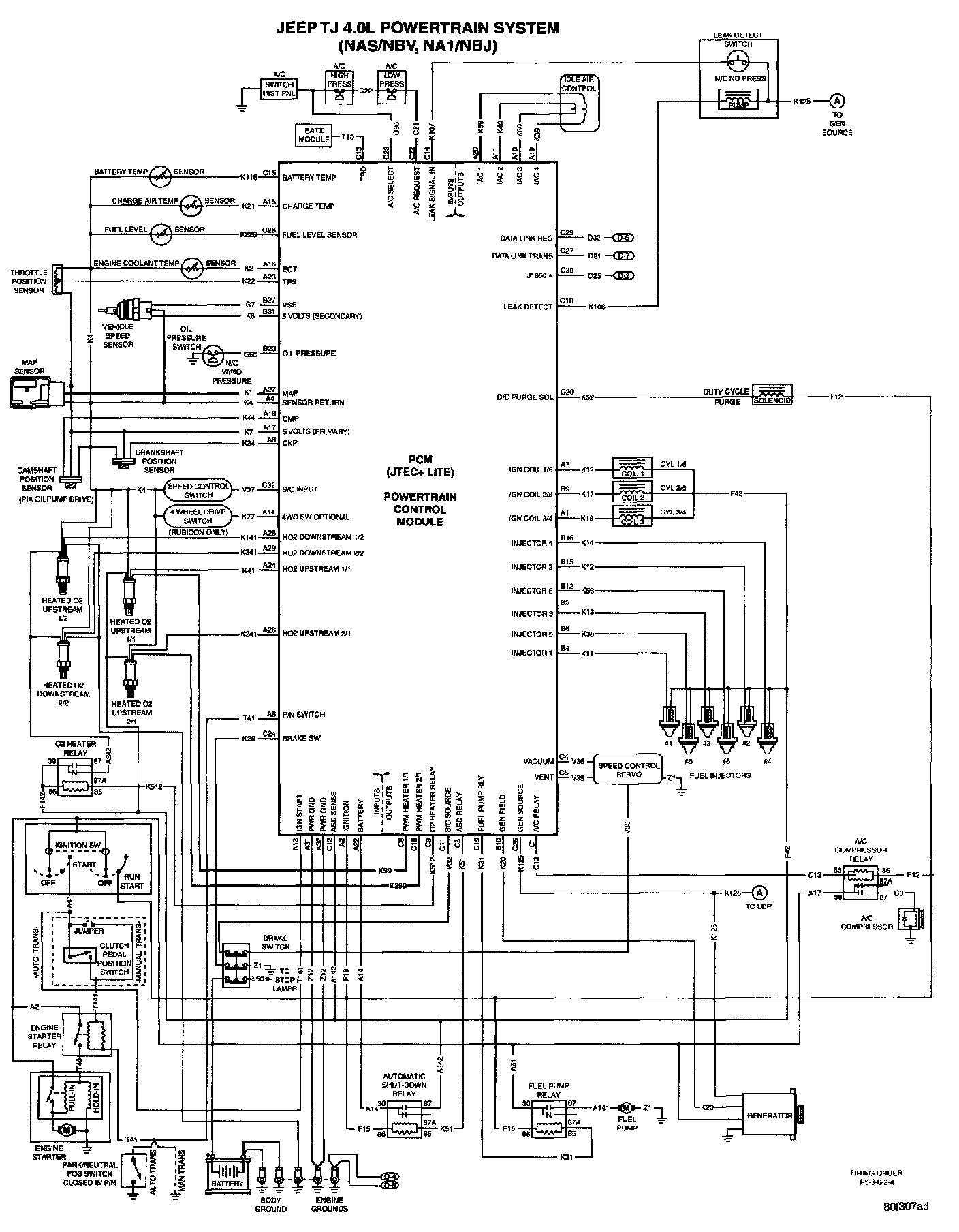

Jeep TJ 4.0L Powertrain System (NAS/NBV, NA1/NBJ):
