Cruise Control Vacuum Reservoir: Service and Repair

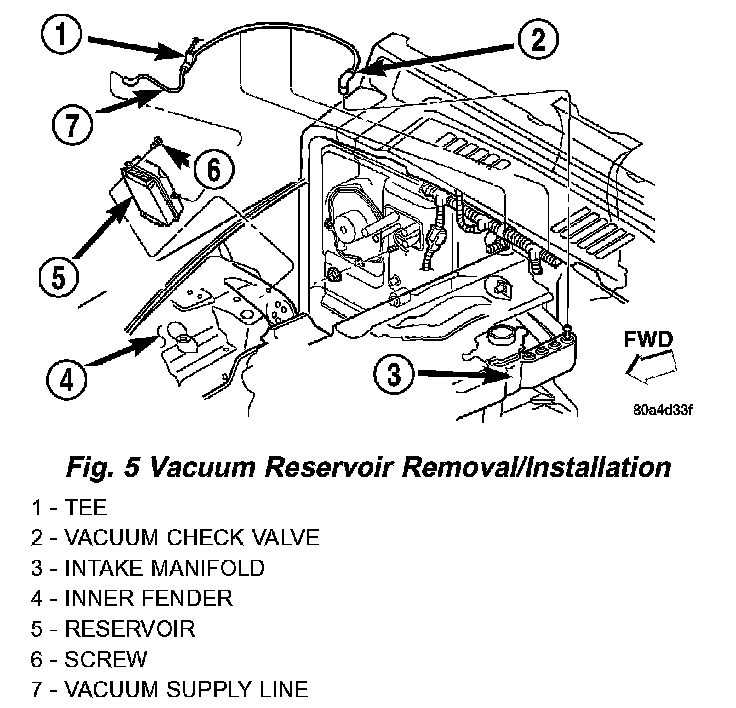

Fig.5 Vacuum Reservoir Removal/Installation:




REMOVAL
The vacuum reservoir is located under the vehicle battery tray.
1. Remove battery and battery tray. Refer to Battery Removal/Installation.
2. Disconnect vacuum supply line at reservoir.
3. Remove screw securing reservoir to inner fender.
4. Remove reservoir from vehicle.

INSTALLATION
The vacuum reservoir is located under the vehicle battery tray.
1. Position reservoir to vehicle and install mounting screw.
2. Tighten screw to 1.2 Nm (10 in. lbs.) torque.
3. Connect vacuum line to reservoir.
4. Install battery and battery tray. Refer to Battery Removal/Installation.
