Gear Sensor/Switch, Transfer Case

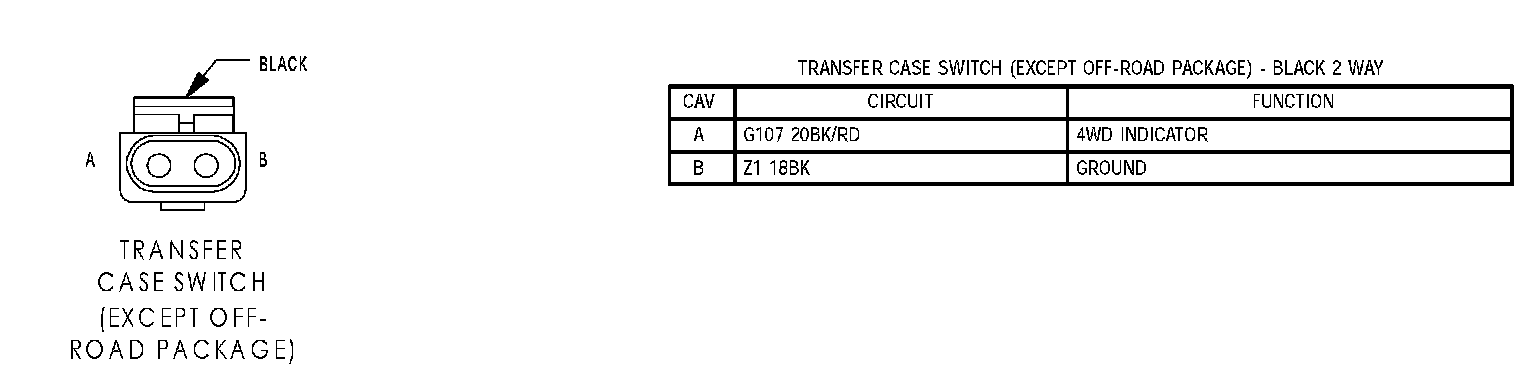

Transfer Case Switch (Except Off-Road Package):

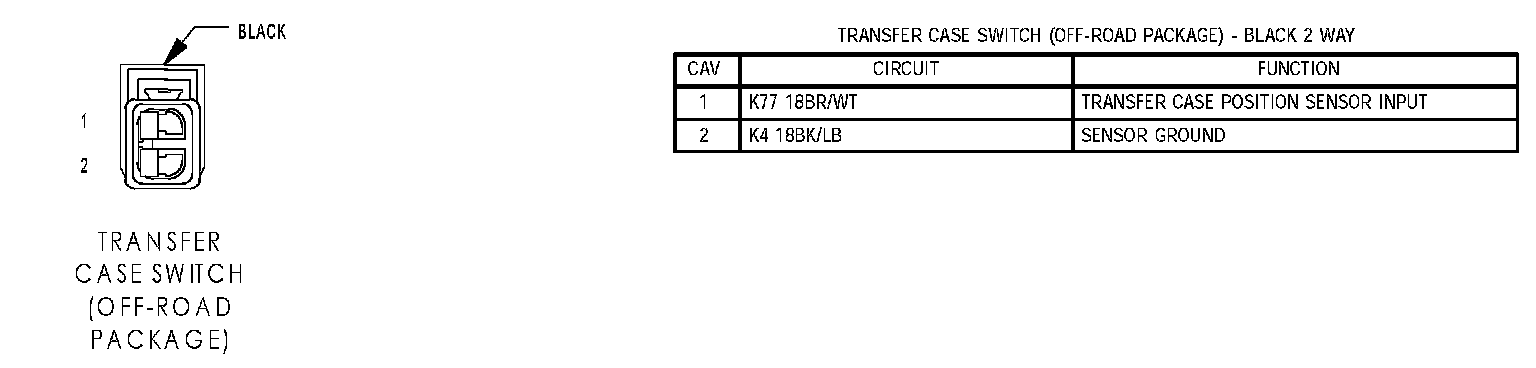

Transfer Case Switch (Off-Road Package):
