Oxygen Sensor

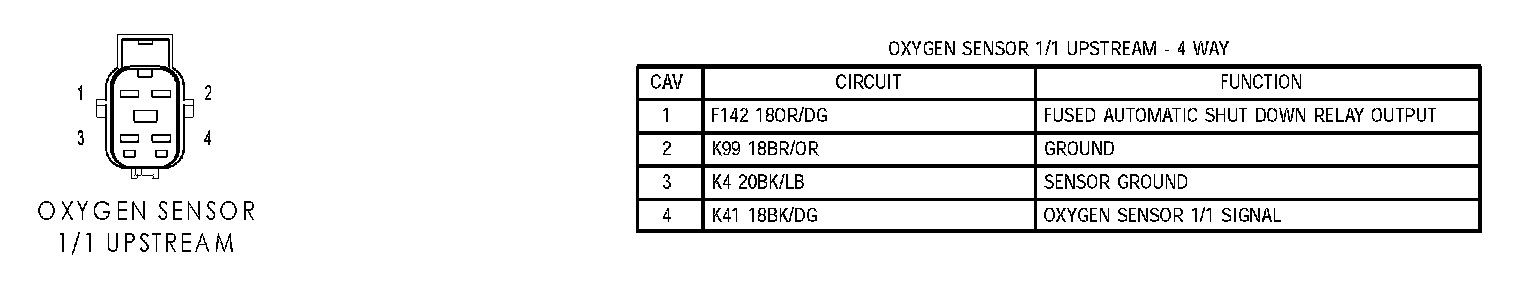

Oxygen Sensor 1/1 Upstream:

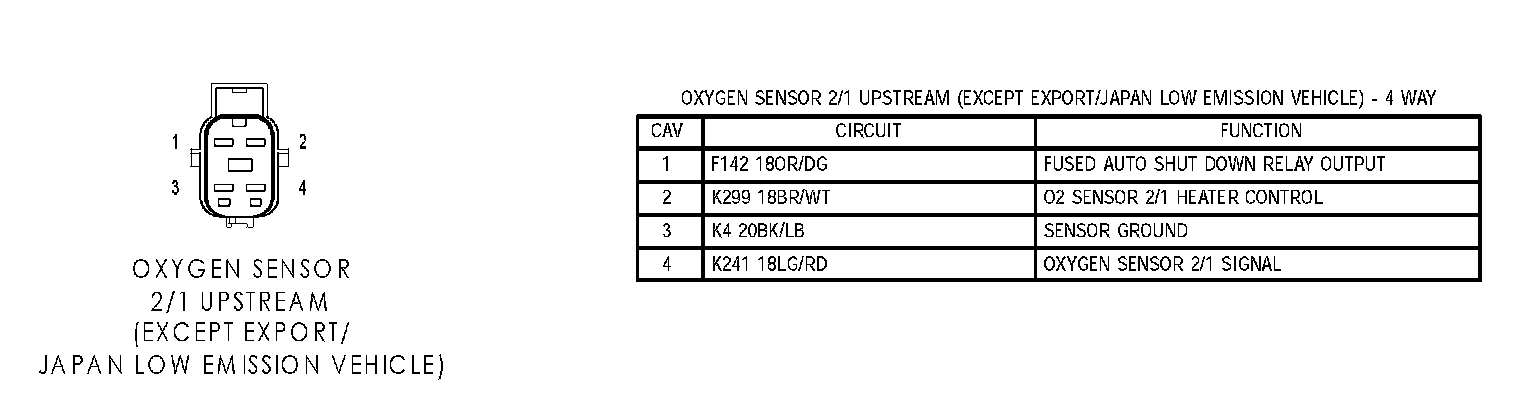

Oxygen Sensor 2/1 Upstream (Except Export/Japan Low Emission Vehicle):

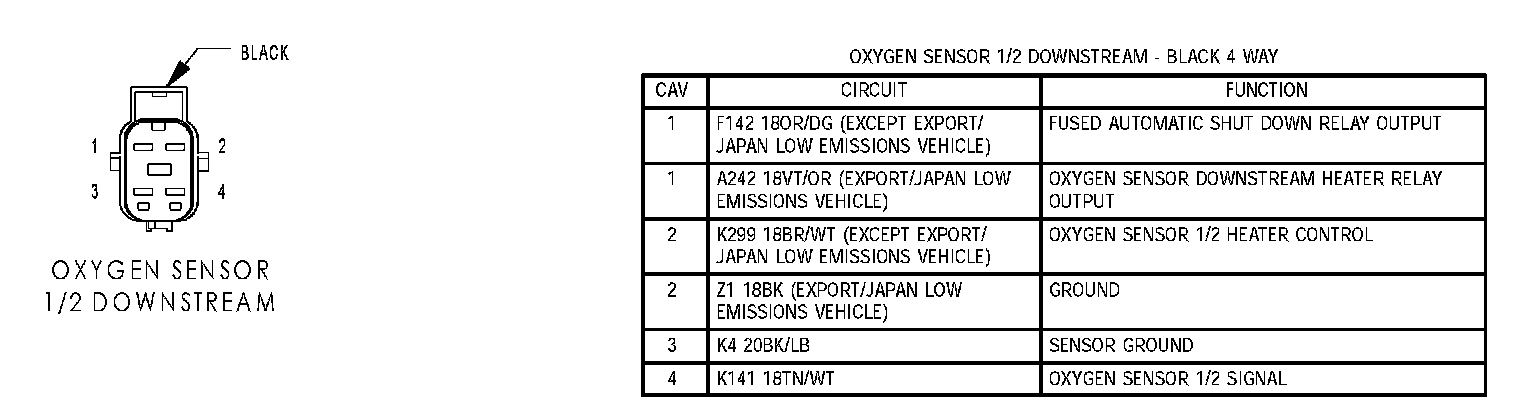

Oxygen Sensor 1/2 Downstream:

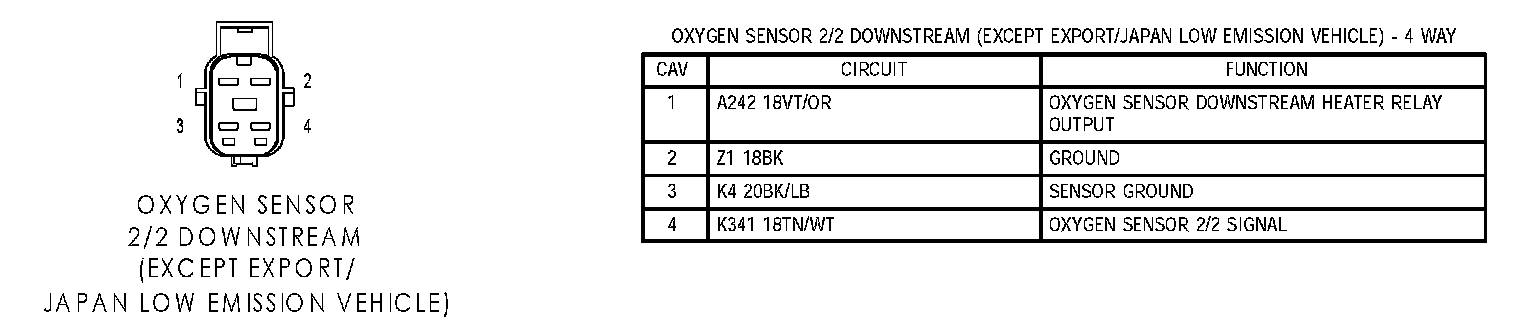

Oxygen Sensor 2/2 Downstream (Except Export/Japan Low Emission Vehicle):
