Dome Lamp: Service and Repair

REMOVAL

NOTE: The dome lamp procedure is the same for the right dome lamp.

1. Disconnect the battery negative cable.
2. Insert a small flat blade between the lamp housing and lamp lens. Carefully pry lamp lens from the lamp housing.

NOTE: The dome lamp lens has a larger lens positioning tab than the lens retaining tabs.

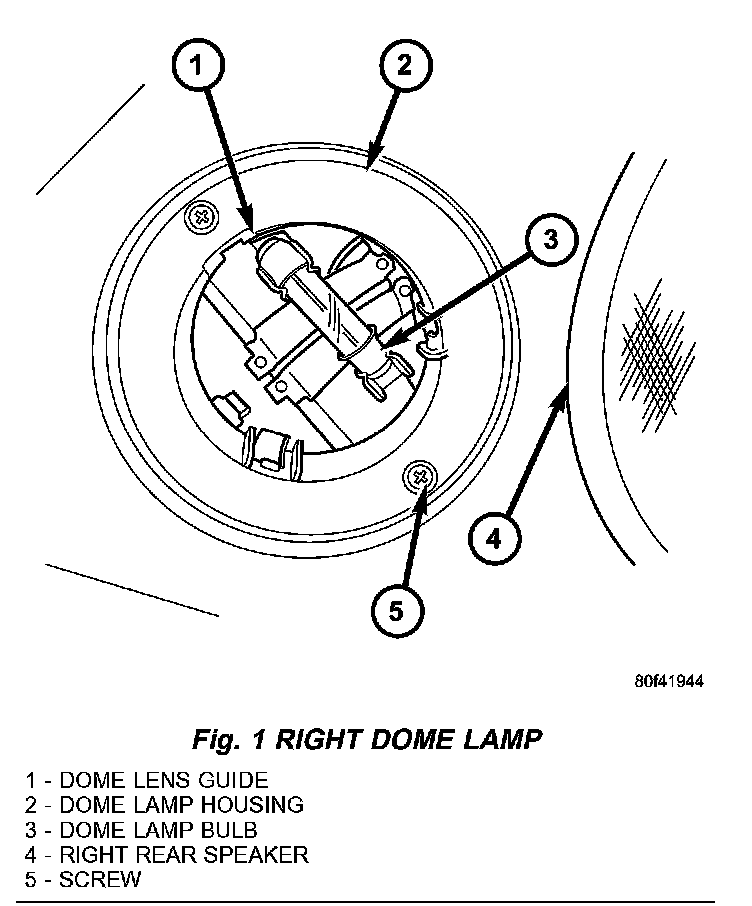

Fig. 1 Right Dome Lamp:

3. Separate lens from lamp.
4. Remove the screws attaching the lamp to the speaker housing.
5. Disengage lamp electrical connector.

INSTALLATION
1. Connect dome lamp electrical connector.

NOTE: The dome lamp housing is equipped with a locating tab that must be inserted in to the speaker housing for proper positioning.

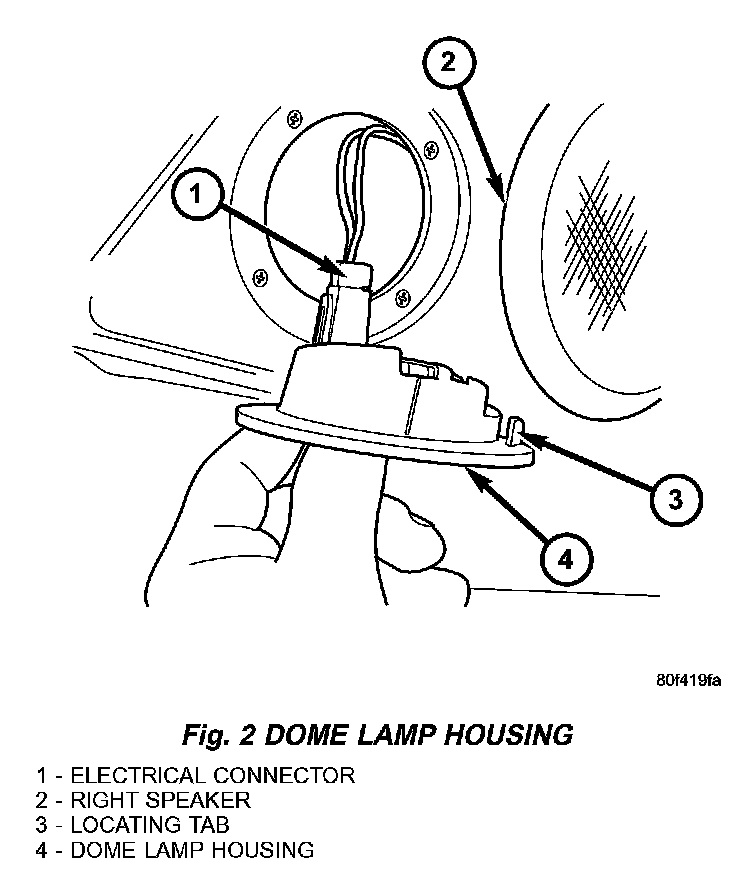

Fig. 2 Dome Lamp Housing:

2. Position dome lamp in speaker housing.
3. Install the screws attaching the lamp to the speaker housing.

NOTE: Care must be taken to align the dome lamp lens guide tab.

4. Position lamp lens on lamp housing and press into place
5. Connect the battery negative cable.
