Headlamp: Service and Repair

HEADLAMP UNIT

REMOVAL
1. Disconnect and isolate the battery negative cable.

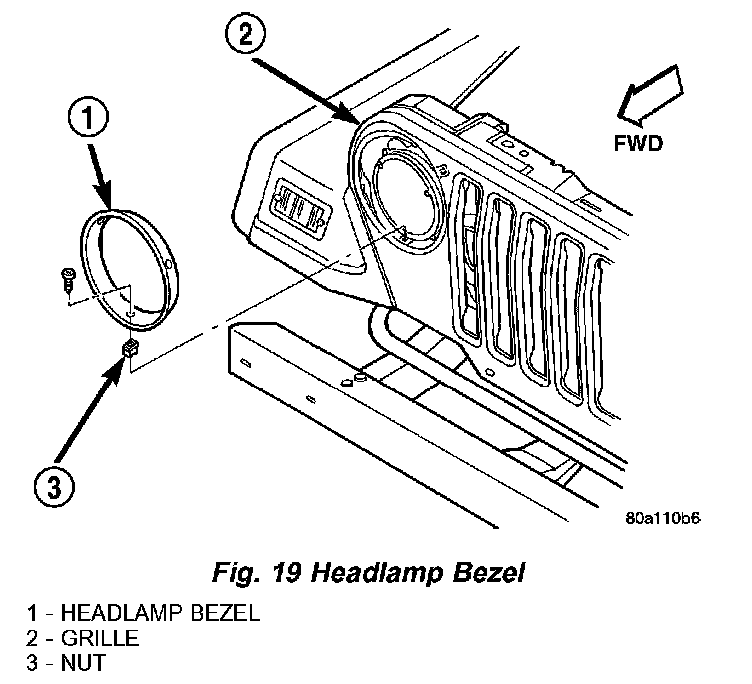

Fig. 19 Headlamp Bezel:

2. Remove the screws that attach the headlamp bezel.

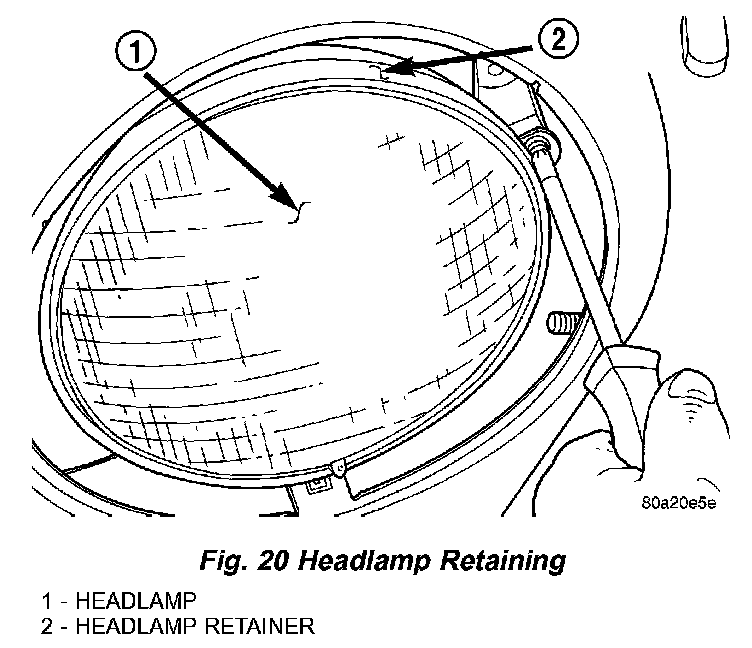

Fig. 20 Headlamp Retaining:

3. Remove the screws that attach the headlamp retaining ring.

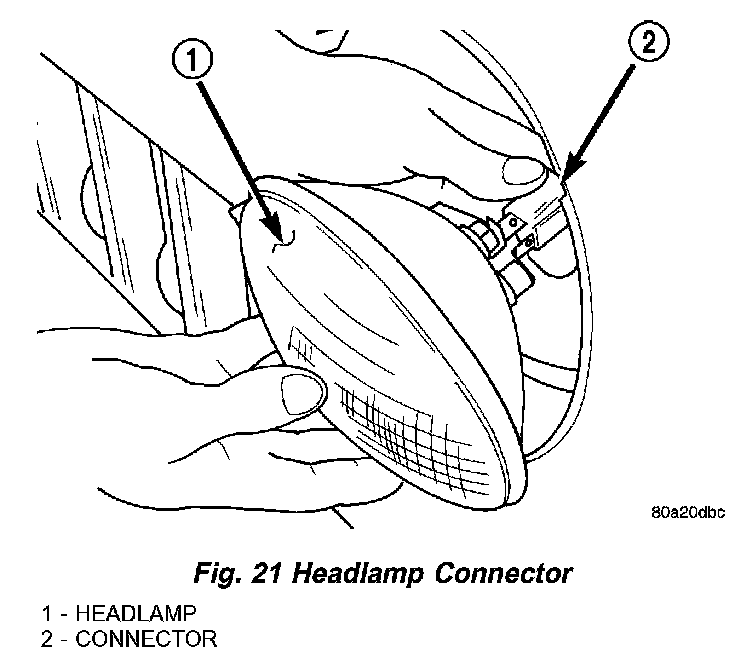

Fig. 21 Headlamp Connector:

4. Disconnect the headlamp wire harness connector and remove the bulb from the bucket.

INSTALLATION
1. Connect the wire harness connector and position the bulb in the bucket, insure the bosses on the headlamp align with the slots in the bucket.
2. Position retaining ring on the headlamp bulb and install screws.
3. Install the headlamp bezel.
4. Connect the battery negative cable.
