Air Bag System
>>
Airbag Indicator Inoperative
Airbag Indicator Inoperative

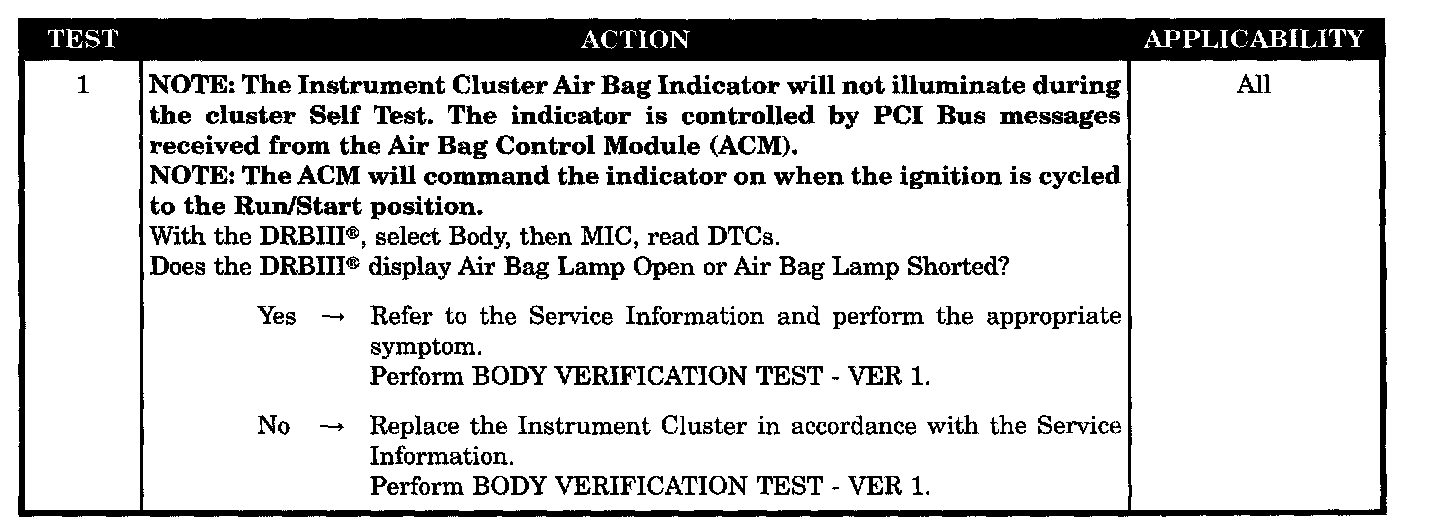

Test 1:
SYMPTOM
AIRBAG INDICATOR INOPERATIVE
POSSIBLE CAUSES
-
Instrument cluster
-
Airbag indicator DTC
