Chime Inoperative With Key In Ignition and Driver's Door Open

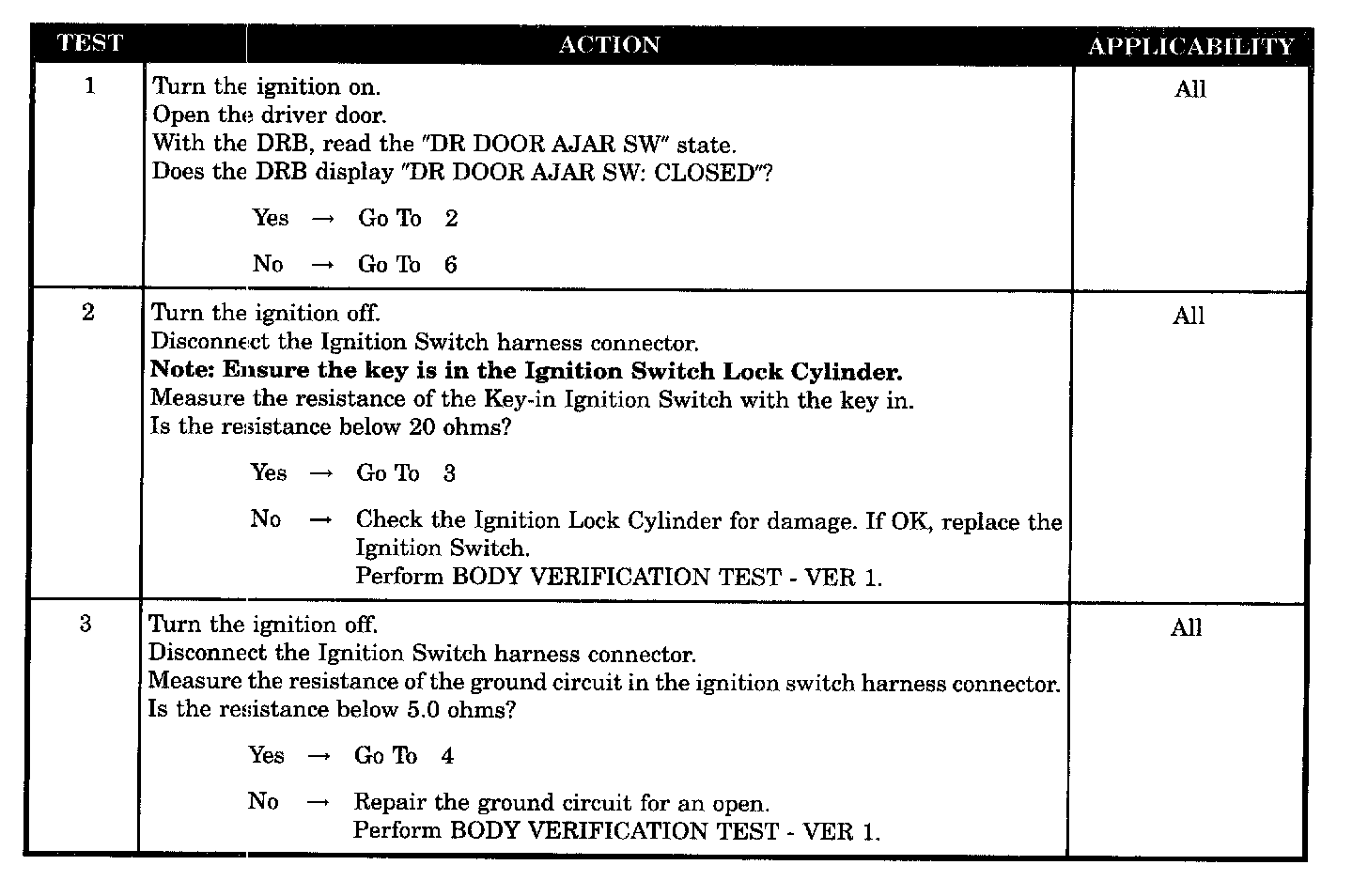

Test 1 - 3:

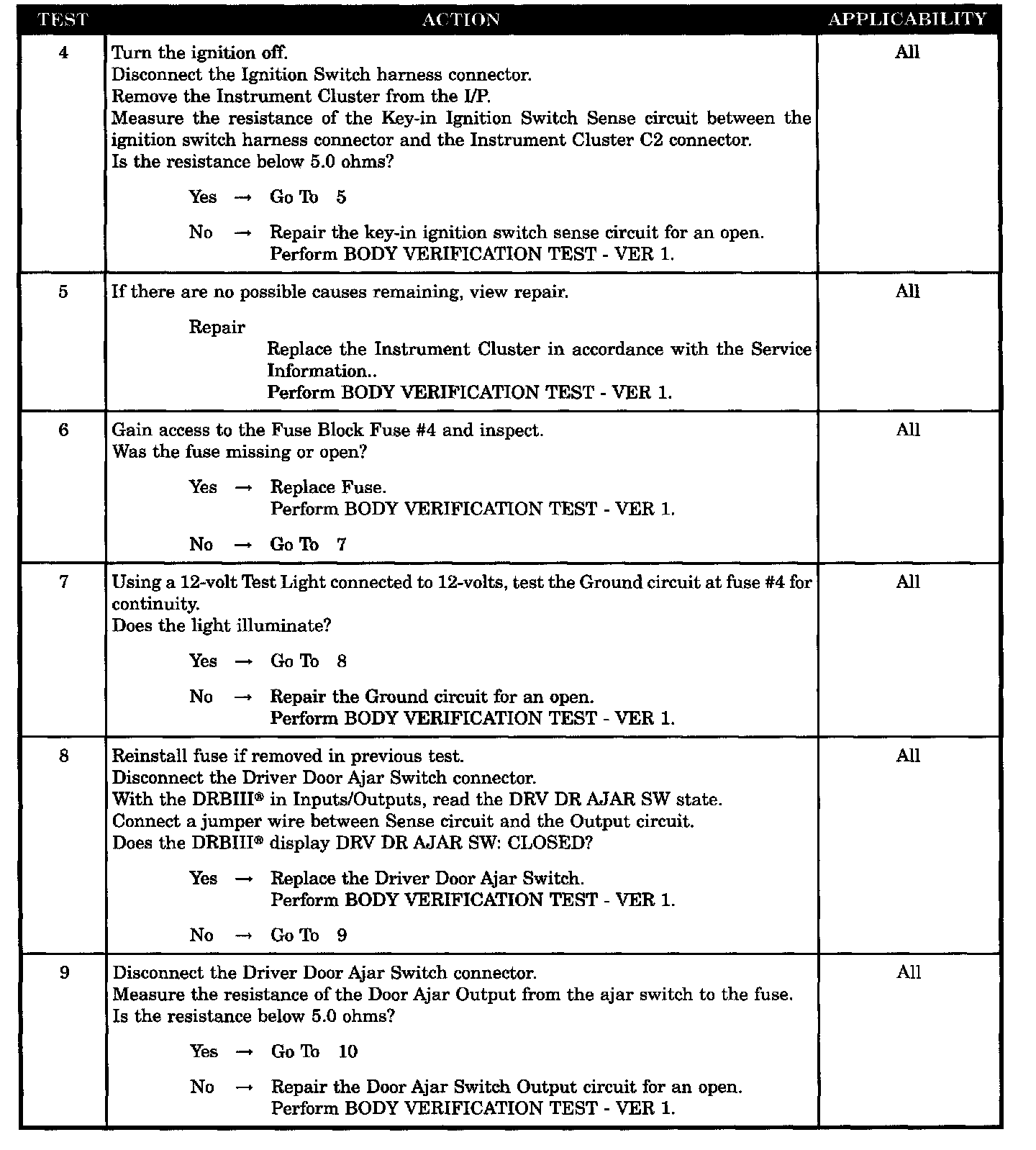

Test 3 - 8:

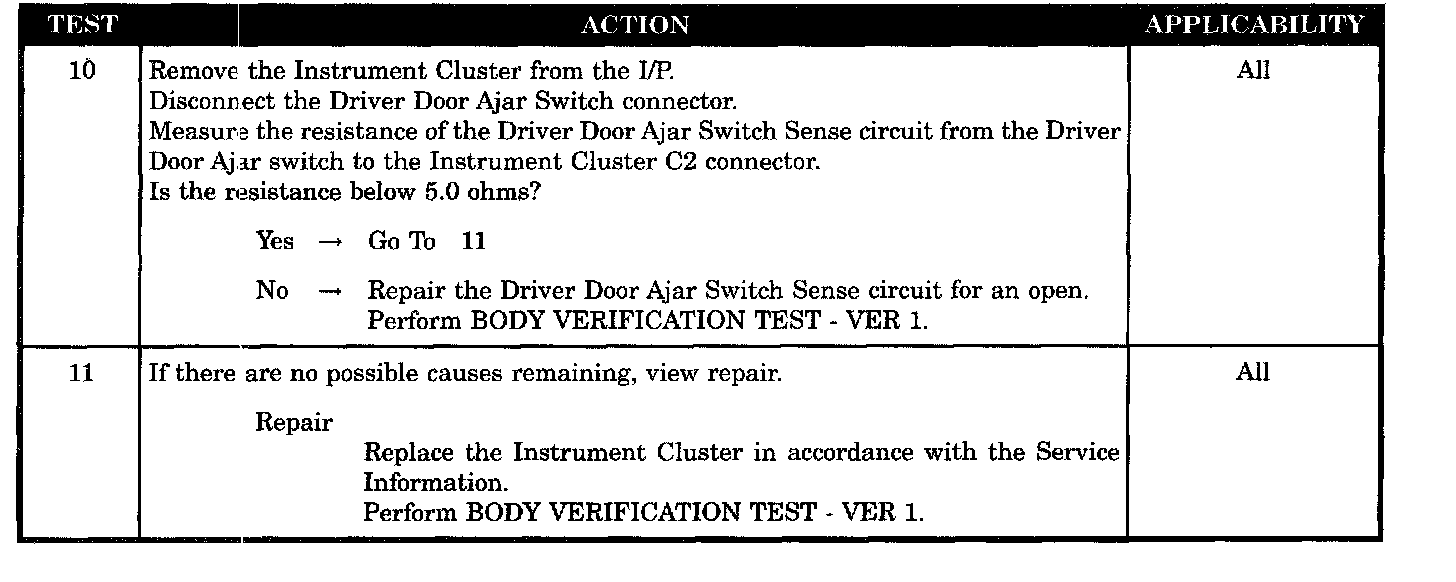

Test 10 - 11:

SYMPTOM
CHIME INOPERATIVE WITH KEY IN IGNITION, DRIVER'S DOOR OPEN

POSSIBLE CAUSES
- Open door ajar ground CKT
- Open/missing fuse 4
- Driver door ajar switch
- Door ajar switch output circuit open
- Driver door ajar switch sense circuit open
- Instrument cluster - door ajar
- Ignition switch ground circuit open
- Key-in ignition switch open
- Key-in ignition switch sense circuit open
- Instrument cluster - key-in
