Fog Lamp Indicator Inoperative - Domestic

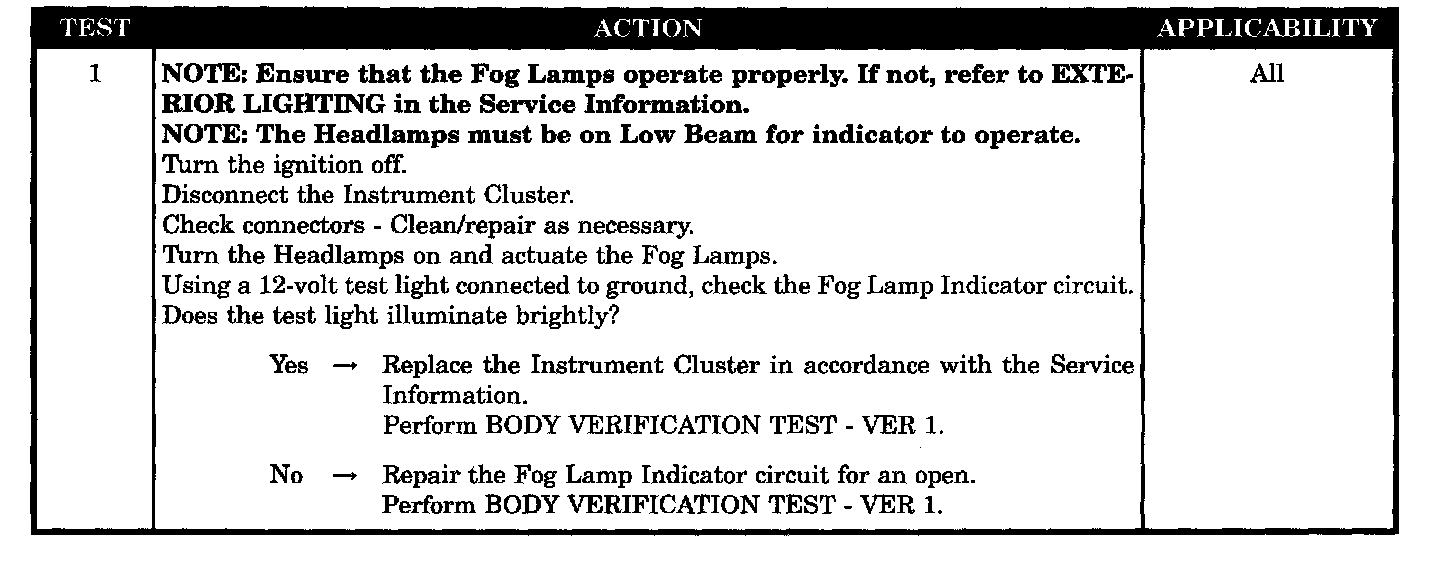

Test 1:






SYMPTOM
FOG LAMP INDICATOR INOPERATIVE - DOMESTIC

POSSIBLE CAUSES
- Fog lamp indicator circuit open
- Instrument cluster
