Jeep
>>
2003
>>
Wrangler L4-2.4L VIN P
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>
Component Locations
Component Locations

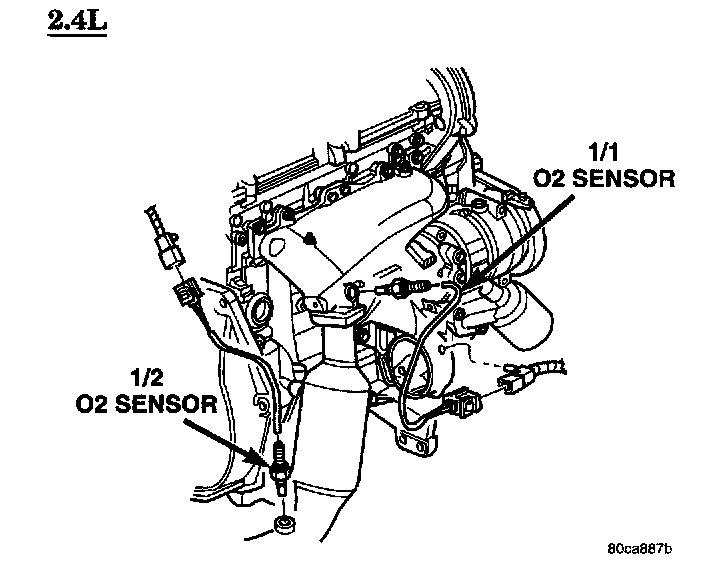

2.4L:

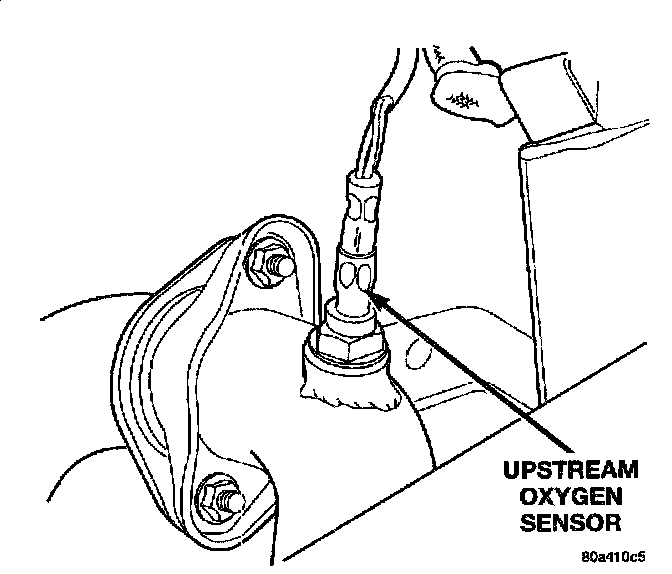

1/1 Federal & BUX:

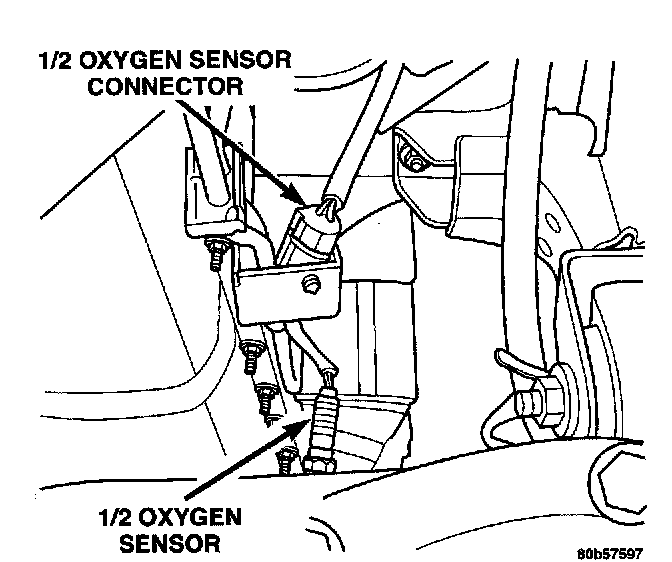

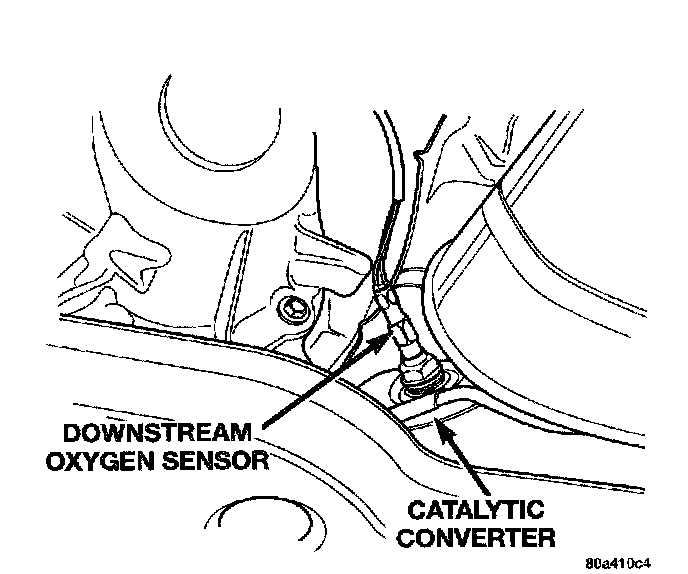

1/2 Federal & BUX:

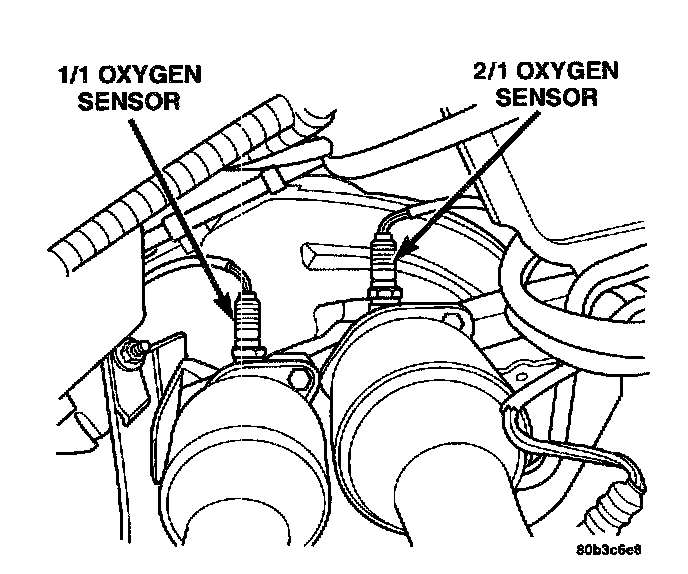

1/1 and 2/1 Calif & EURO III:

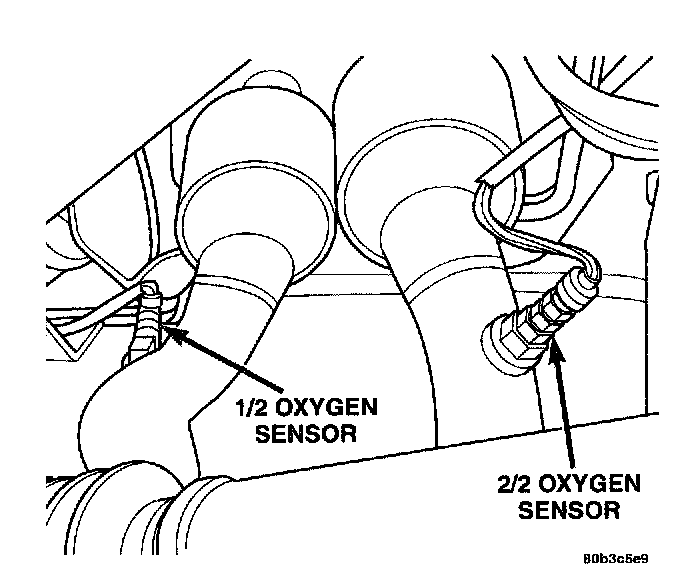

1/2 and 2/2 Calif & EURO III:
1/2 Calif & EURO III:
