Checking Radiator Fan Operation With No DTCs

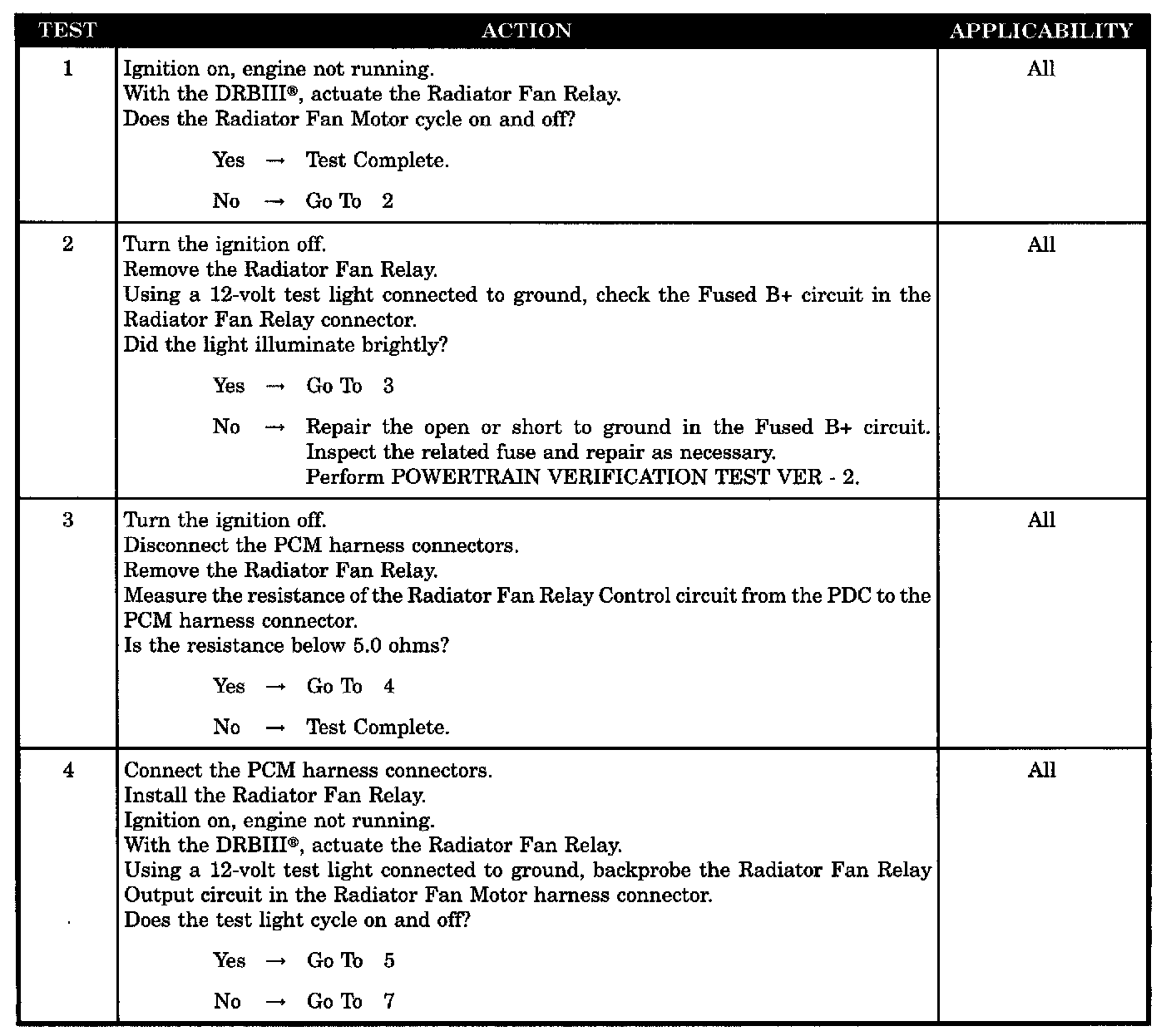

Test 1 - 4:

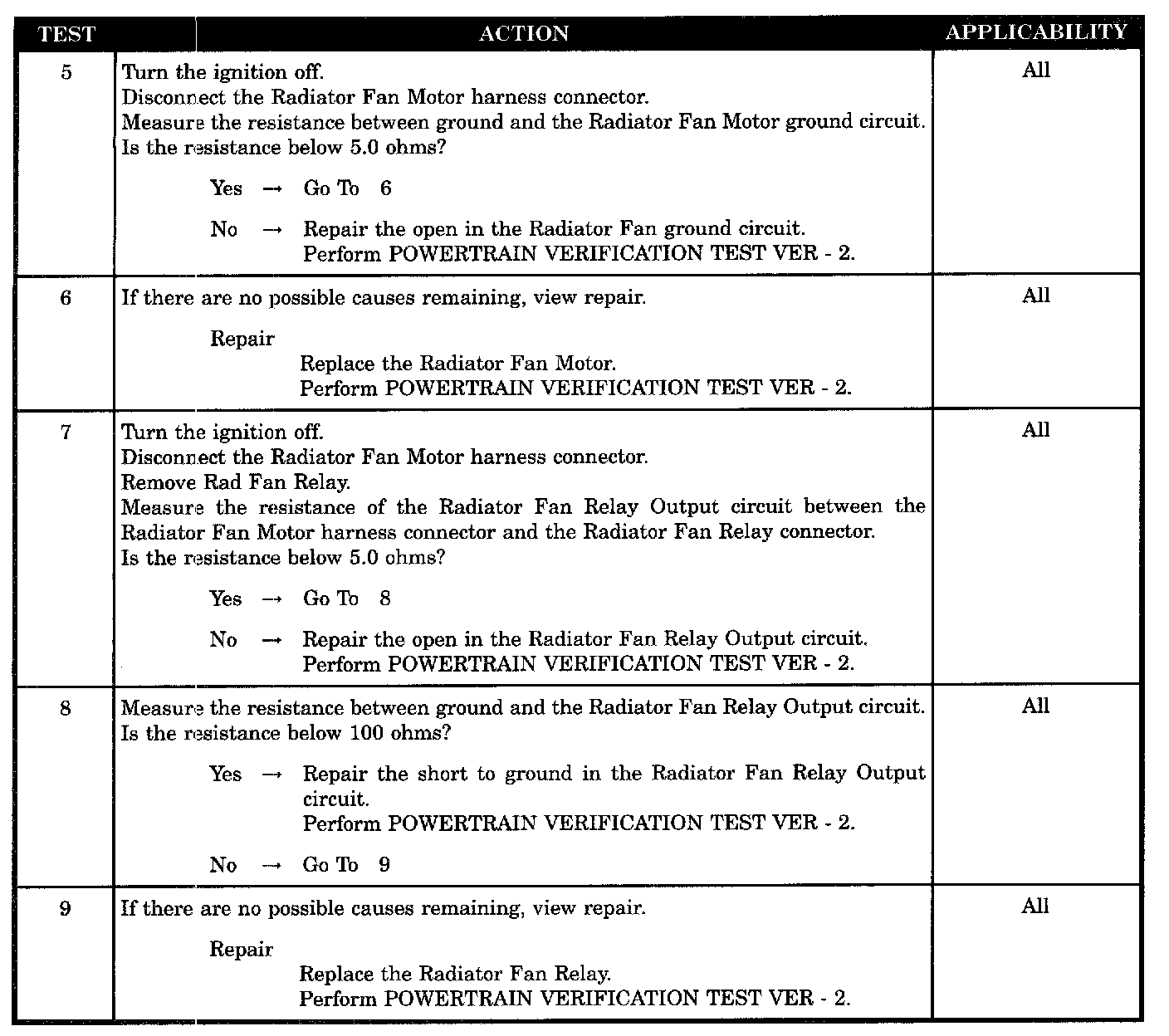

Test 5 - 9:

SYMPTOM
CHECKING RADIATOR FAN OPERATION WITH NO DTCS

POSSIBLE CAUSES
- Fused B+
- radiator fan relay output circuit open
- Rad fan motor
- Radiator fan relay output circuit shorted to ground
- Radiator fan relay
- Radiator fan ground circuit open
