Engine Cranks But Does Not Start

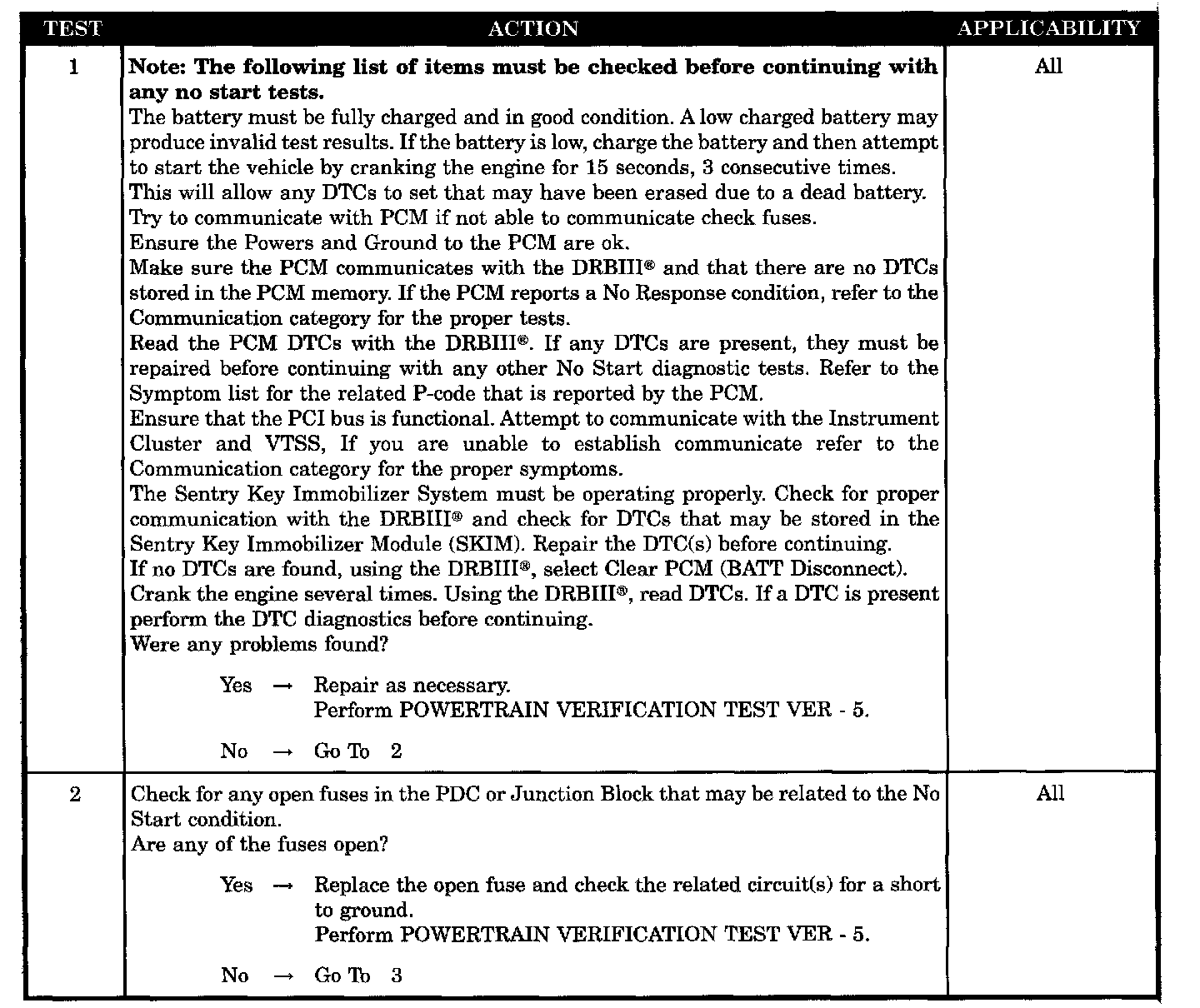

Test 1 - 2:

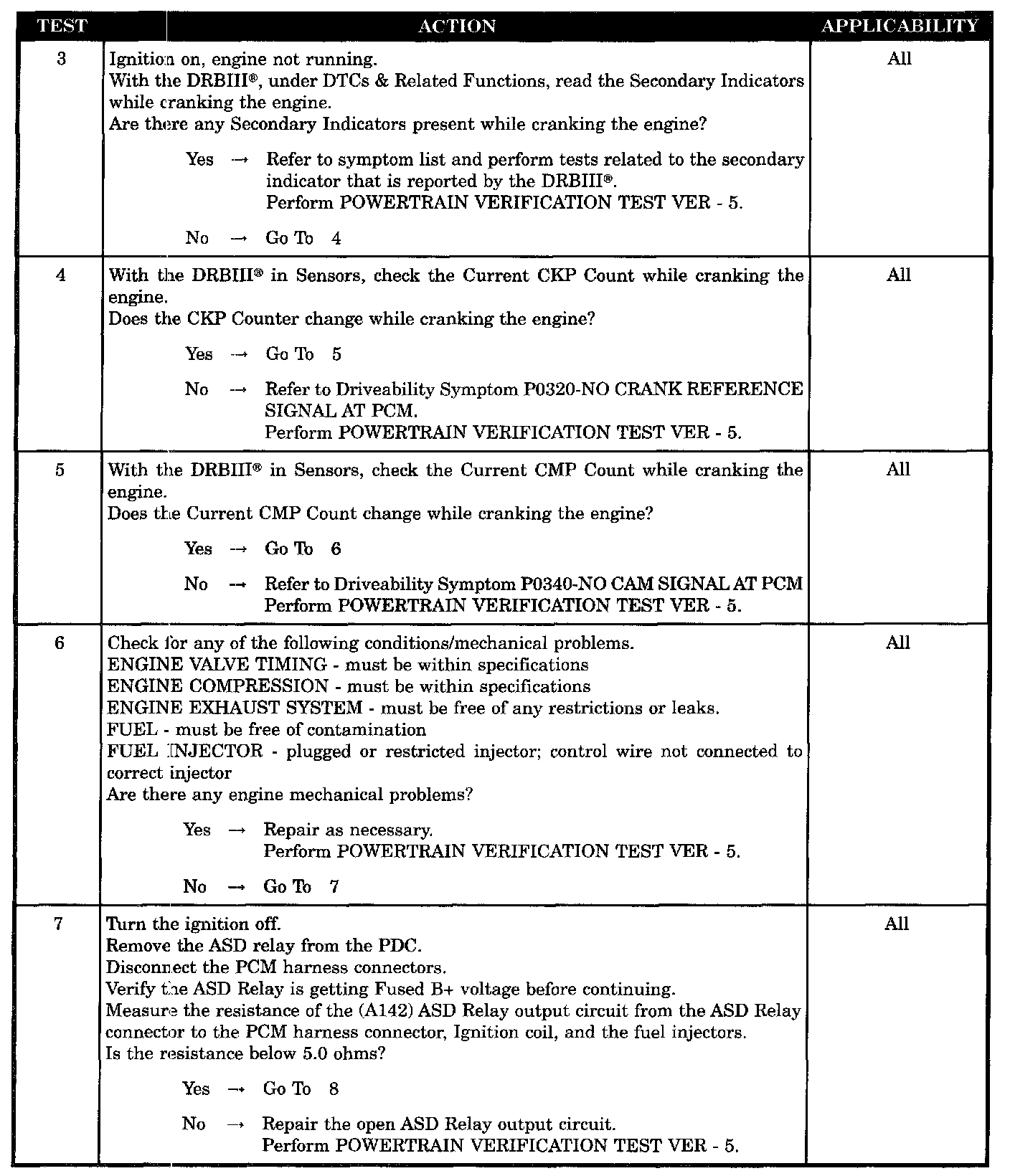

Test 3 - 7:

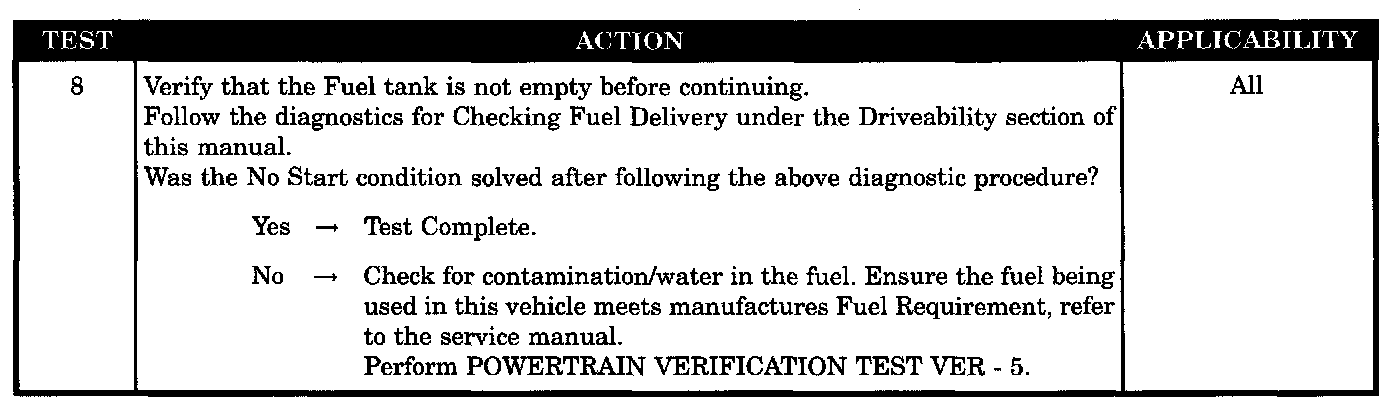

Test 8:
SYMPTOM ENGINE CRANKS DOES NOT START
POSSIBLE CAUSES -
No start pre-test
-
Powertrain fuses open
-
Secondary indicators present
-
No
CKP sensor signal when cranking engine
-
No
CMP sensor signal when cranking engine
-
Engine mechanical problem
-
(A142)
ASD relay output circuit open
-
Fuel contamination
