No Crank Condition
Test 1 - 3:

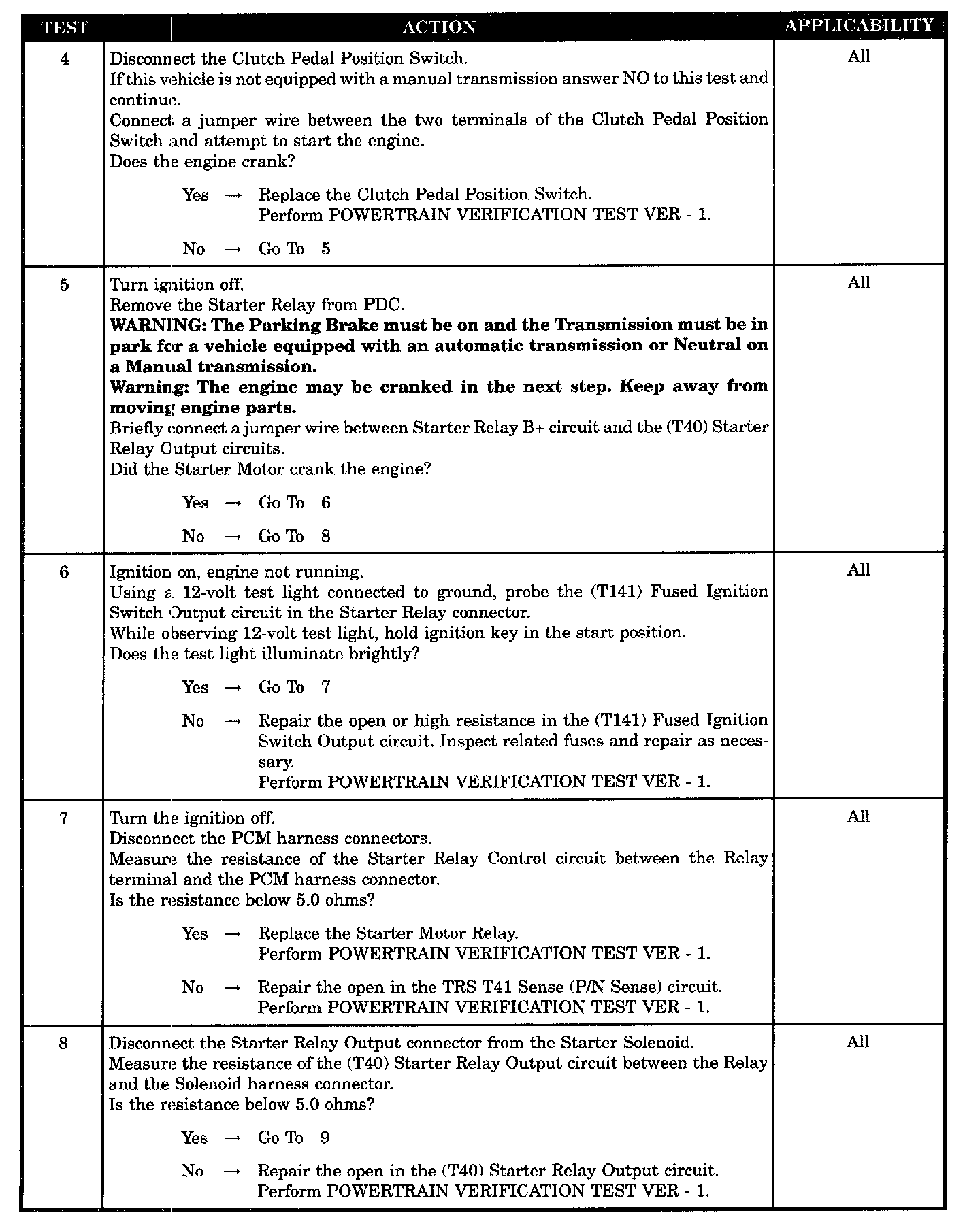

Test 4 - 8:

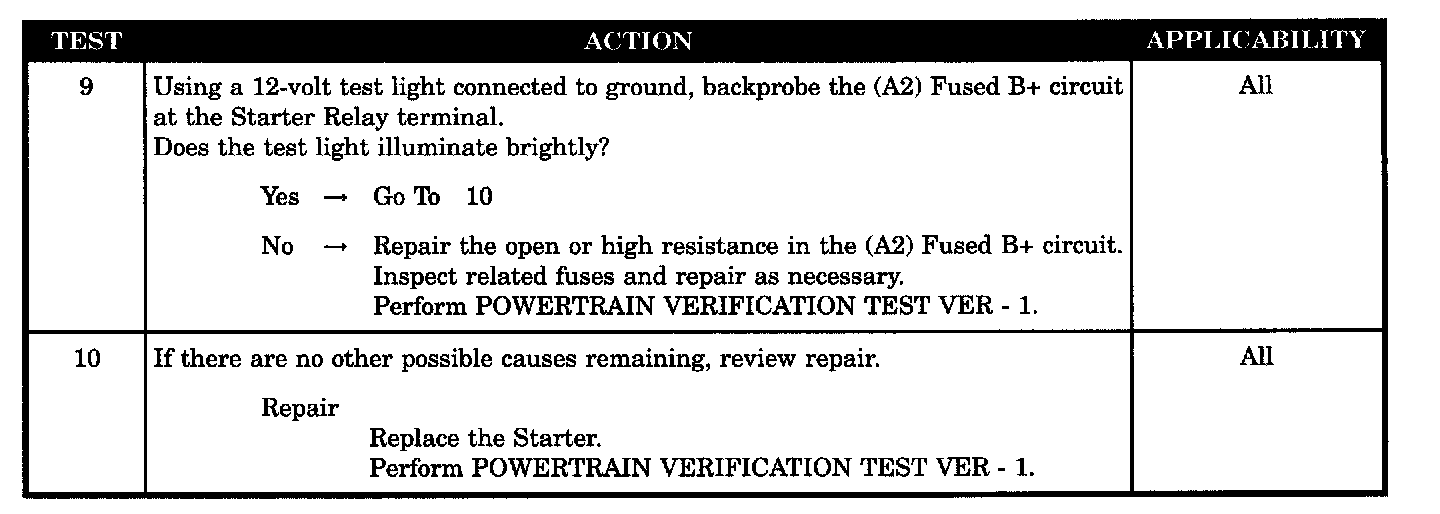

Test 9 - 10:
SYMPTOM NO CRANK CONDITION
POSSIBLE CAUSES -
Mechanical condition
-
Transmission range sensor
-
Battery circuit resistance too high
-
Clutch pedal position switch
-
(T141) fused
ignition switch output circuit open
-
TRS T41 sense (P/N sense) circuit open
-
(T40) starter relay output circuit open
-
(A2) fused B+ circuit open
-
Starter
-
Starter relay
