Start and Stall Condition

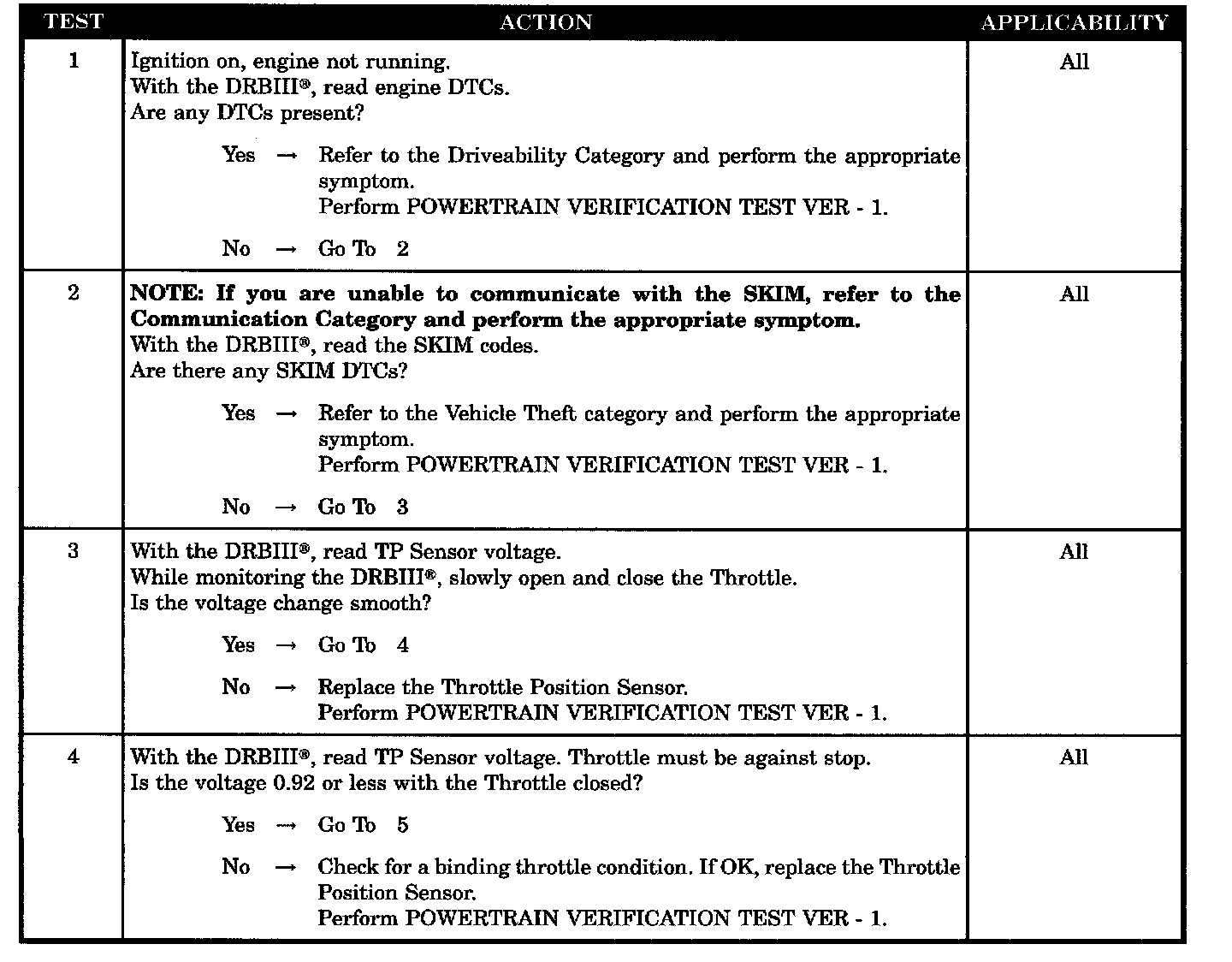

Test 1 - 4:

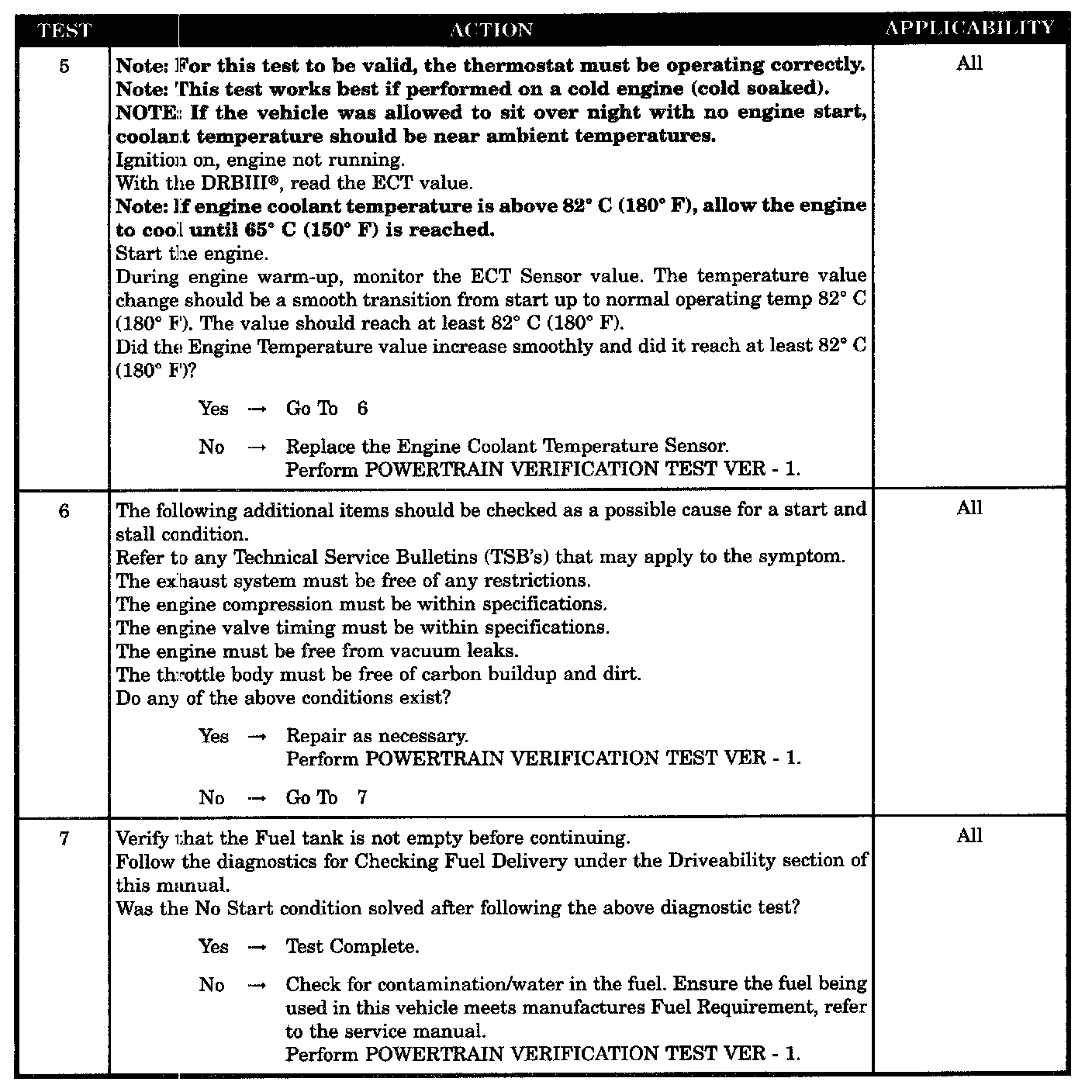

Test 5 - 7:






SYMPTOM
START AND STALL CONDITION

POSSIBLE CAUSES
- Checking DTCs
- Checking SKIM DTCs
- TP sensor sweep
- TP sensor voltage greater than 0.92 volts with throttle closed
- ECT sensor operation
- Other possible causes for start & stall
- Fuel contamination
