Clutch Switch: Description and Operation
CLUTCH PEDAL POSITION SWITCHDESCRIPTION

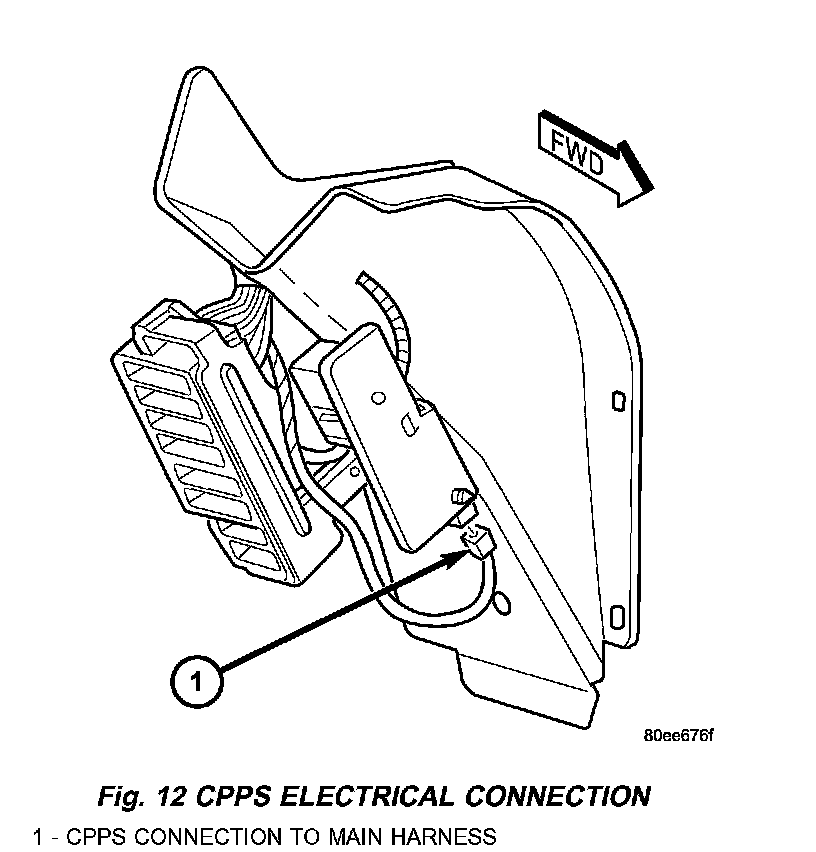

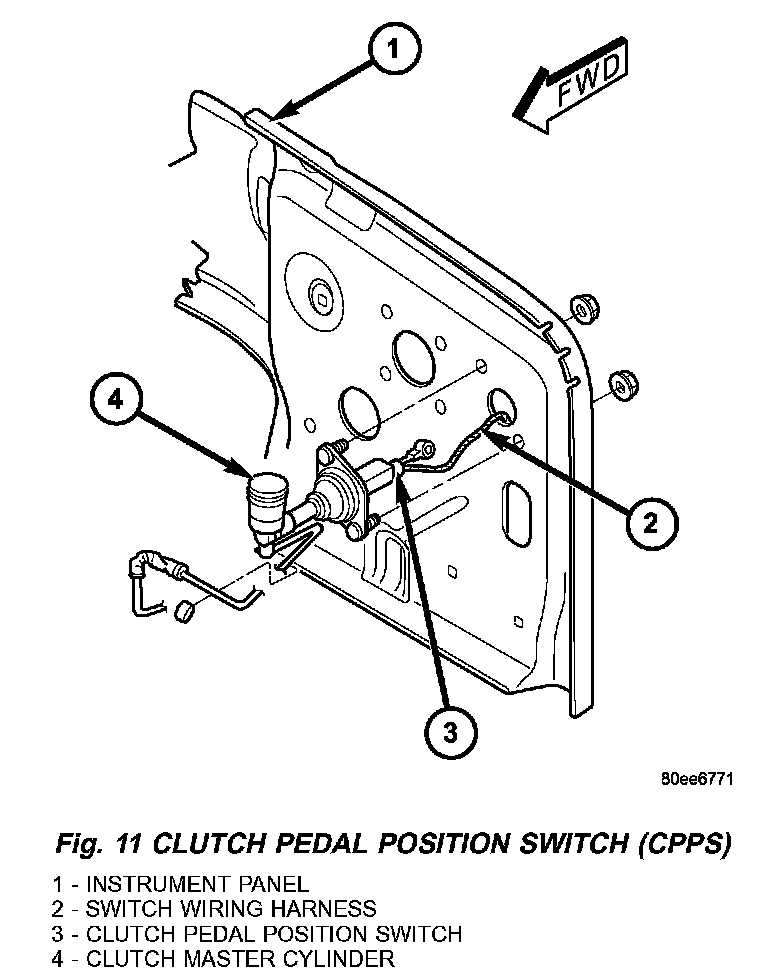

The Clutch Pedal Position Switch (CPPS) is located under the instrument panel. It is attached to the clutch master cylinder push rod (Fig. 11). The wiring harness connection for the switch is made inside of the vehicle under the left side of the instrument panel (Fig. 12).
OPERATION
The clutch pedal position switch is used to prevent starter motor engagement unless the clutch pedal is depressed. An input from this switch is also used to either shut down and/or prevent operation of the speed control system when the clutch pedal is depressed.
