Rear Check Valve Replacement

REMOVAL

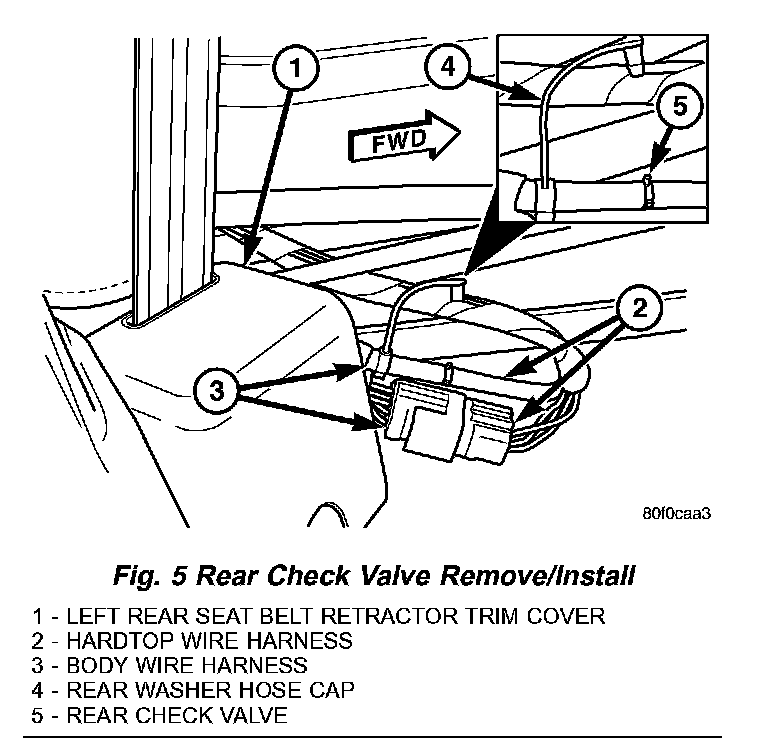

Fig. 5 Rear Check Valve Remove/Install:

1. Disconnect the hardtop wire harness half of the washer supply hose from the barbed nipple of the rear check valve.
2. Disconnect the body wire harness half of the washer supply hose from the other barbed nipple of the rear check valve.
3. Remove the rear check valve from the left rear corner of the vehicle near the belt line.

INSTALLATION
1. Position the rear check valve into the left rear corner of the vehicle near the belt line.

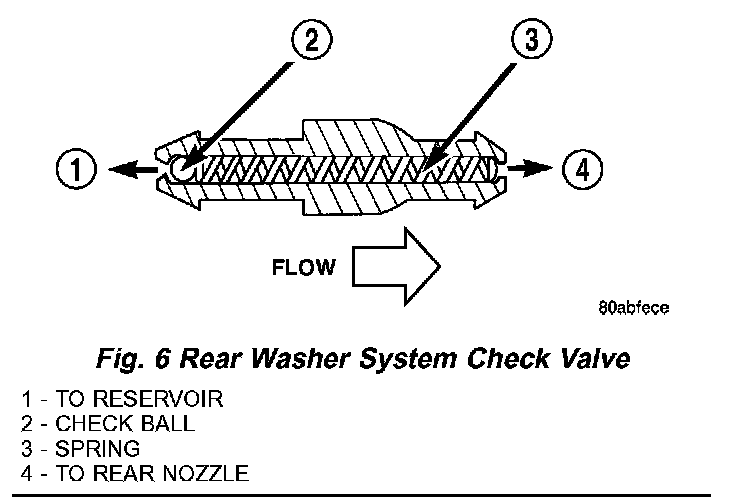

Fig. 6 Rear Washer System Check Valve:

2. With the tapered end of the check valve pointed in the direction of the system flow, reconnect the body wire harness half of the washer supply hose to the barbed nipple of the rear check valve.
3. Reconnect the hardtop wire harness half of the washer supply hose to the other barbed nipple of the rear check valve
