Wiper Arm: Locations

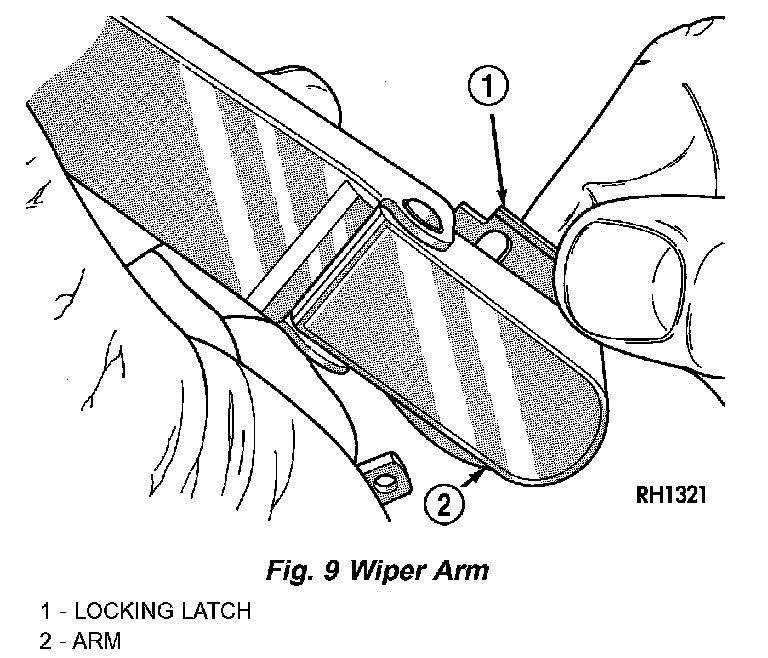

Fig.9 Wiper Arm:

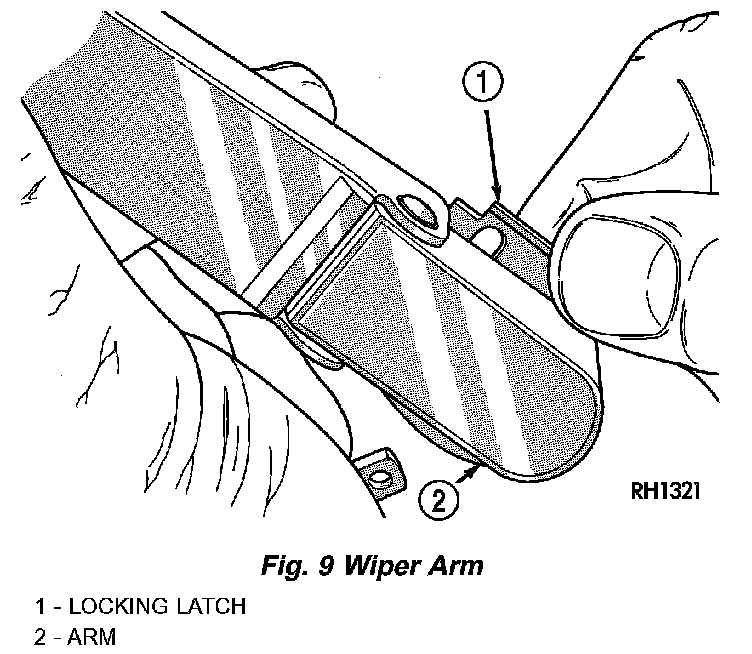

Fig.9 Wiper Arm:

FRONT WIPER ARM
The front wiper arms are the rigid members located between the wiper pivots that protrude from the cowl plenum cover/grille panel near the base of the windshield and the wiper blades on the windshield glass.

REAR WIPER ARM
The rear wiper arm is the rigid member located between the rear wiper motor output shaft that protrudes from the outer liftglass near the base of the right liftglass hinge and the wiper blade on the lift- glass.
