Wiper Motor: Locations

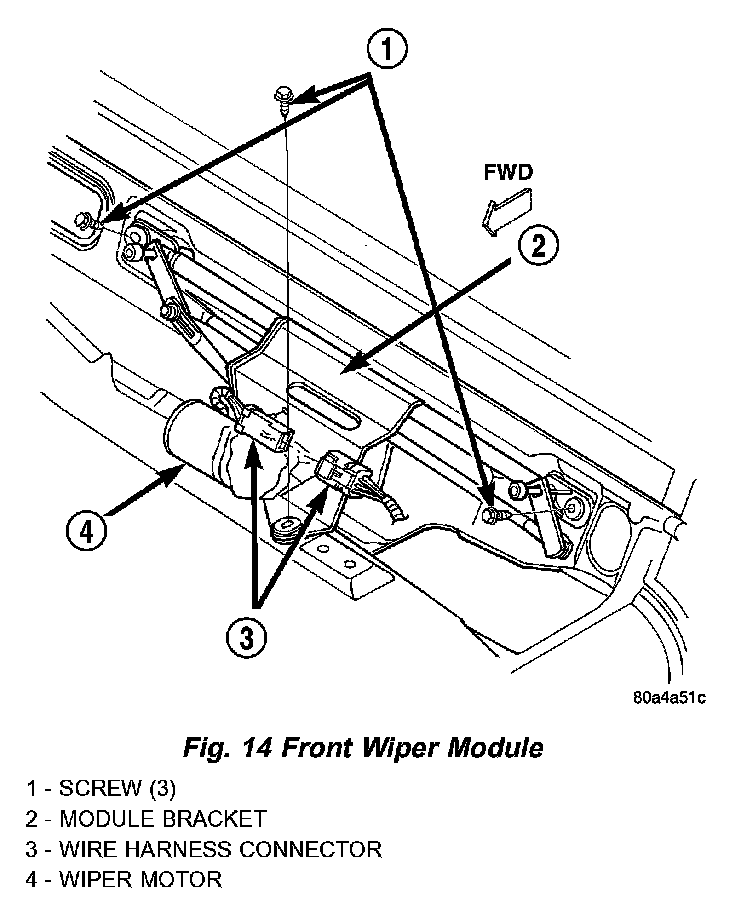

Fig.14 Front Wiper Module:
The front wiper module is secured with screws to the cowl top panel and concealed within the cowl plenum area beneath the cowl plenum cover/grille panel.

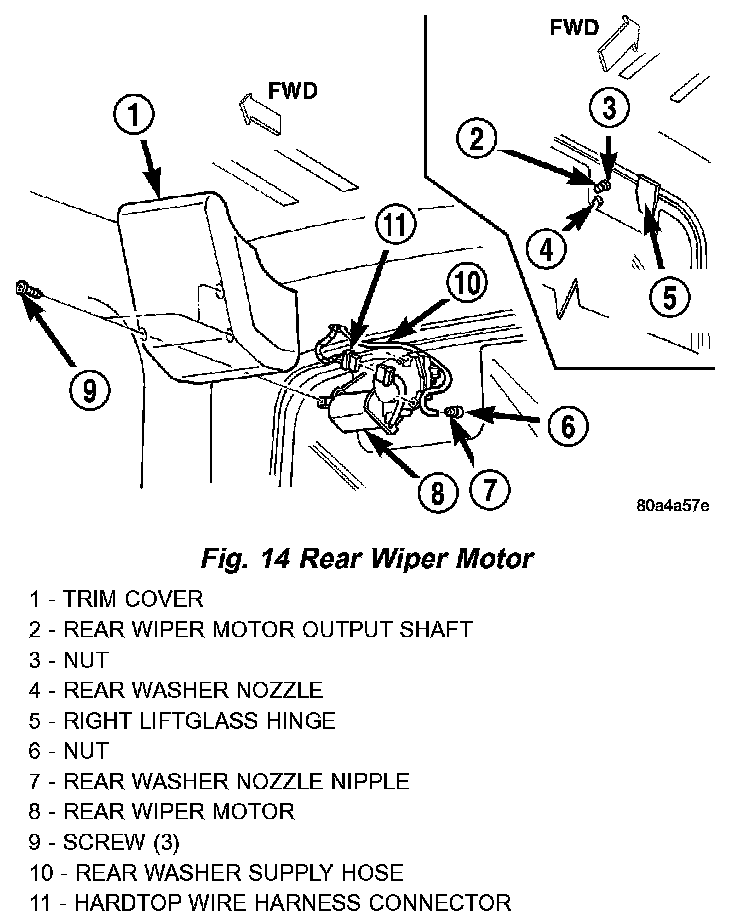

Fig.14 Rear Wiper Motor:
The rear wiper motor is secured on the inside of the liftglass with a slotted bracket that fits onto a grommet under the right liftglass hinge mounting nut.
