Control Assembly, HVAC
Control Assembly, HVAC

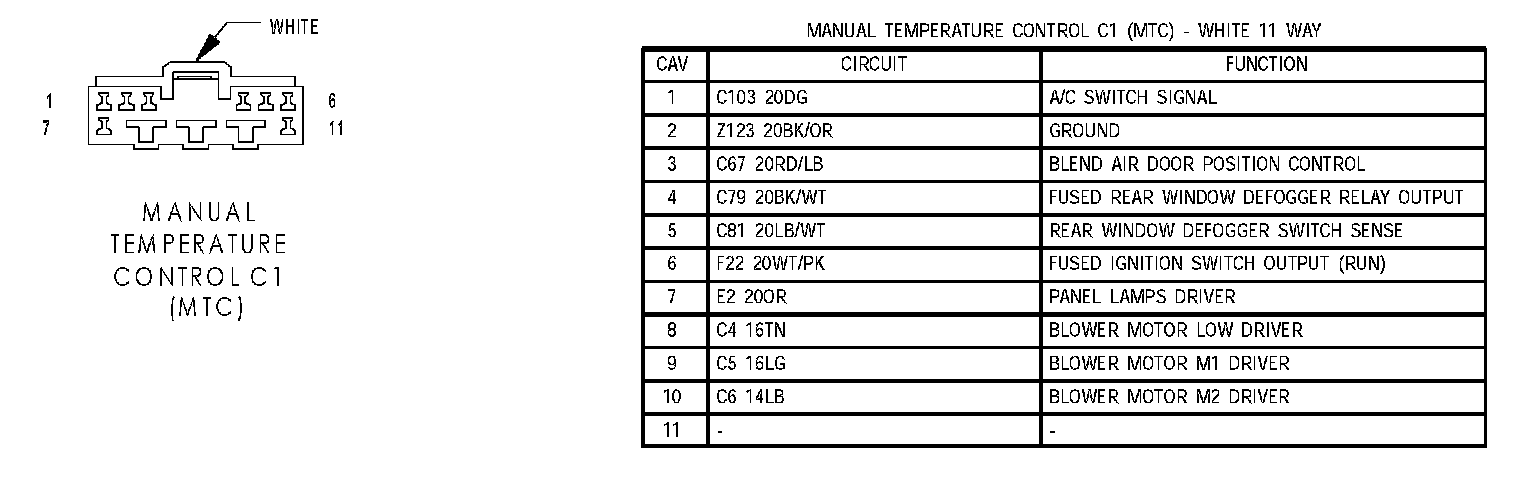

Manual Temperature Control C1 (MTC):

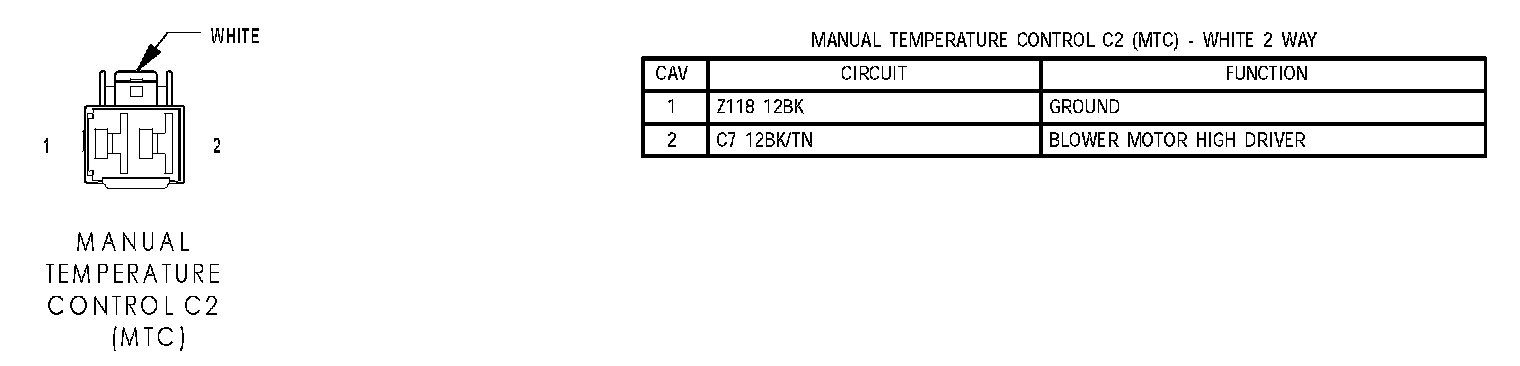

Manual Temperature Control C2 (MTC):
