Door Switch
Door Switch

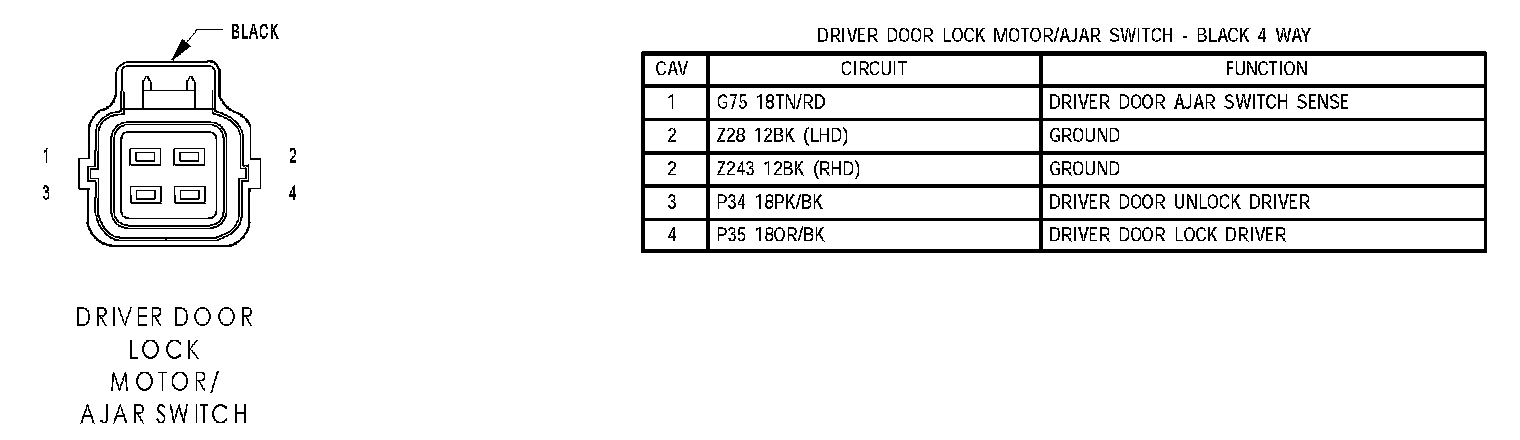

Driver Door Lock Motor/Ajar Switch:

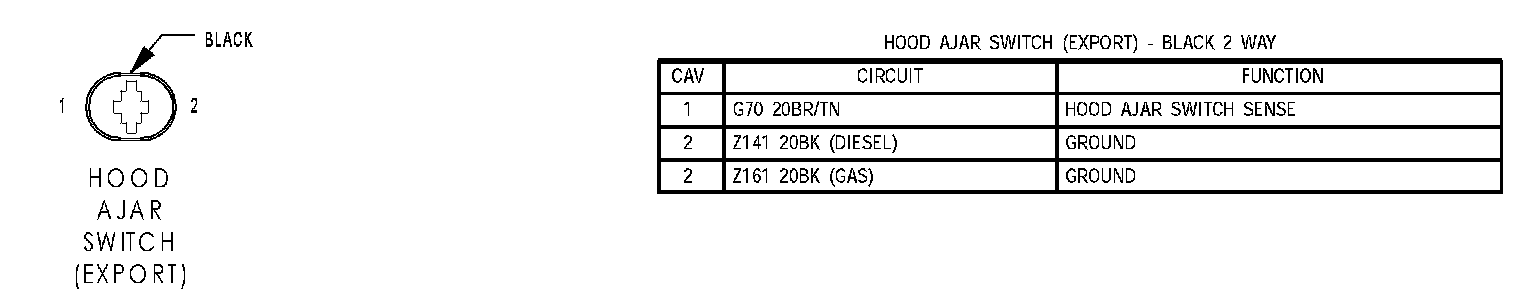

Hood Ajar Switch (Export):

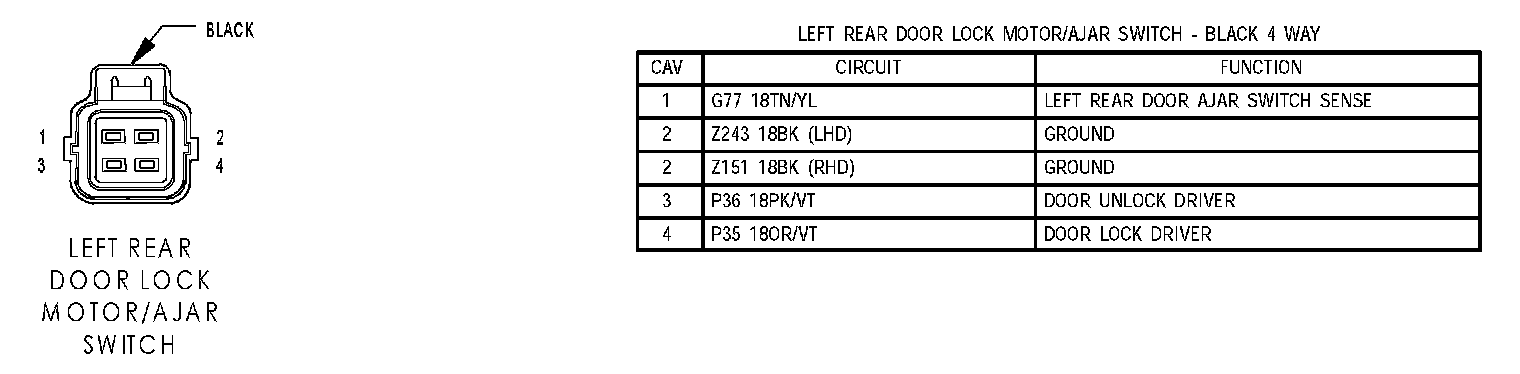

Left Rear Door Lock Motor/Ajar Switch:

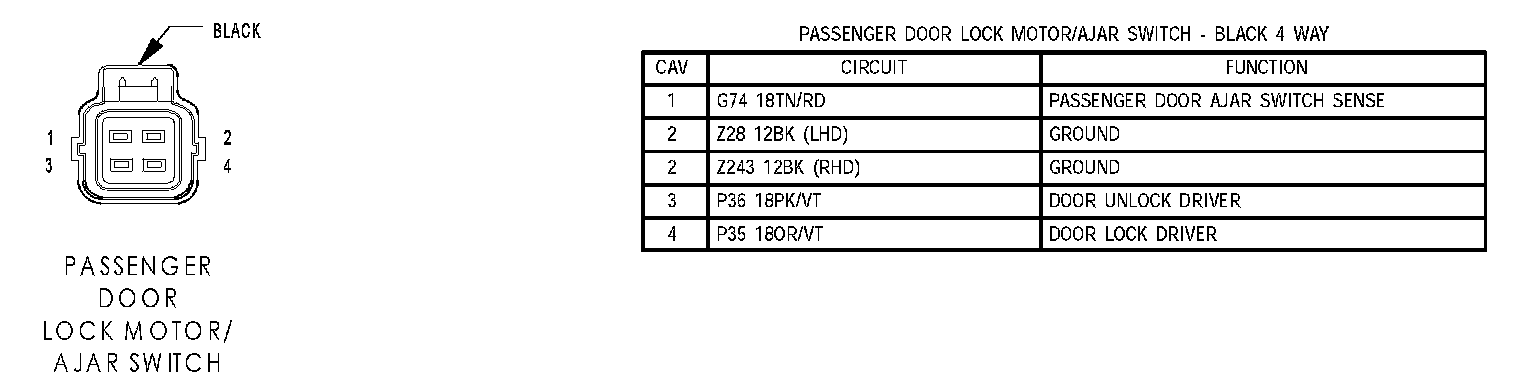

Passenger Door Lock Motor/Ajar Switch:

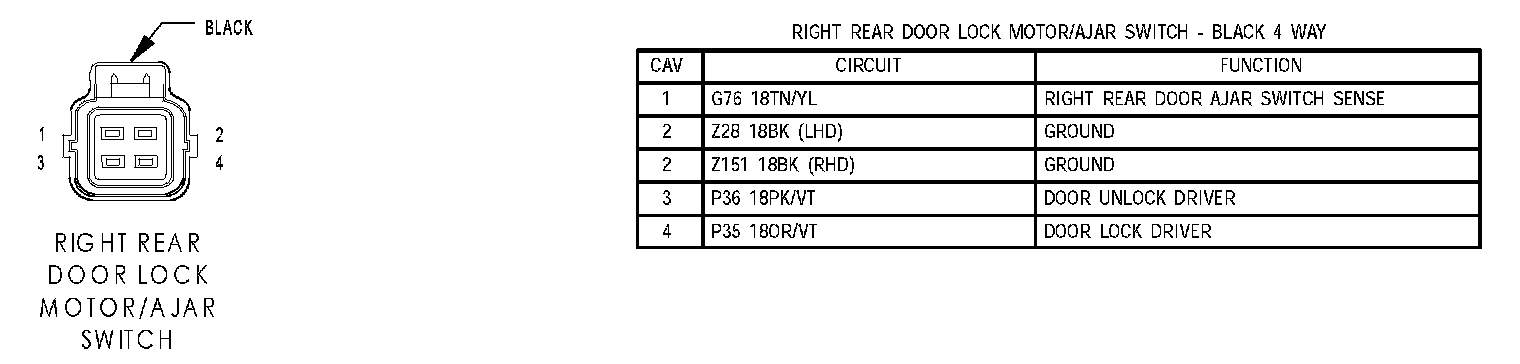

Right Rear Doorlock Motor/Ajar Switch:
