Impact Sensor

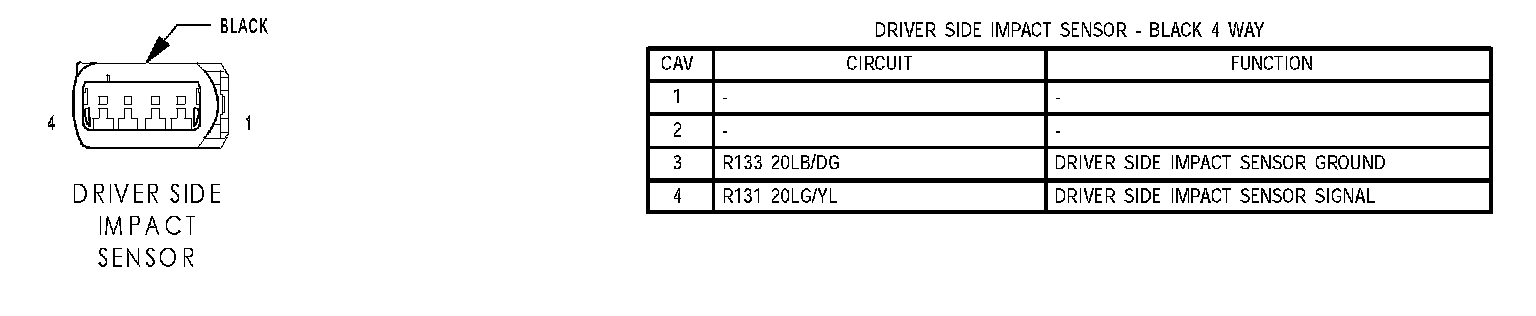

Driver Side Impact Sensor:

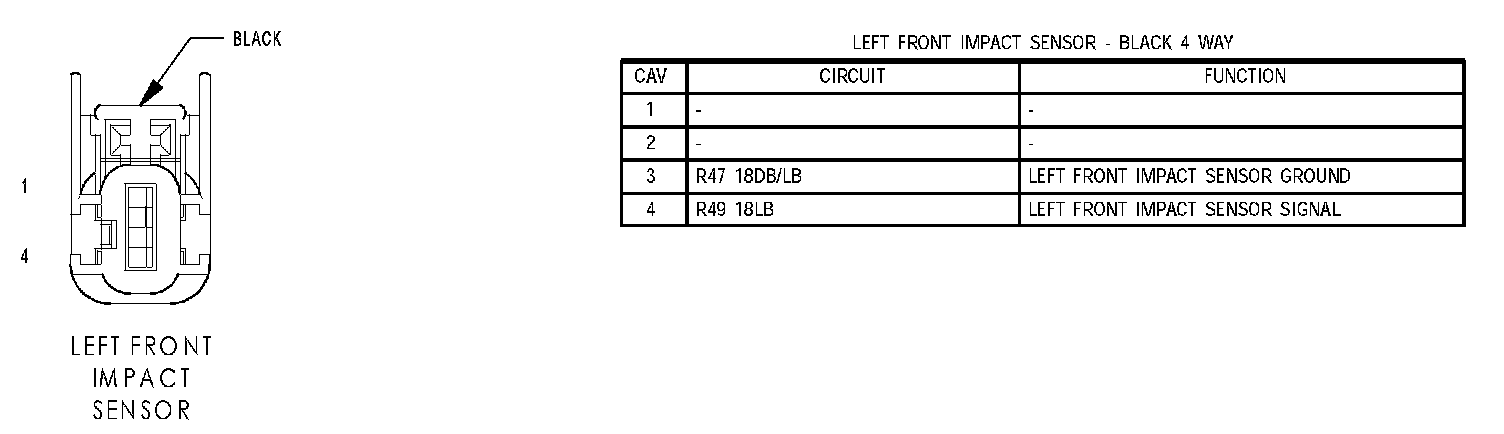

Left Front Impact Sensor:

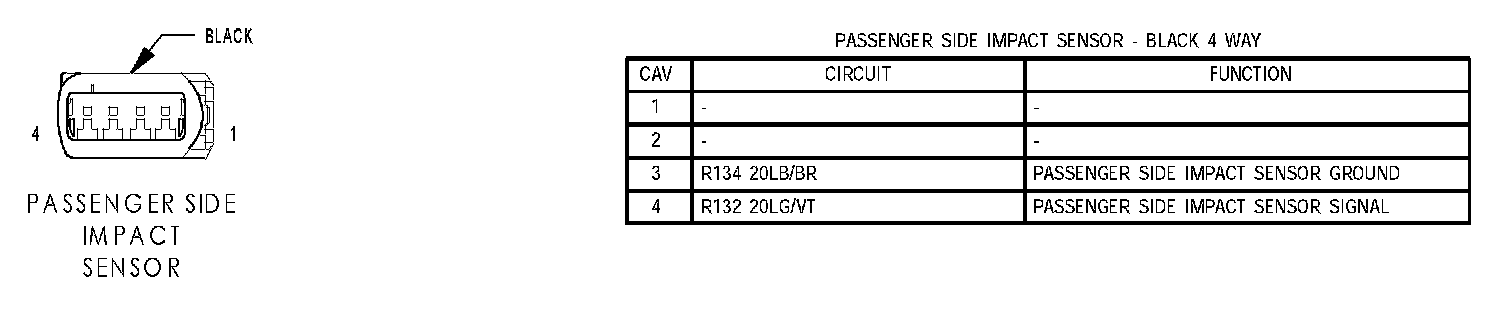

Passenger Side Impact Sensor:

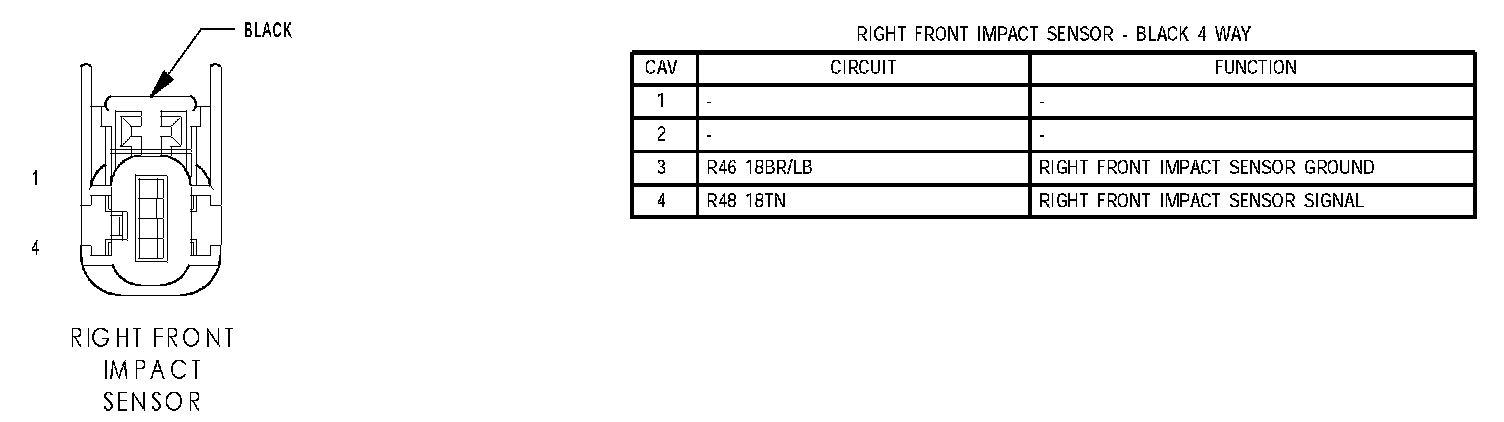

Right Front Impact Sensor:
