Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2004
>>
Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pedal Positioning Sensor
Pedal Positioning Sensor

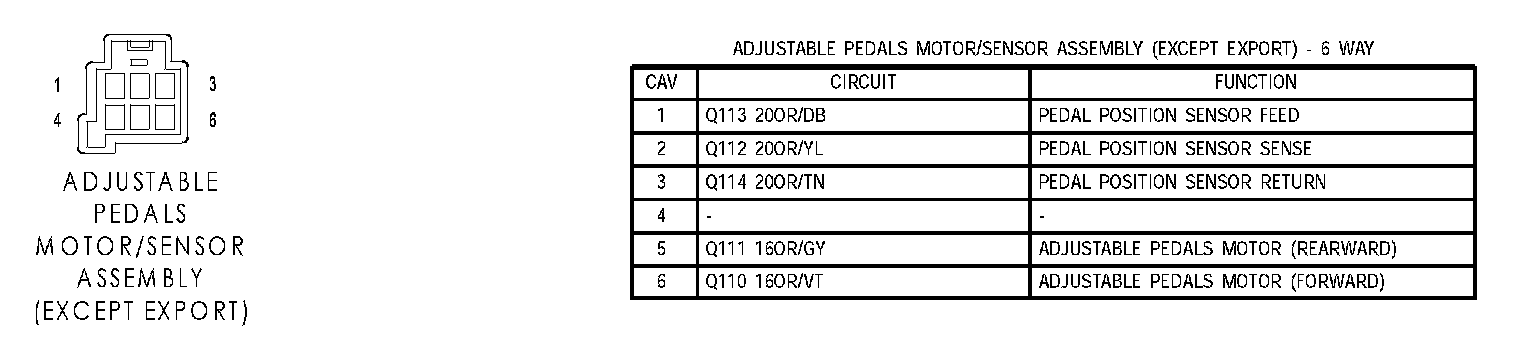

Adjustable Pedals Motor/Sensor Assembly(Except Export):
