Trunk / Liftgate Switch

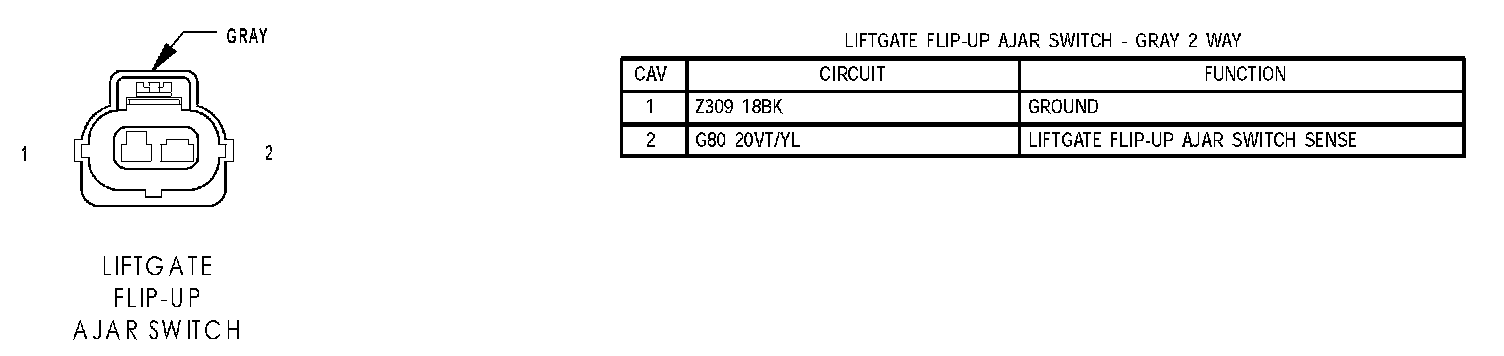

Liftgate Flip-up Ajar Switch:

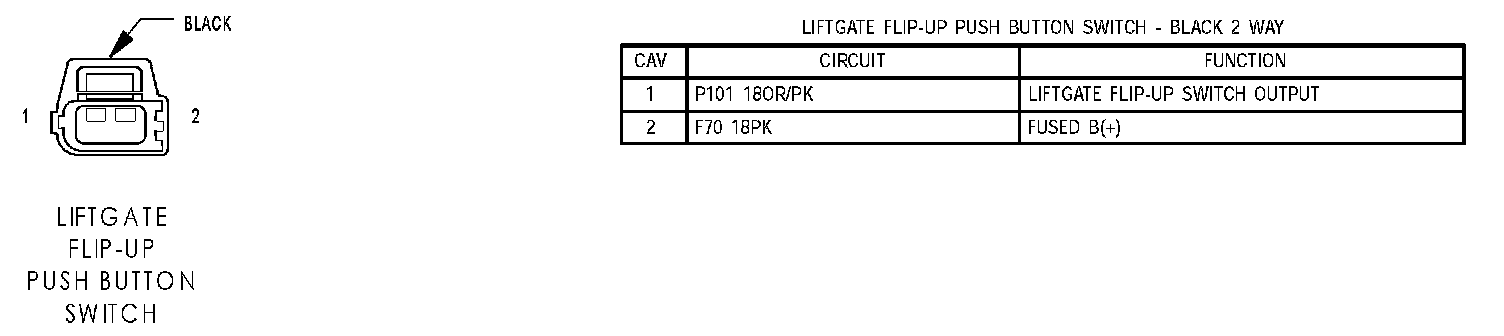

Liftgate Flip-up Push Button Switch:

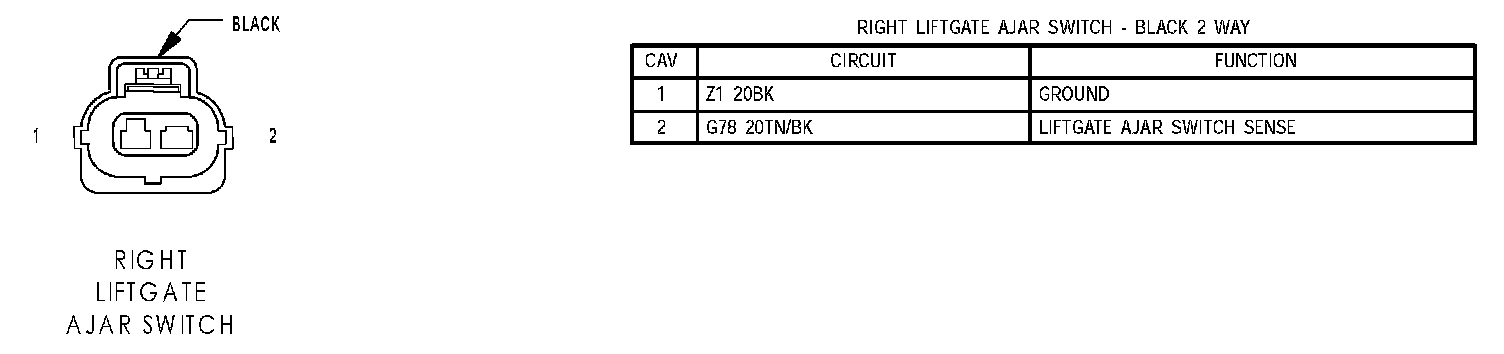

Right Liftgate Ajar Switch:
