Connector Location Index

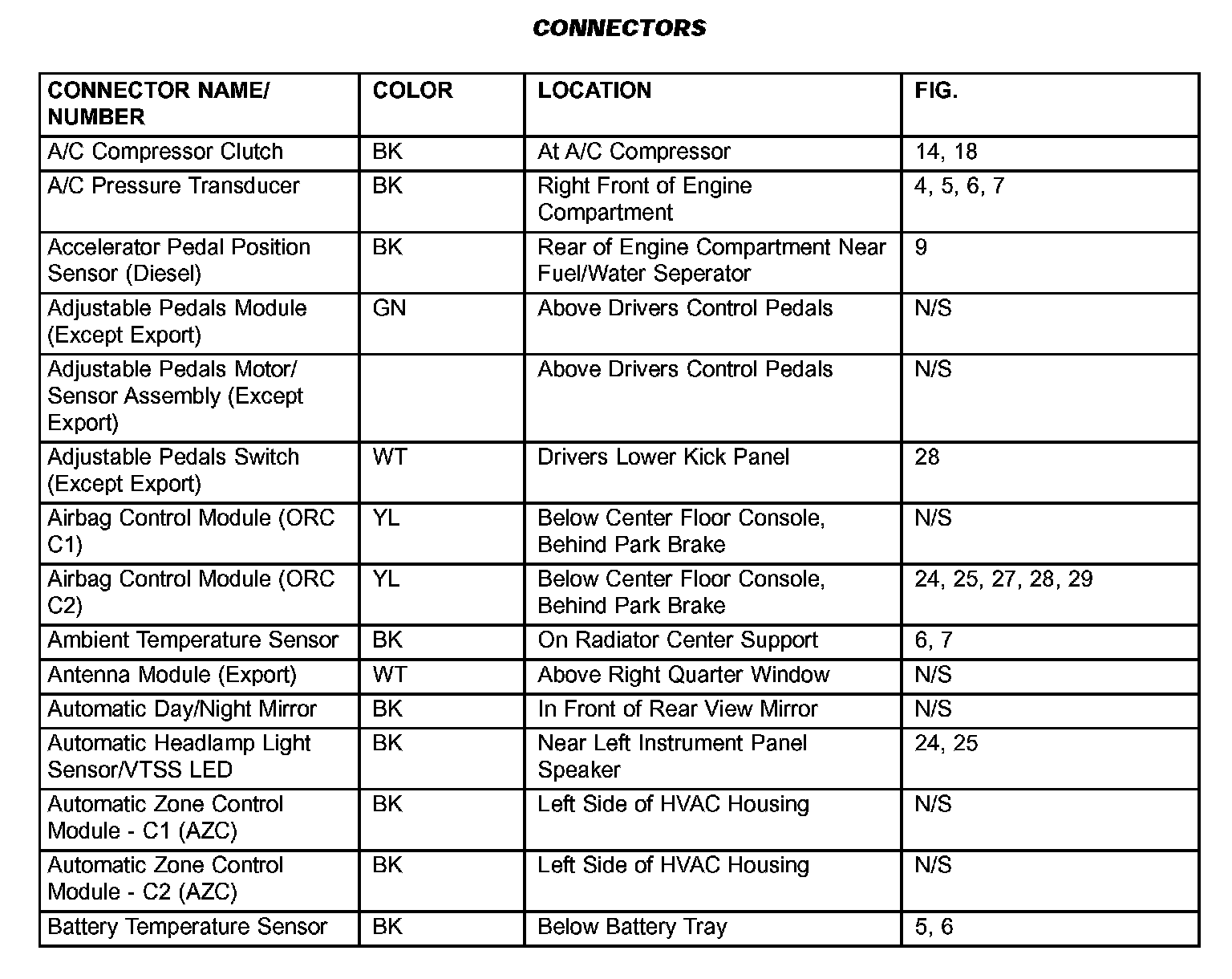

Connectors A/C Compressor Clutch - battery Temperature:
PLEASE NOTE: If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.
The abbreviation
T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.
The abbreviation
N/S means Not Shown in the illustrations.

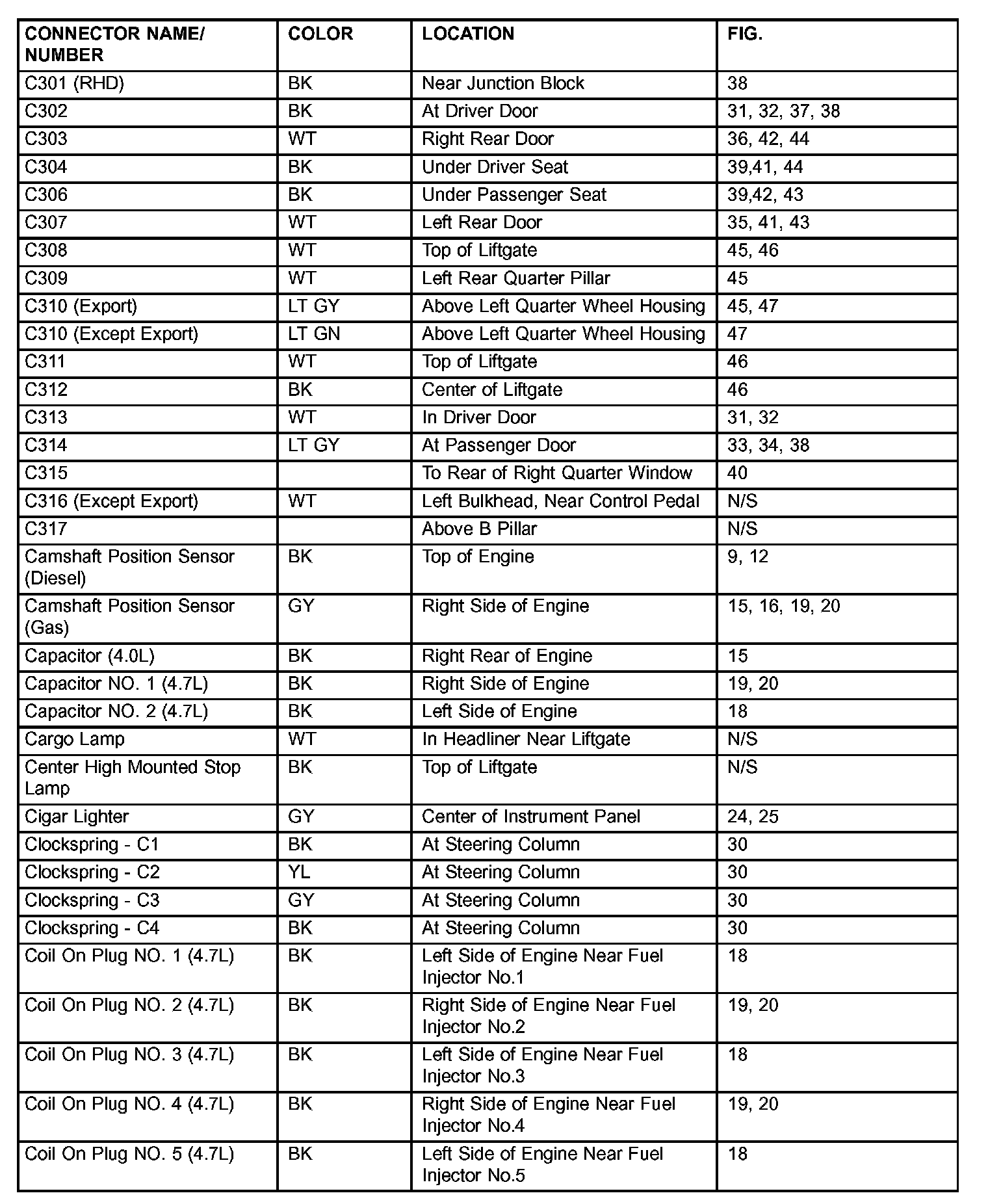

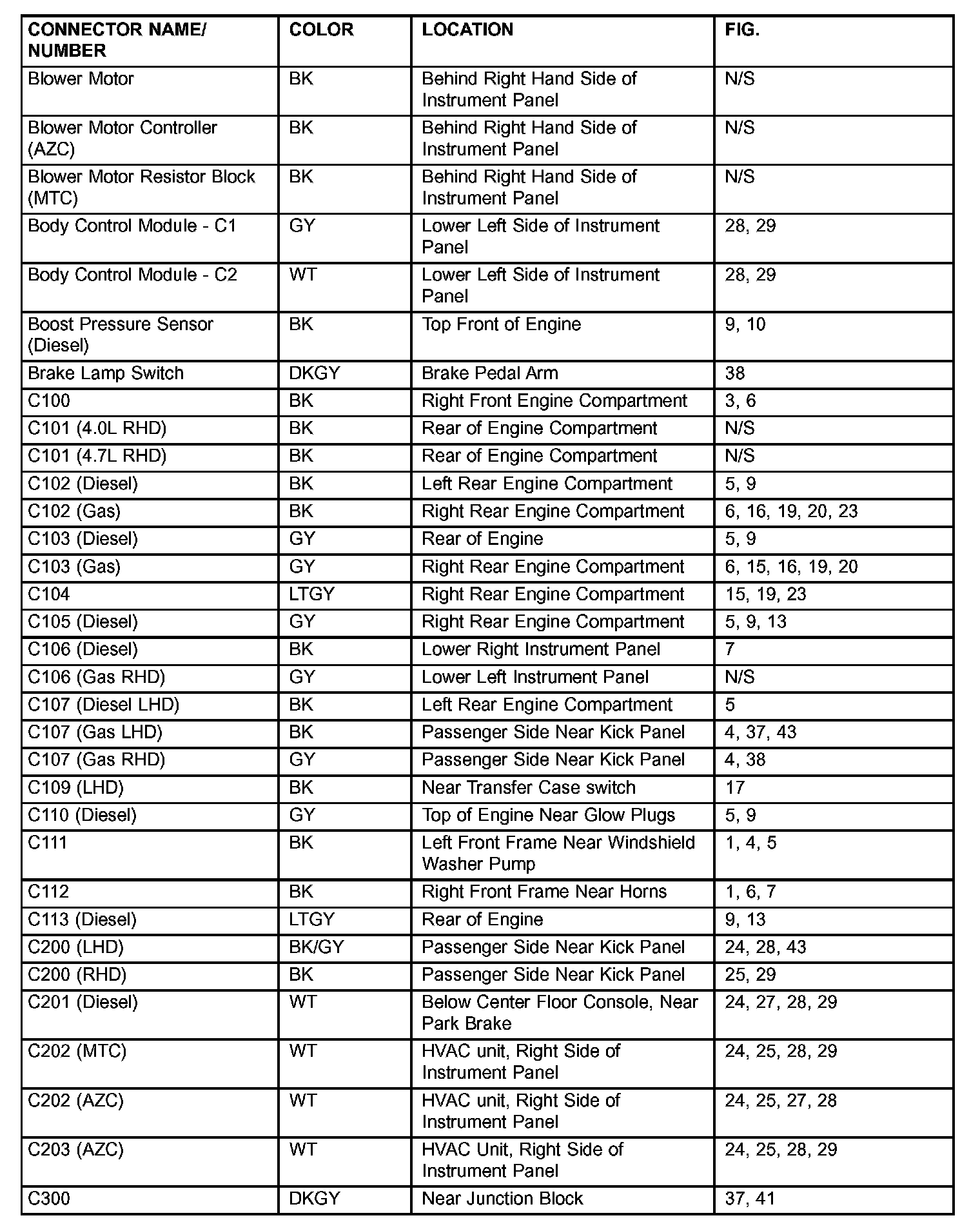

Bl - C300:

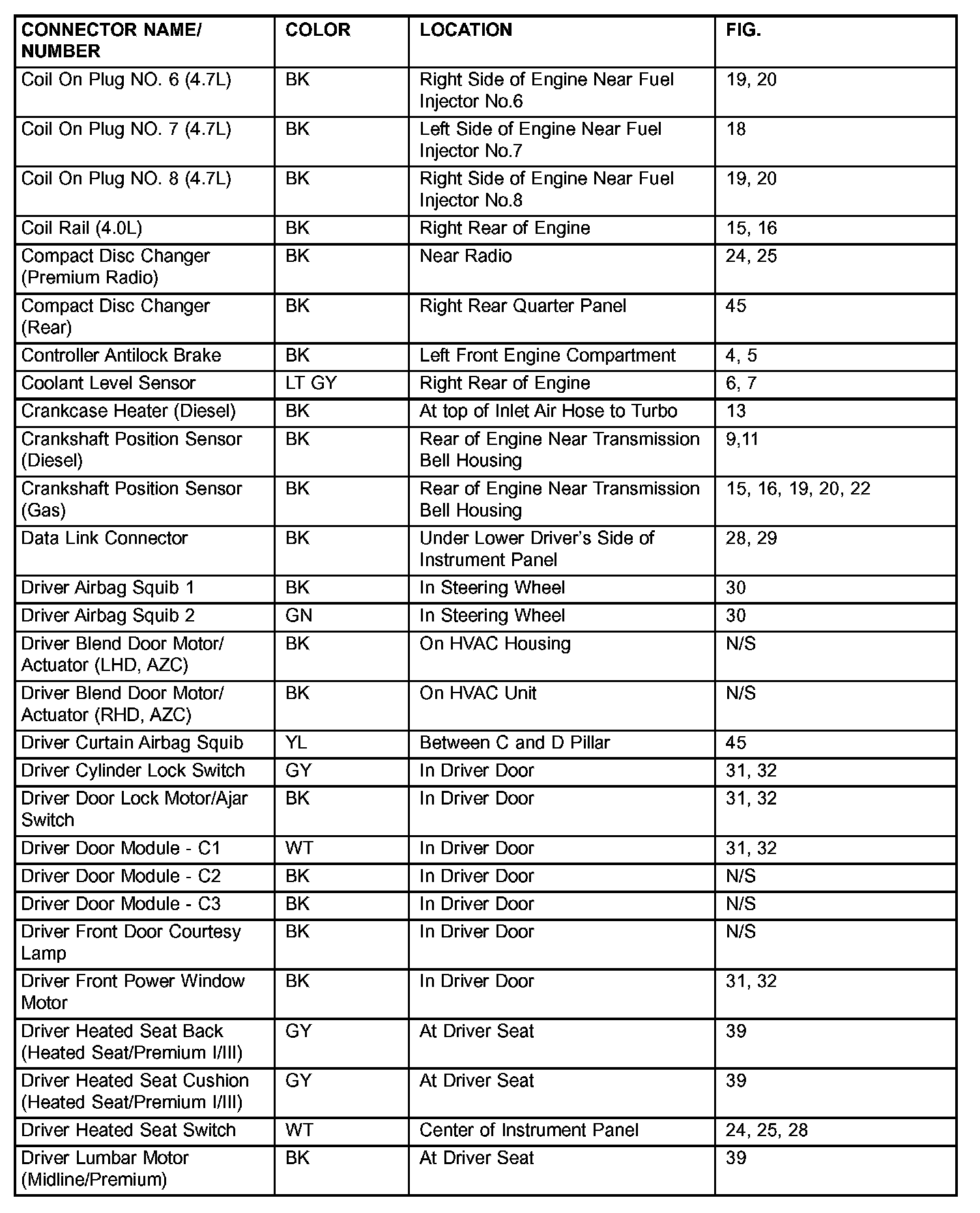

C301 (RHD) - coil:

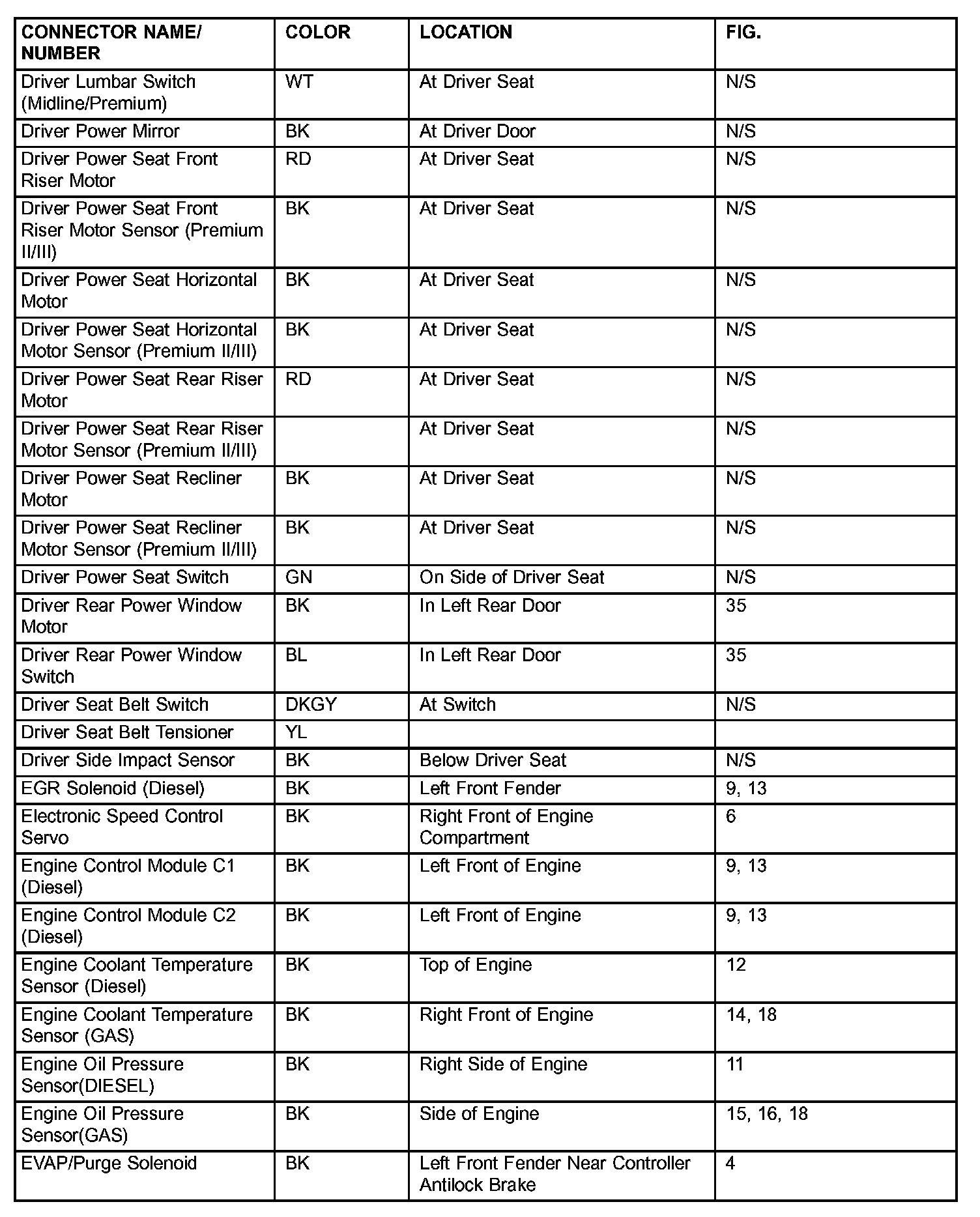

Coil - Driver:

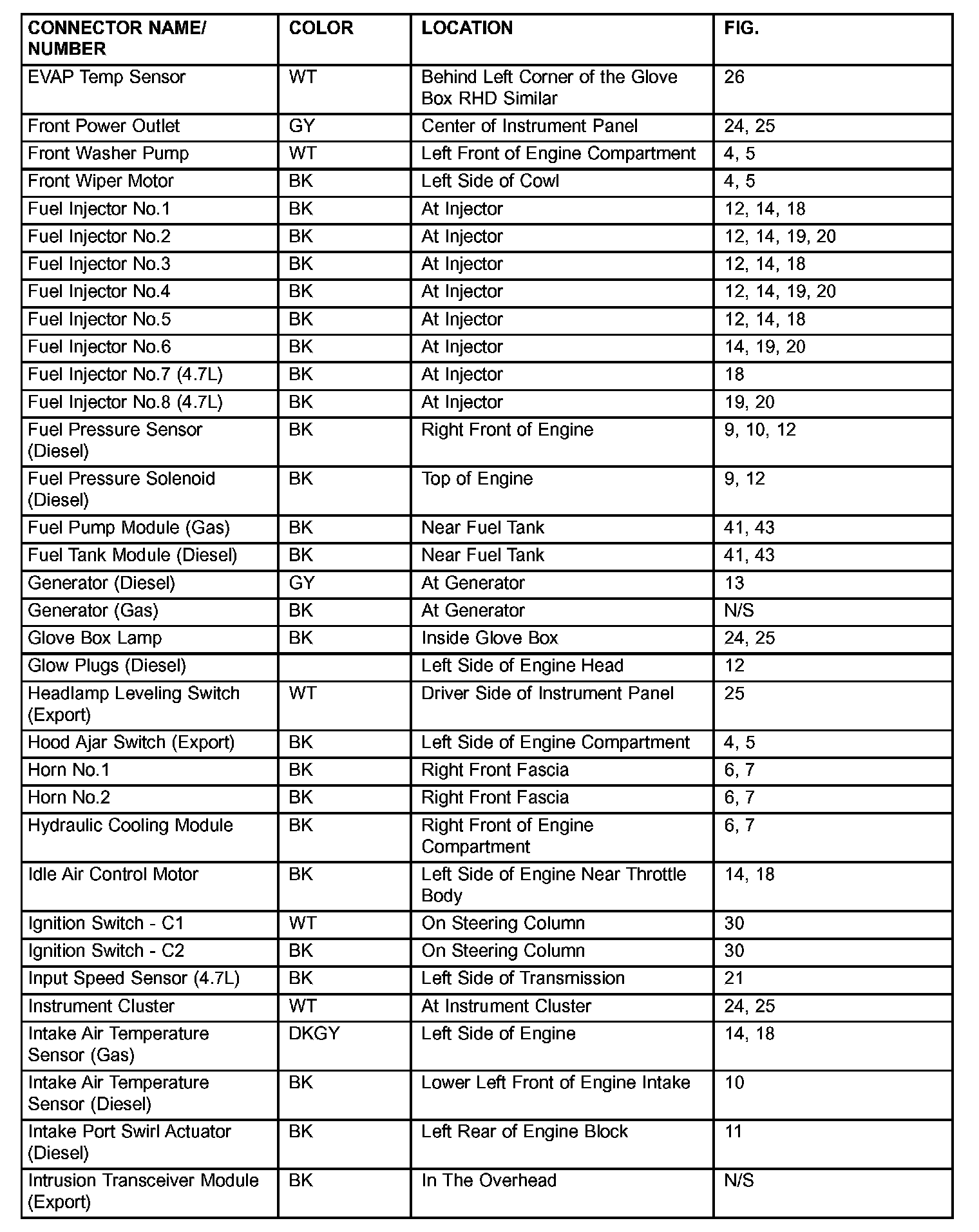

Driver - Evap/Purge:
Evap - intrusion:

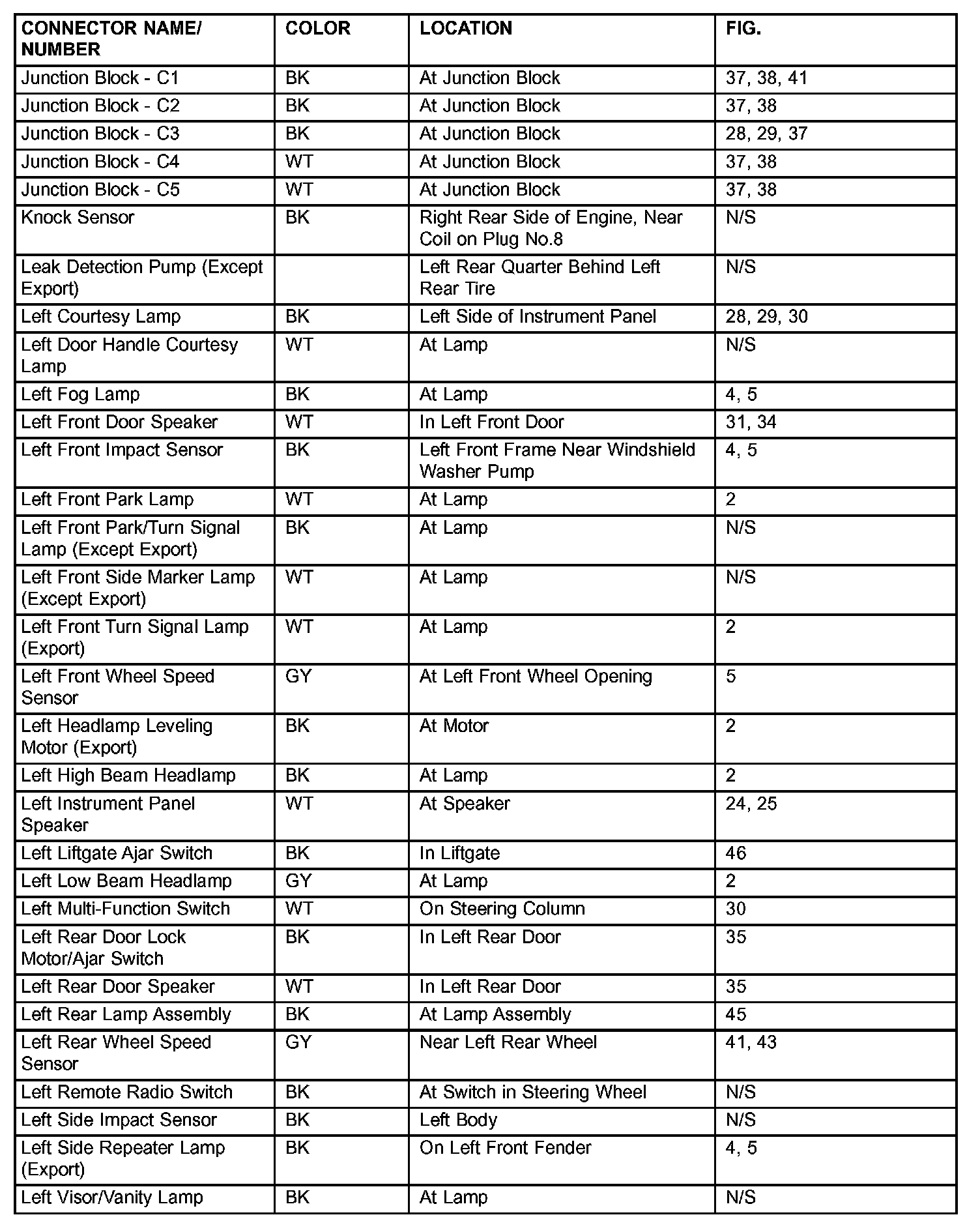

Junction - left Visor/vanity:

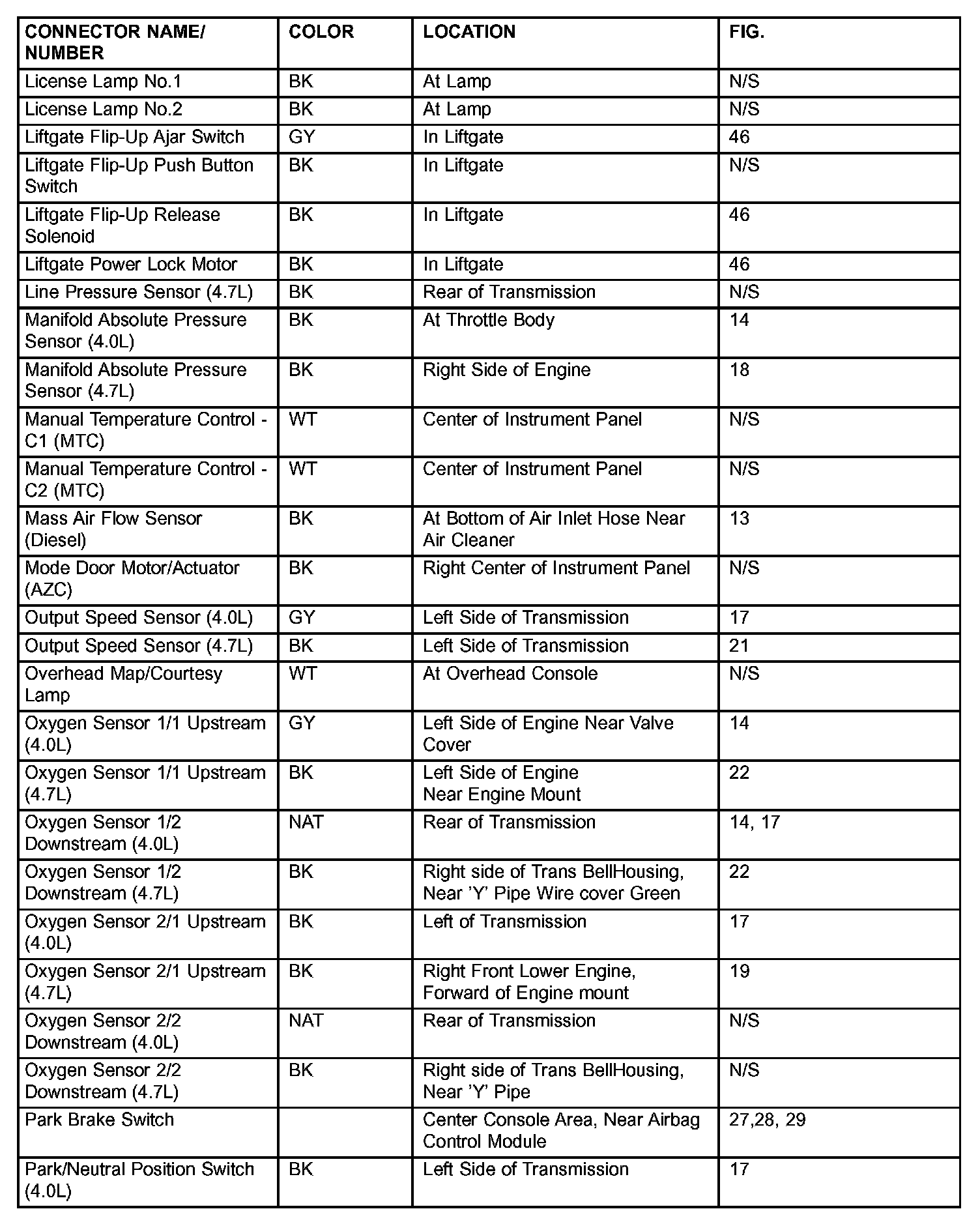

License - park Neutral:

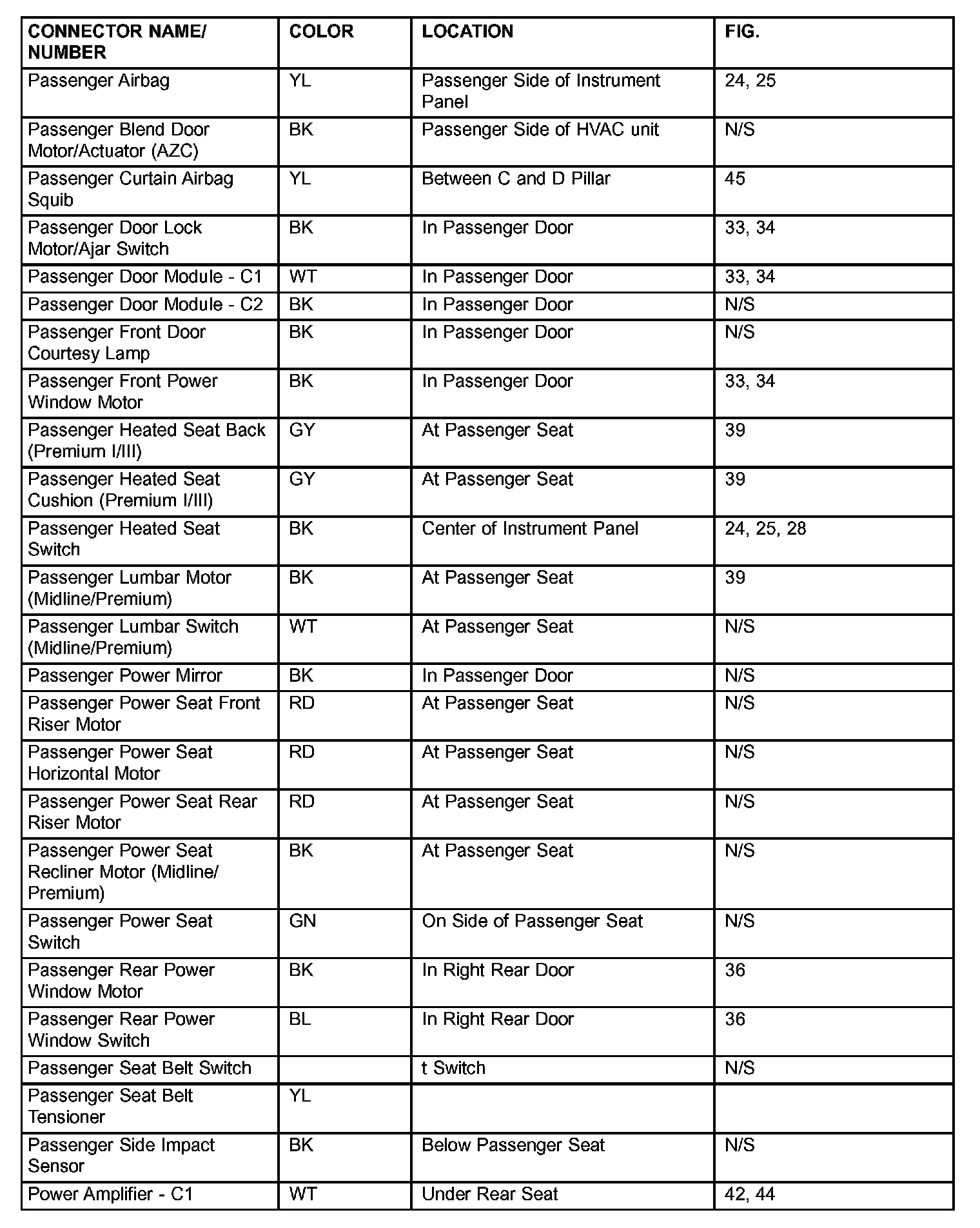

Passenger - power:

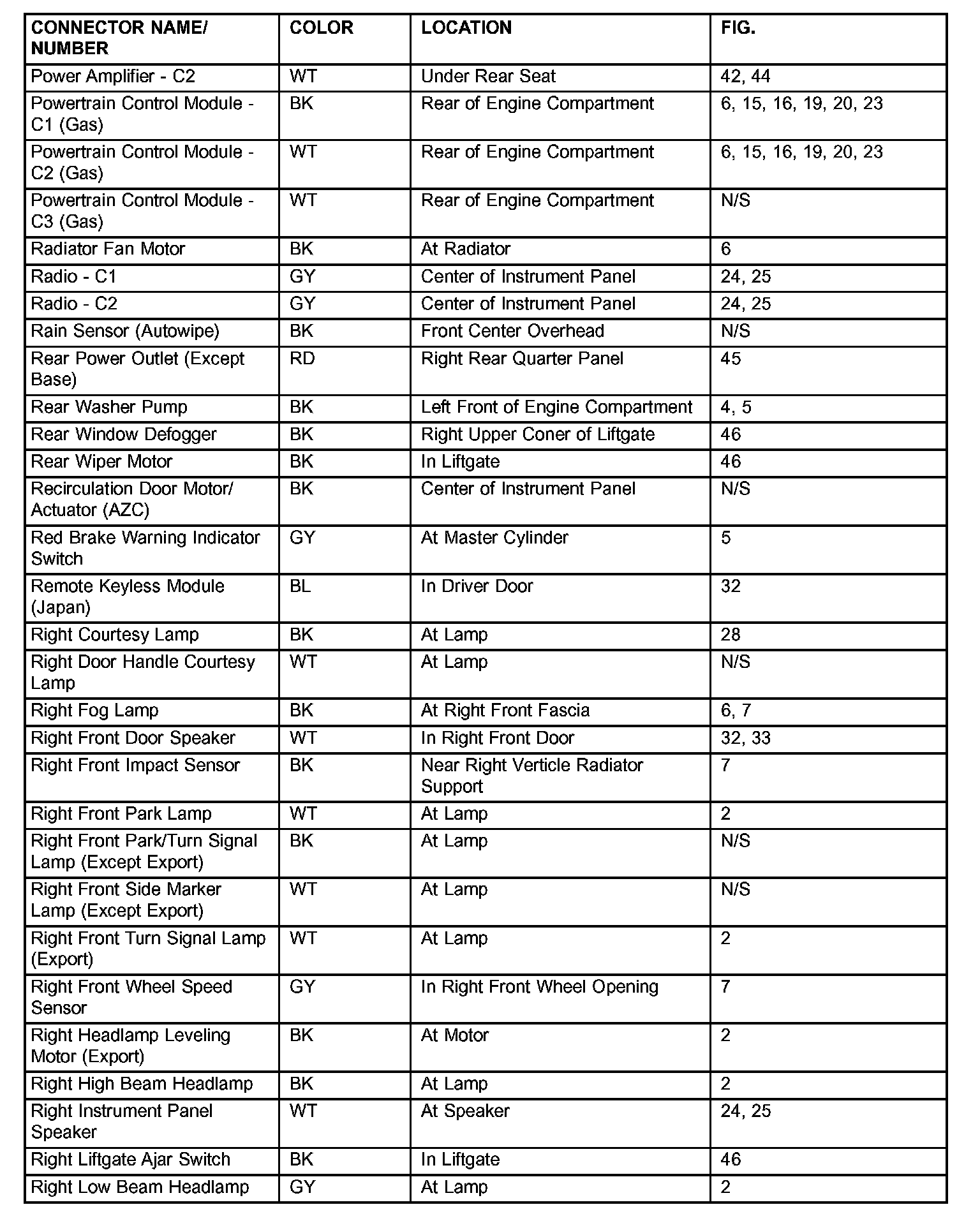

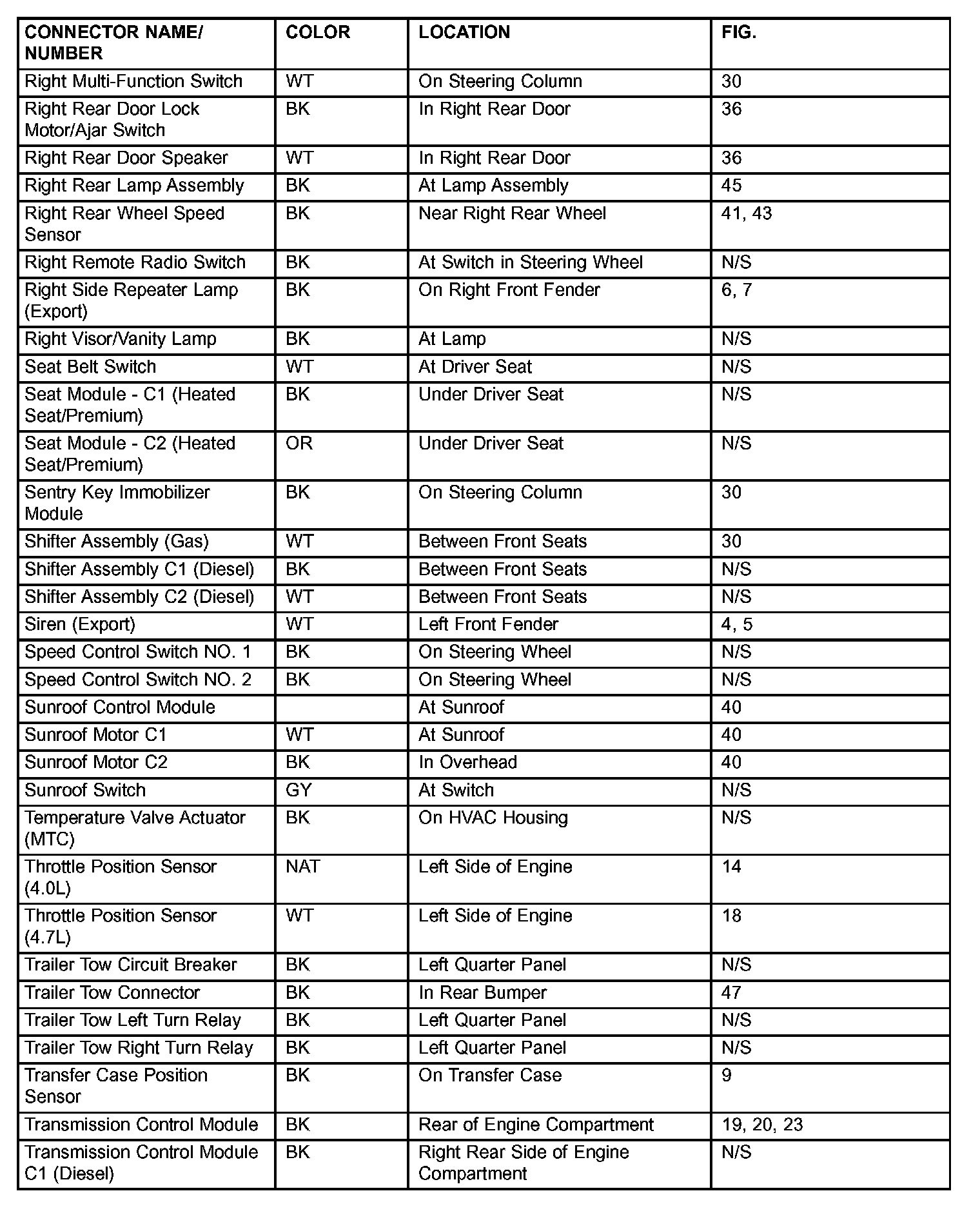

Power - right:

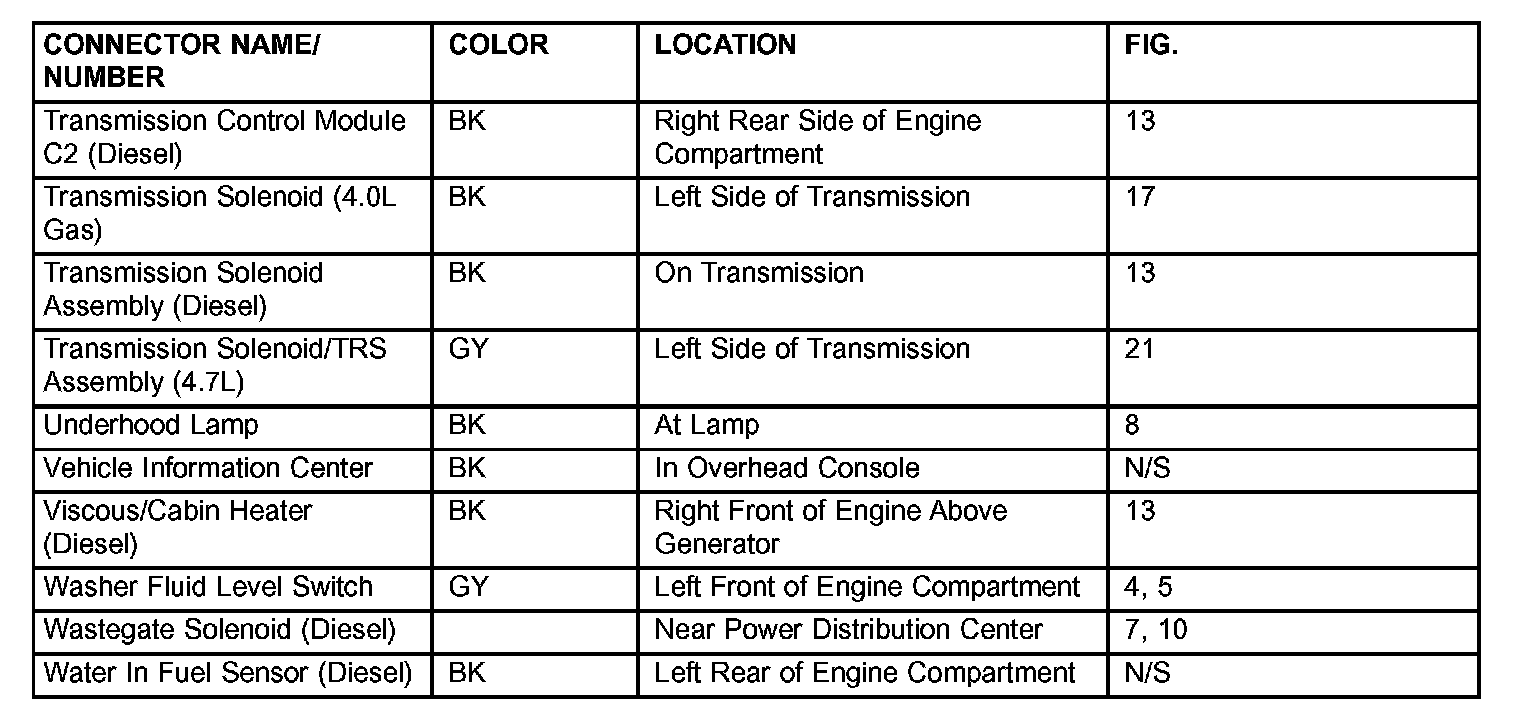

Right - transmission:
Transmission - water:
