Splice Location Index
PLEASE NOTE: If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.
The abbreviation
T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.
The abbreviation
N/S means Not Shown in the illustrations.

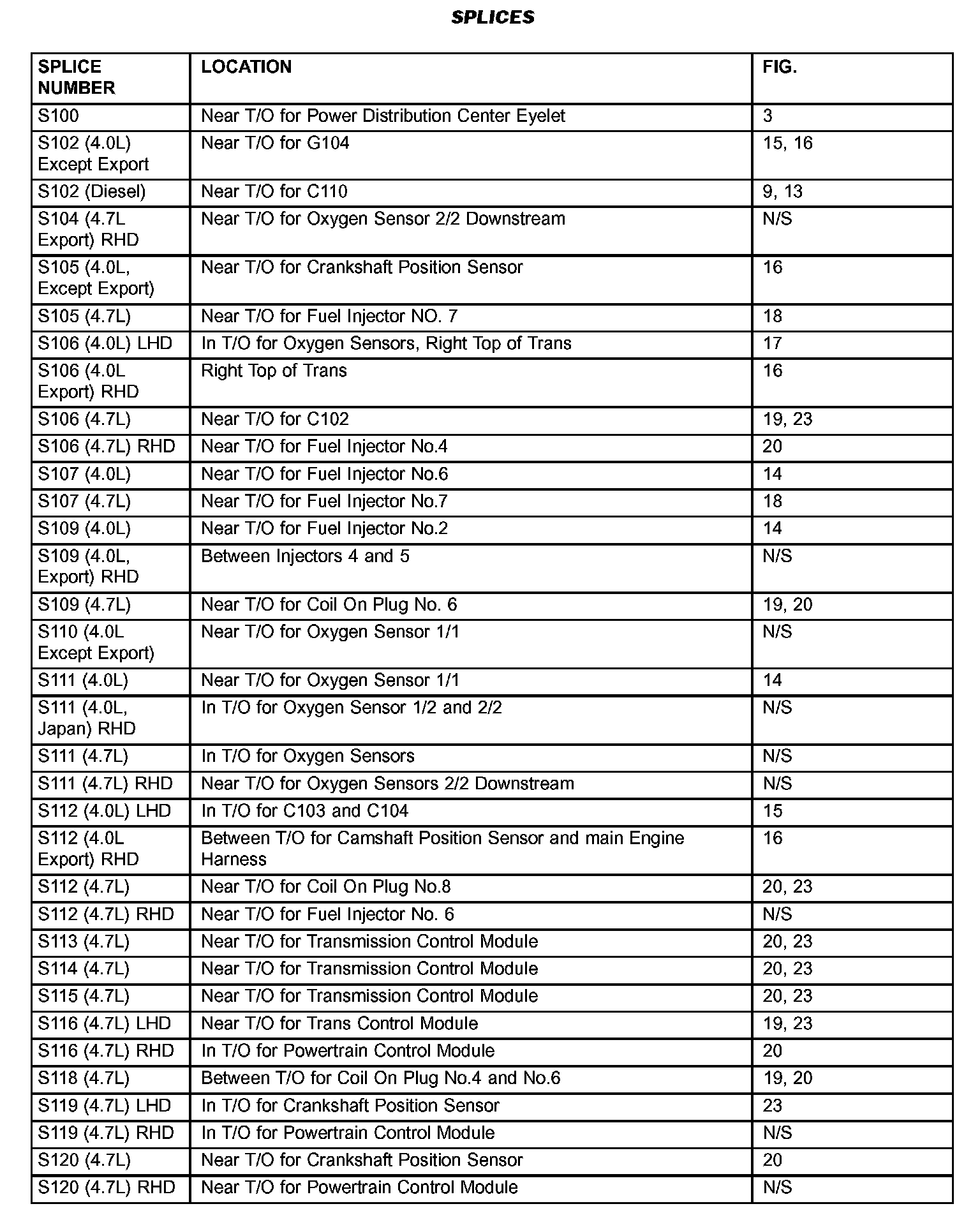

Splice S100 - S120 (4.7L)RHD:

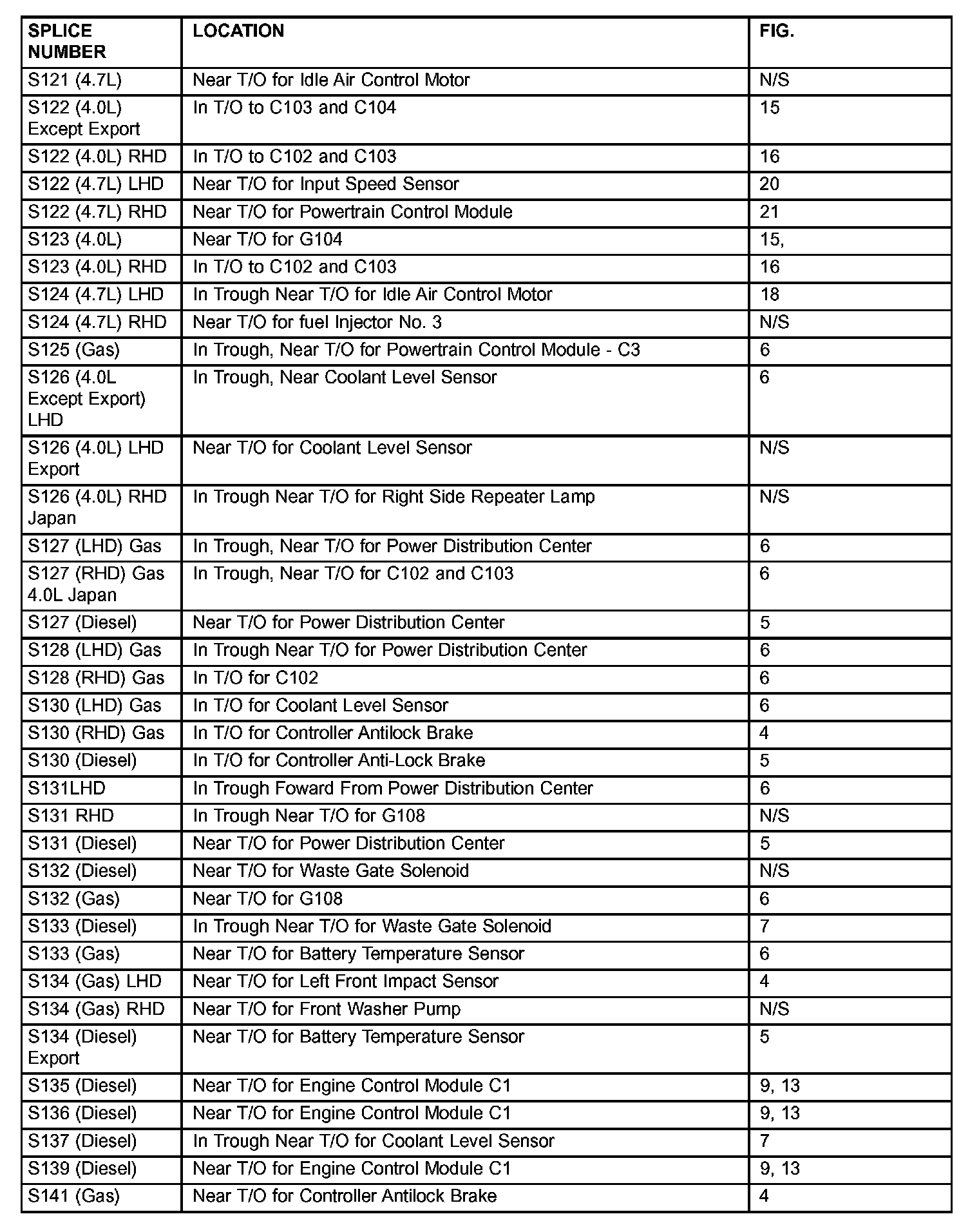

Splice S121 (4.7L) - S141 (Gas):

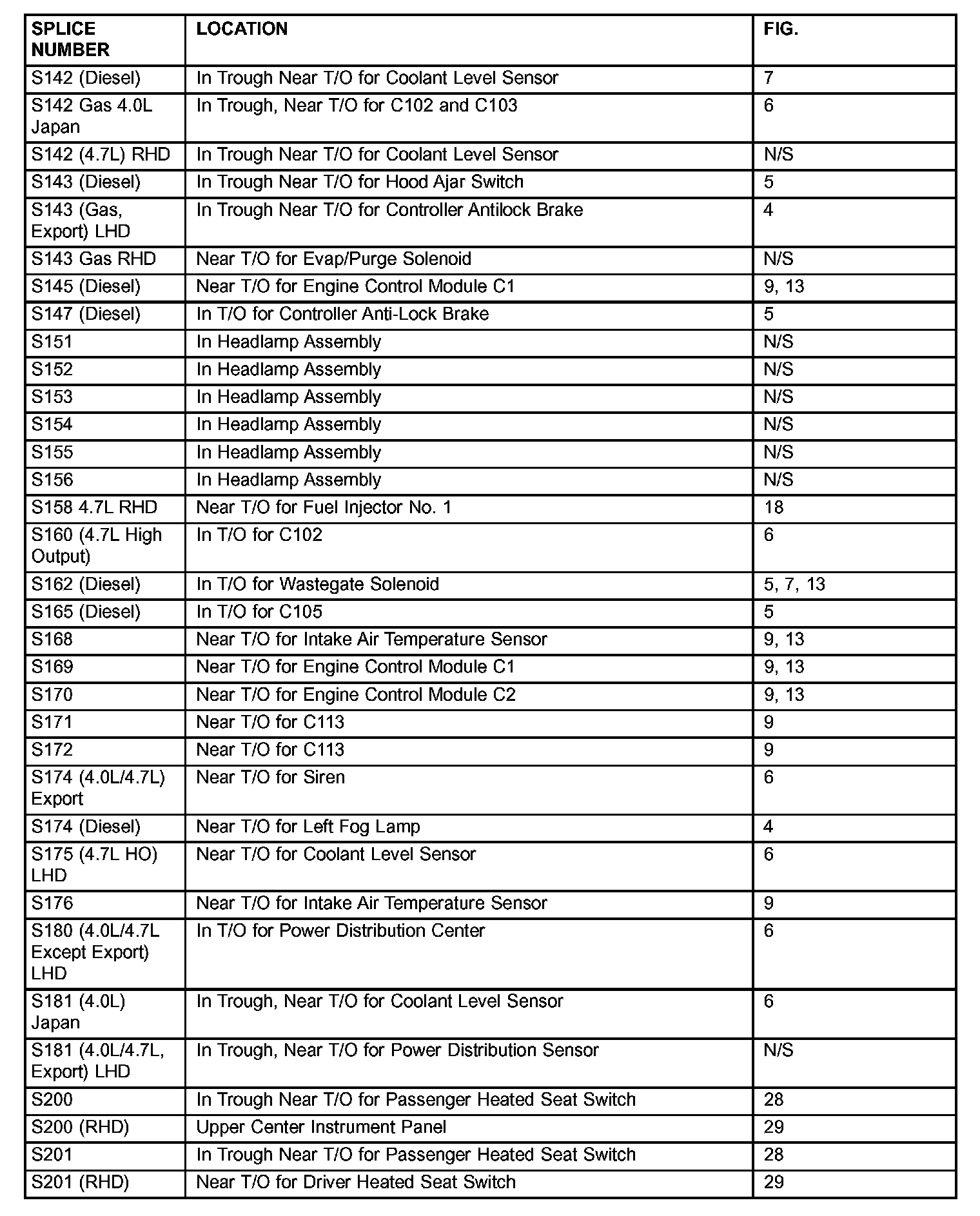

Splice S142 (Diesel) - S201 (RHD):

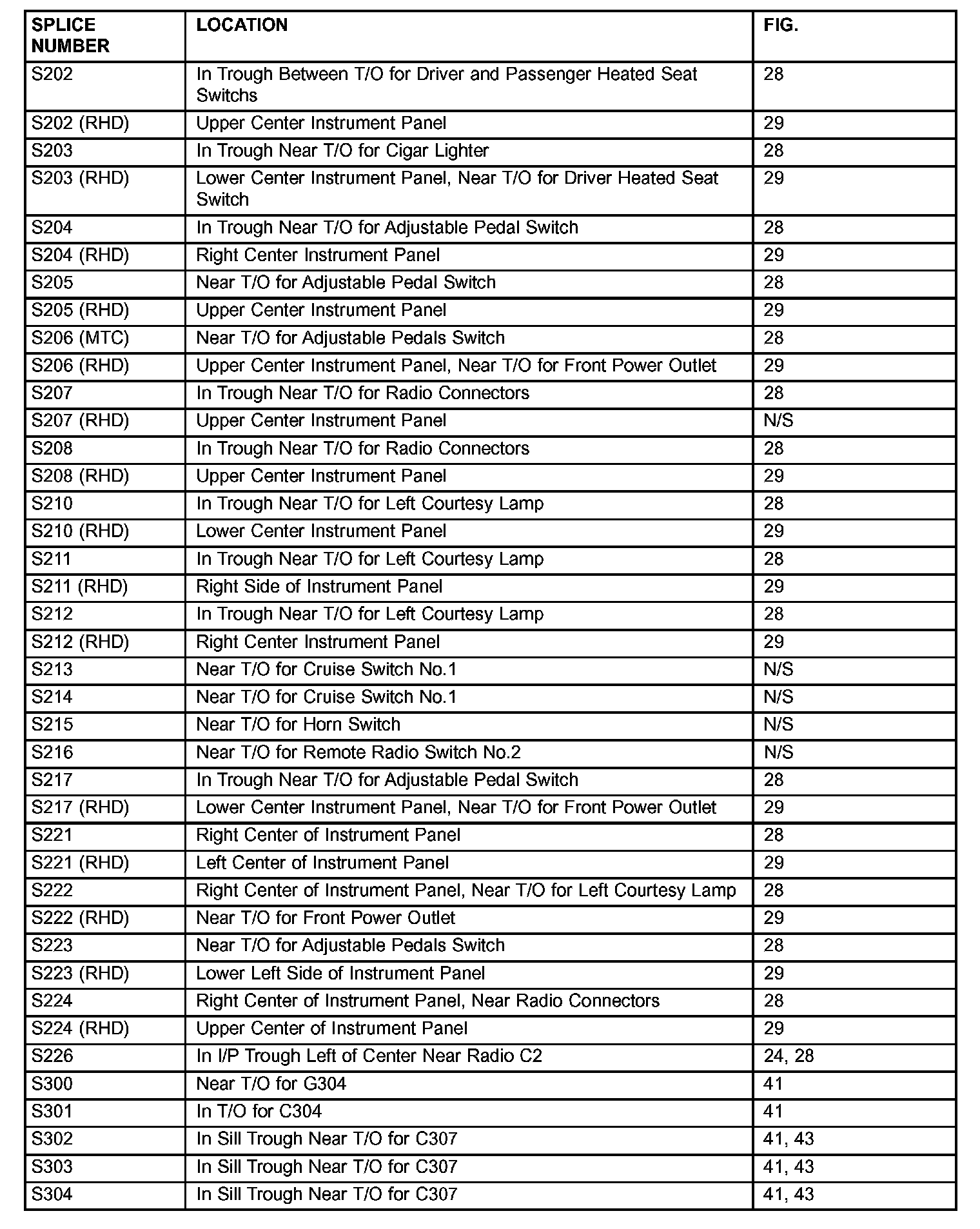

Splice S202 - S304:
Splice S305 - S345:

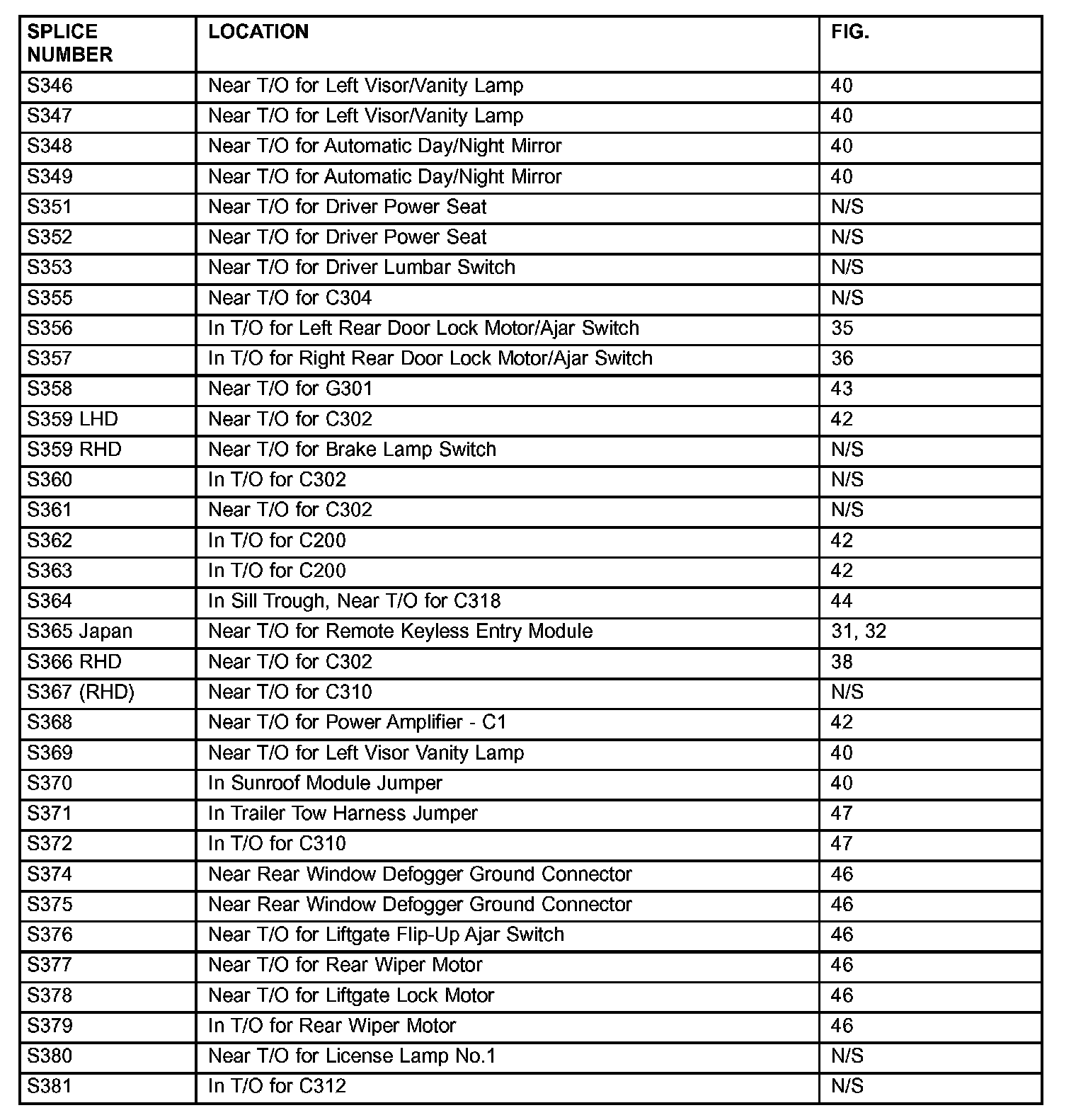

Splice S346 - S381:
