Connector Locations

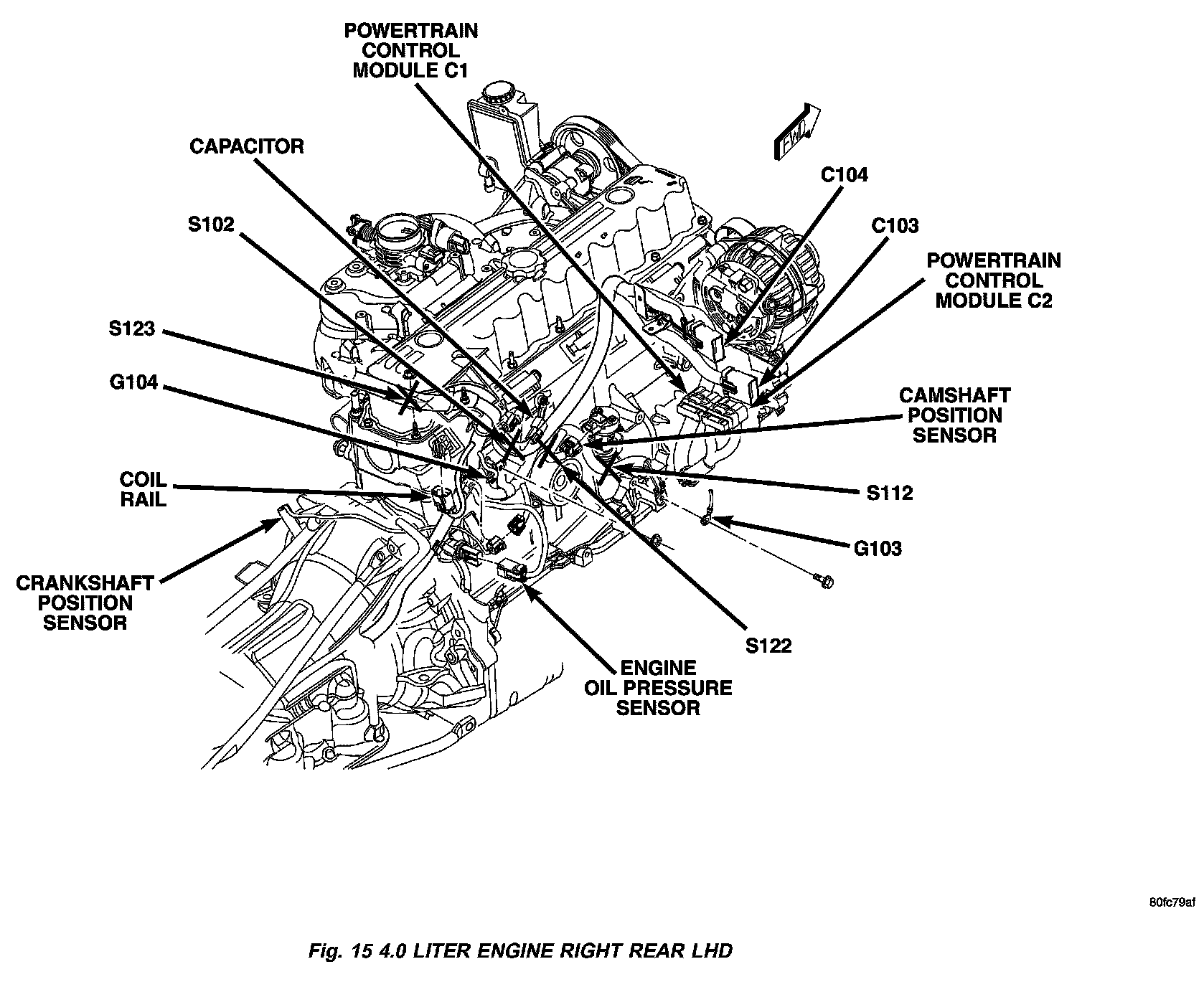

Fig. 15 4.0L Engine Right Rear LHD:

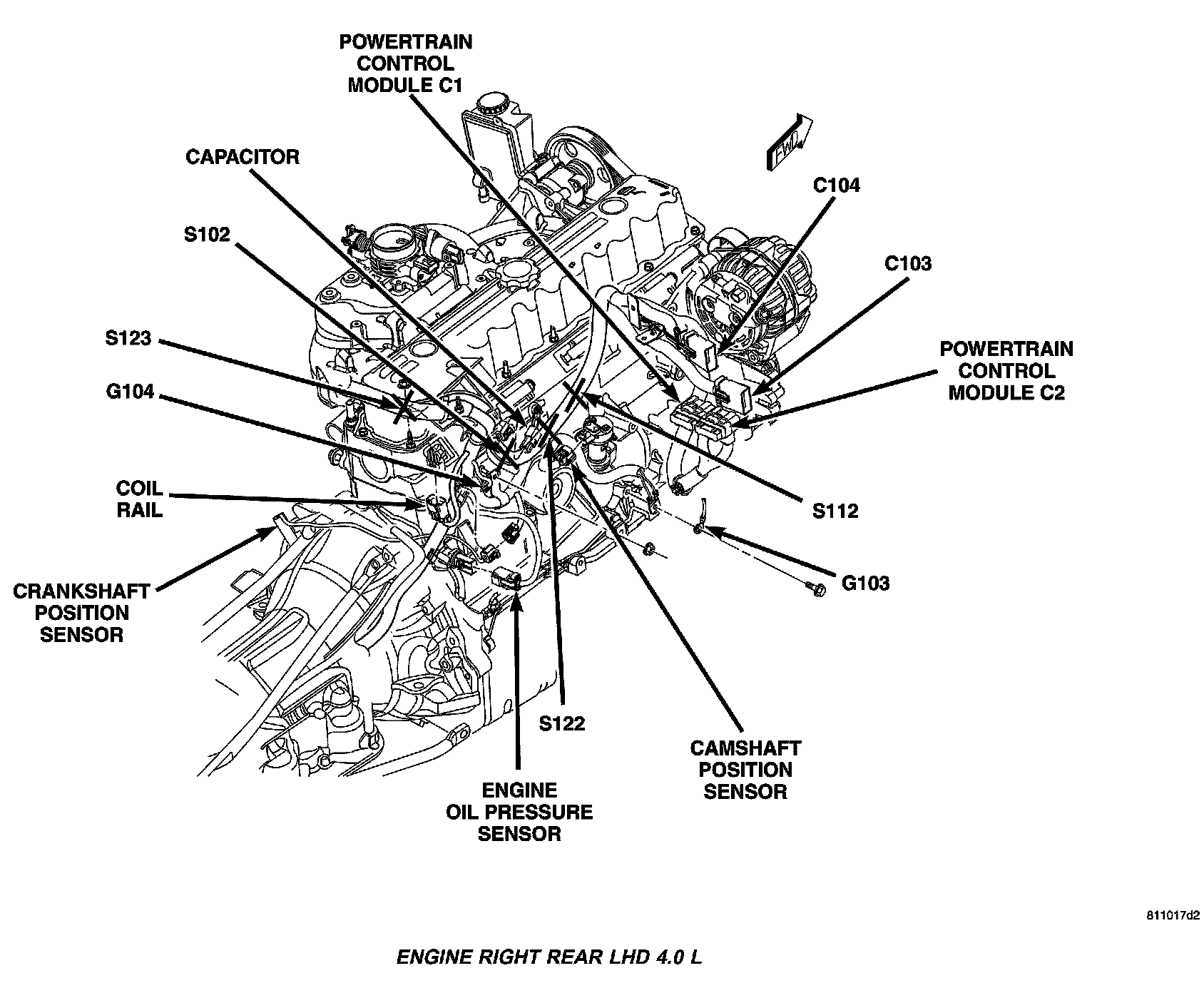

Engine Right Rear LHD (4.0L):

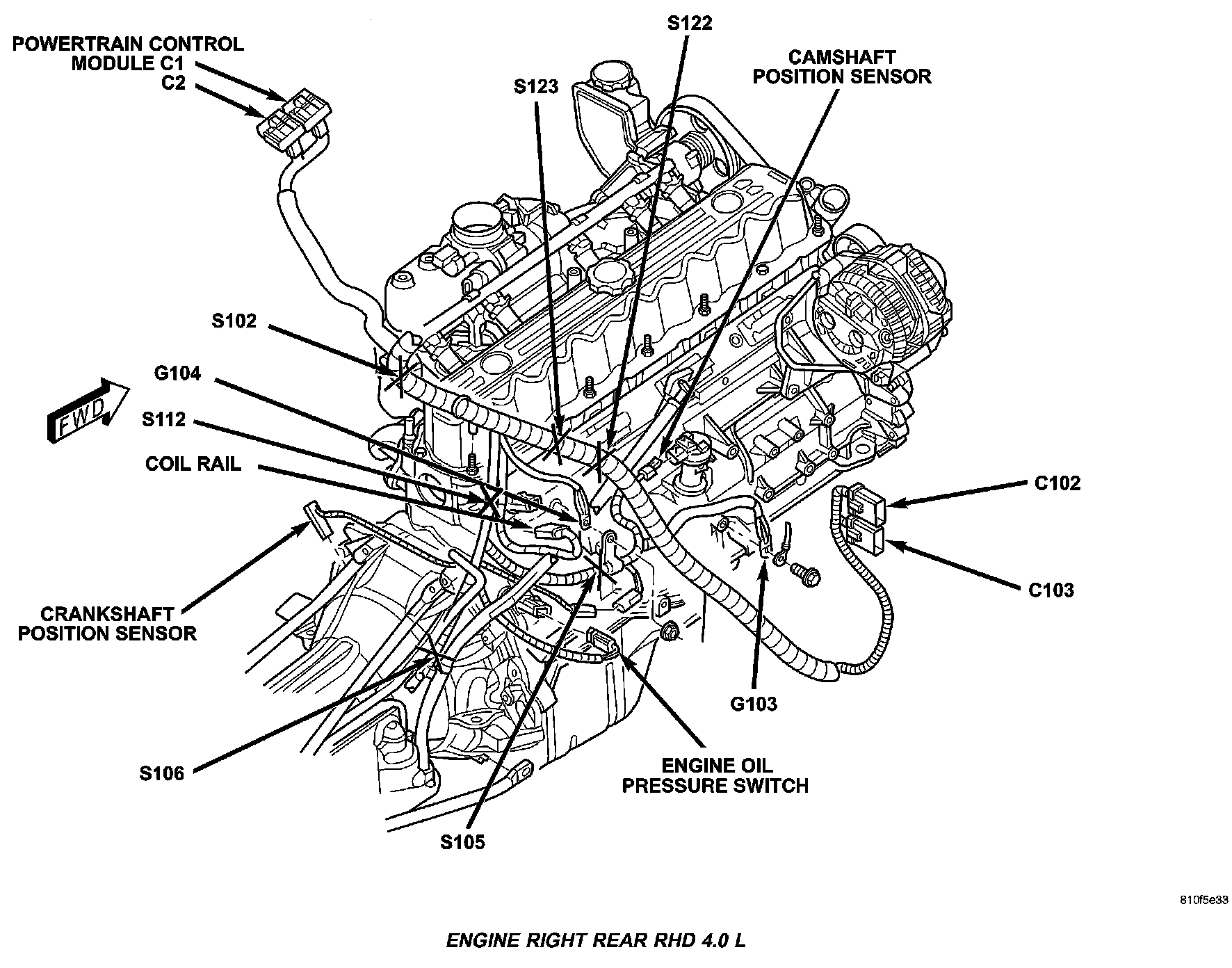

Engine Right Rear RHD (4.0L):
