Courtesy Lamps Inoperative From Left Rear Door Only

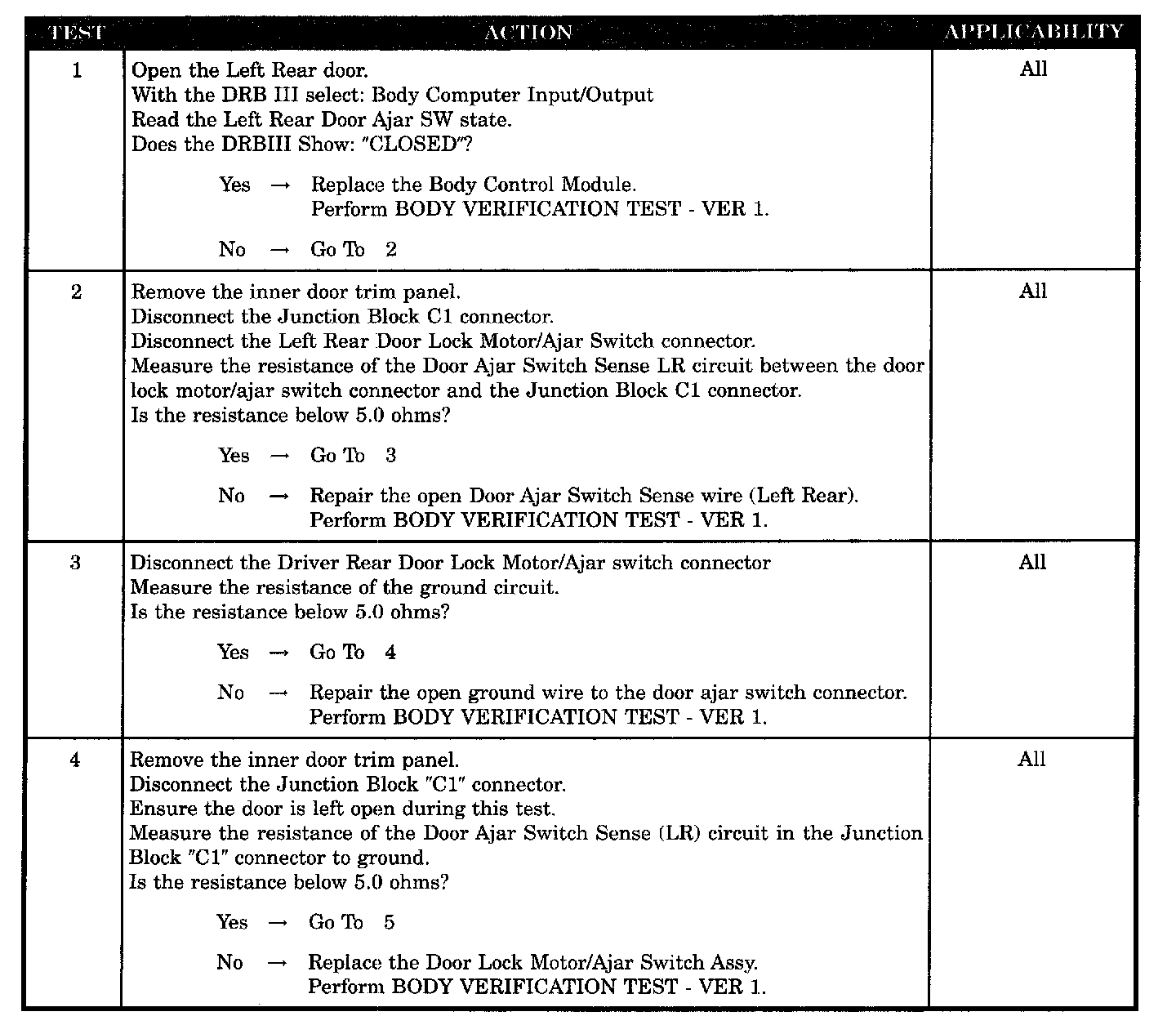

Test 1 - 4:




Test 5:






SYMPTOM
COURTESY LAMPS INOPERATIVE FROM LEFT REAR DOOR ONLY

POSSIBLE CAUSES
- Open door ajar switch sense (left rear)
- Open ground wire
- Left rear door ajar switch
- Body control module (ajar switch open)
