Courtesy Lamps Inoperative From Passenger Front Door Only

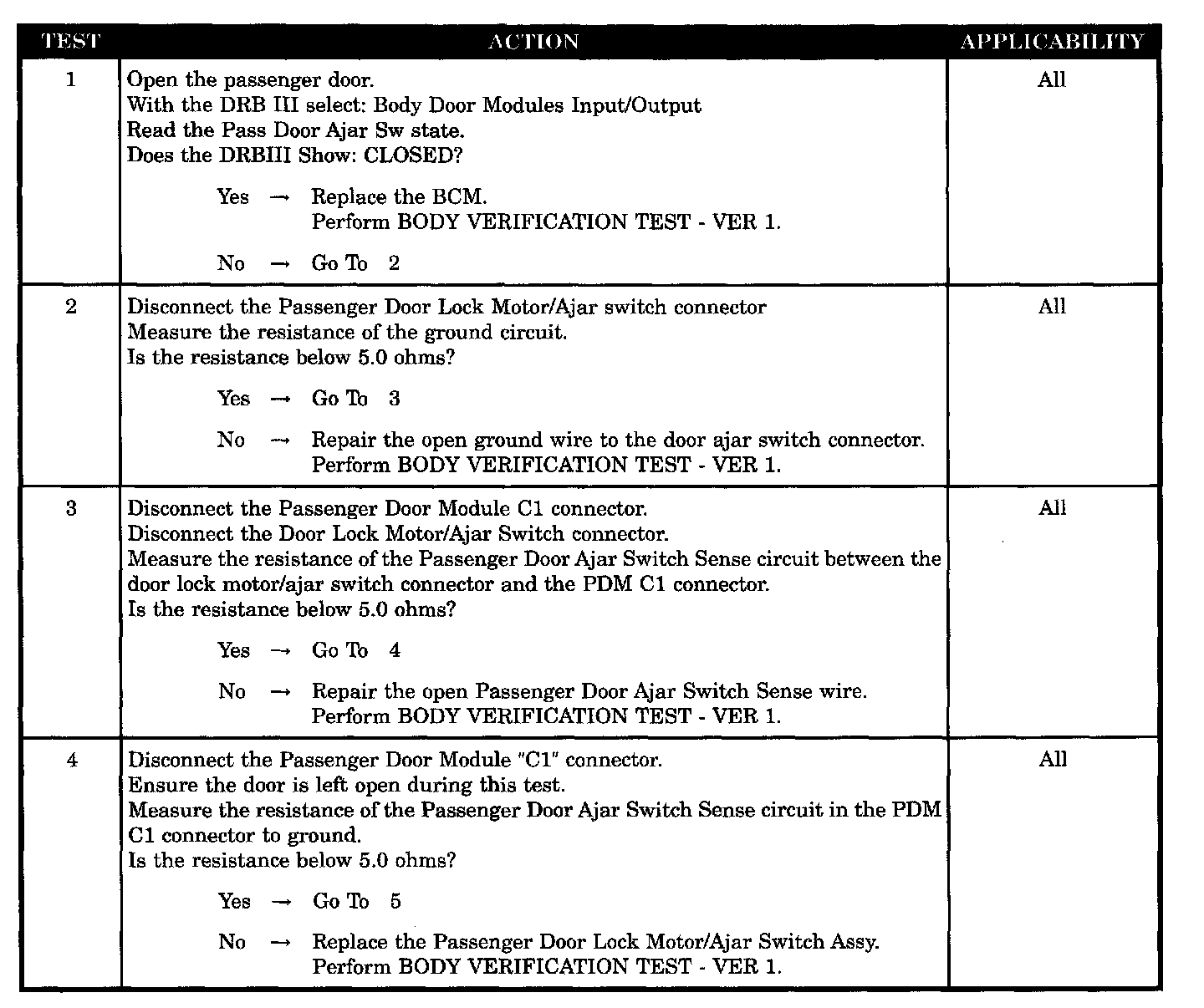

Test 1 - 4:

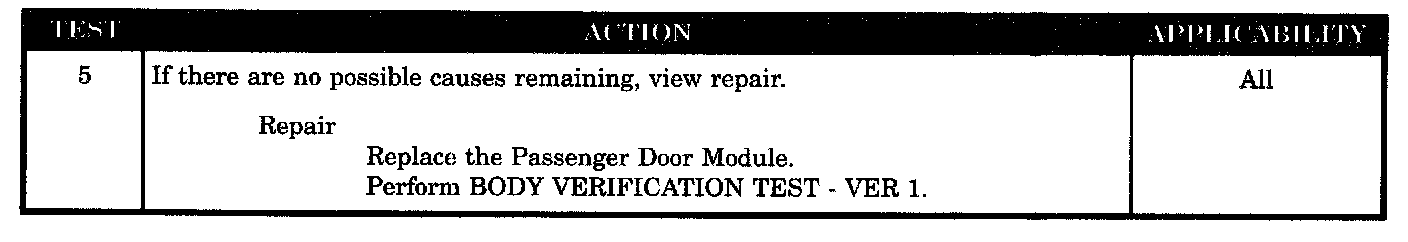

Test 5:
SYMPTOM COURTESY LAMPS INOPERATIVE FROM PASSENGER FRONT DOOR ONLY
POSSIBLE CAUSES -
Open ground wire
-
Open passenger door ajar switch sense wire
-
Passenger door ajar switch
-
BCM courtesy lamps inoperative from passenger front door only
-
Passenger
door module (ajar switch open)
