Air Bag Control Module
>>
Locations
>>
Connector Locations
Connector Locations

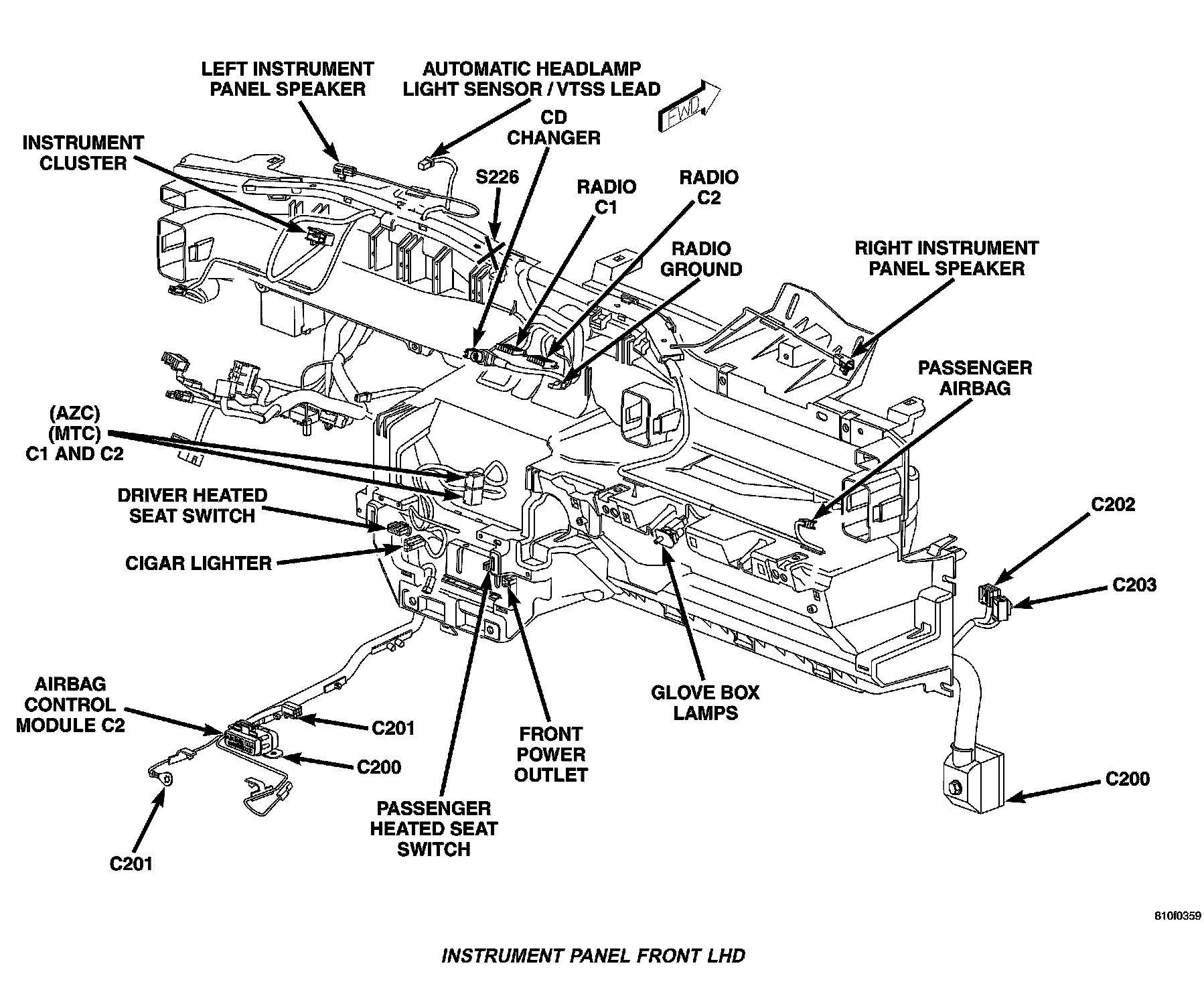

Instrument Panel Front LHD:

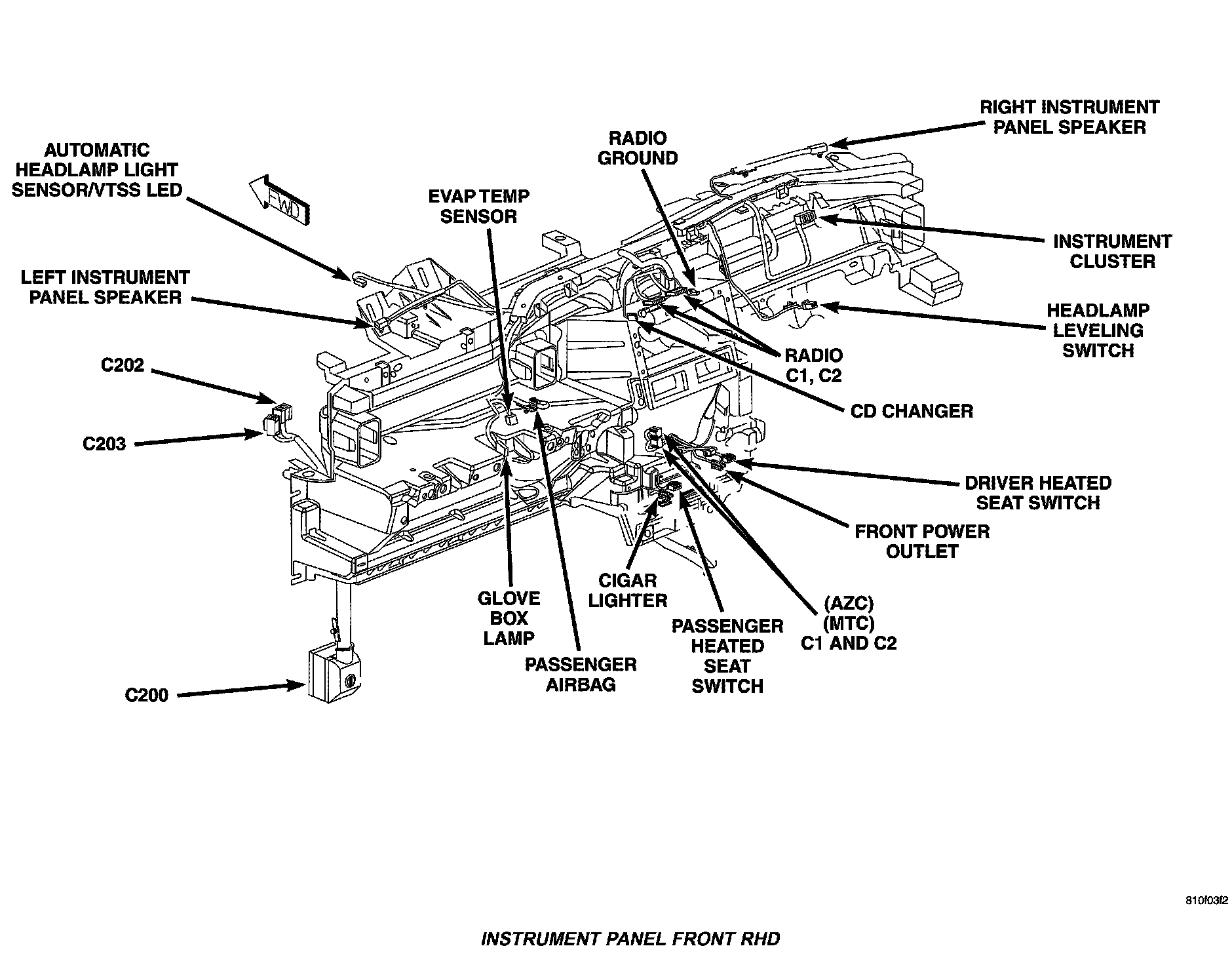

Instrument Panel Front RHD:
