Coolant Level Sensor

COOLANT LEVEL SENSOR

REMOVAL
1. Open Hood.

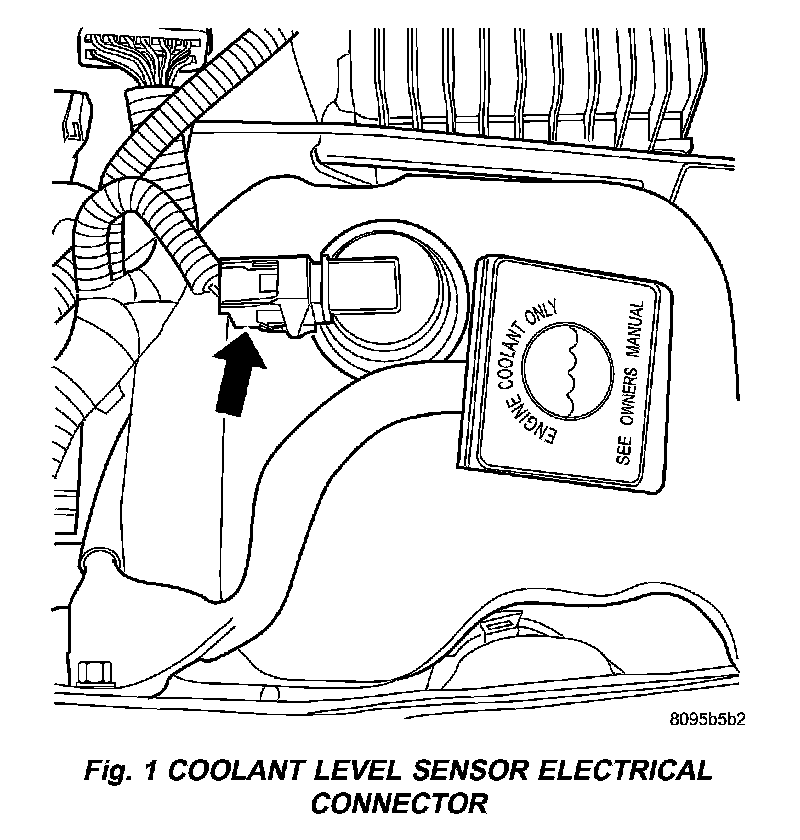

2. Disconnect electrical connector from coolant level sensor.

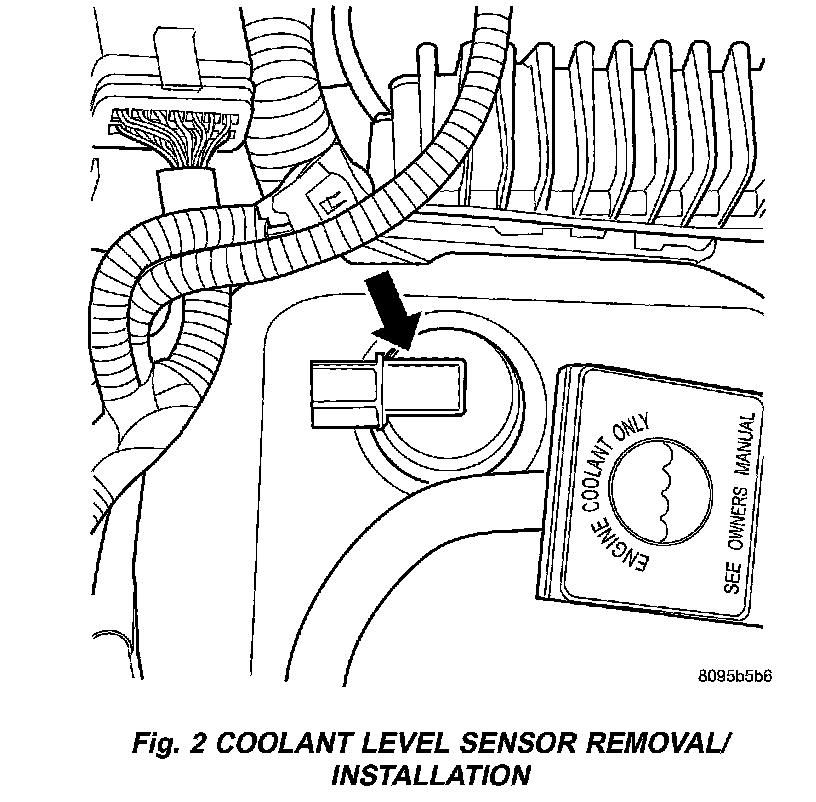

3. Pull coolant level sensor out of coolant recovery pressure container.

INSTALLATION

NOTE: Make sure the coolant level sensor fully seats into the rubber grommet. Failure to do so may cause inaccurate coolant level readings and leaks.





1. Position sensor into the coolant recovery pressure container.





2. Connect the coolant level sensor electrical connector.
3. Close hood.
