Component Locations

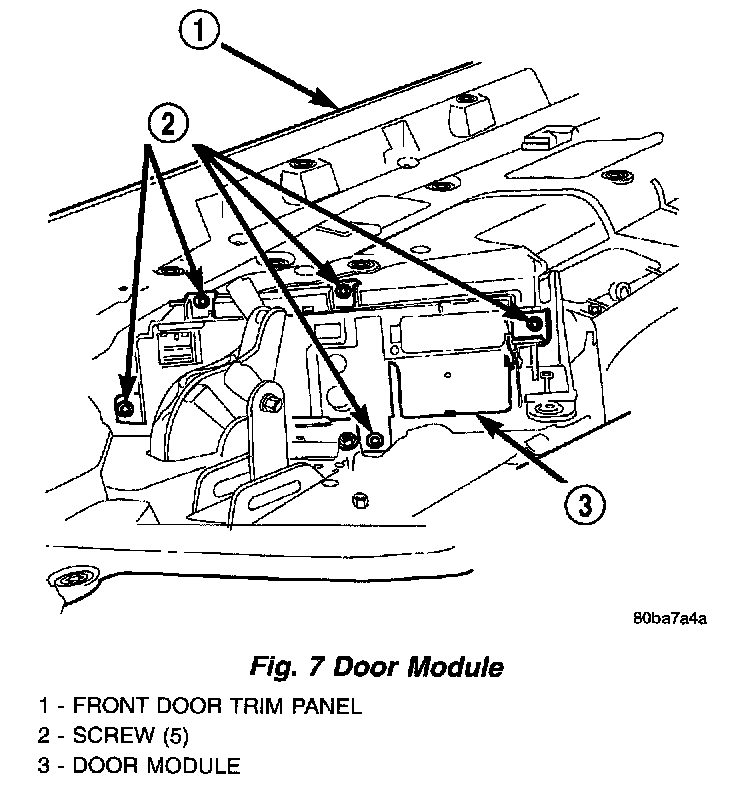

Fig.7 Door Module:






A multiplexed door module is located on each front door, Driver Door (DDM) and Passenger Door (PDM).
