Driver Memory Mirror Inoperative

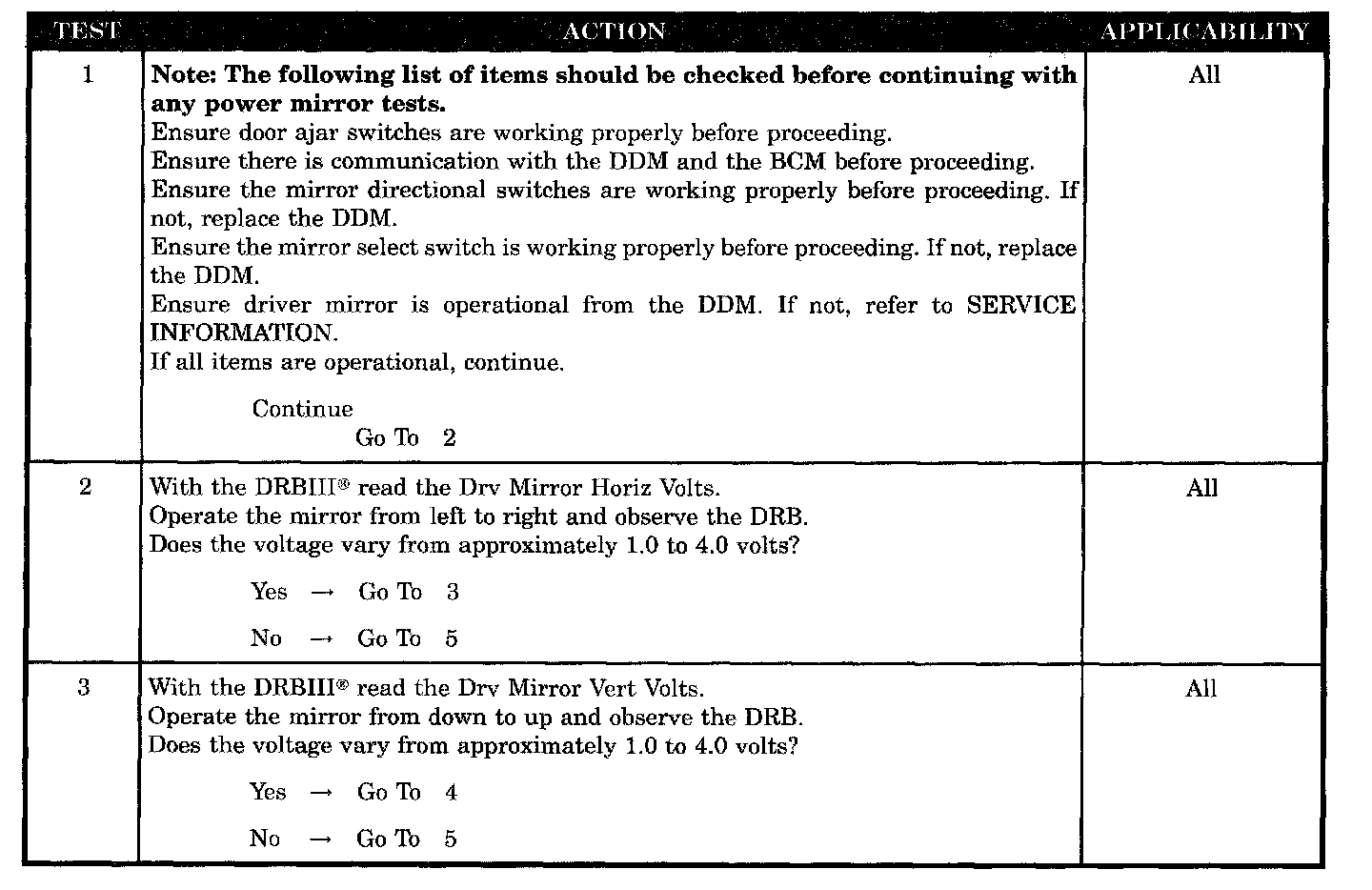

Test 1 - 3:

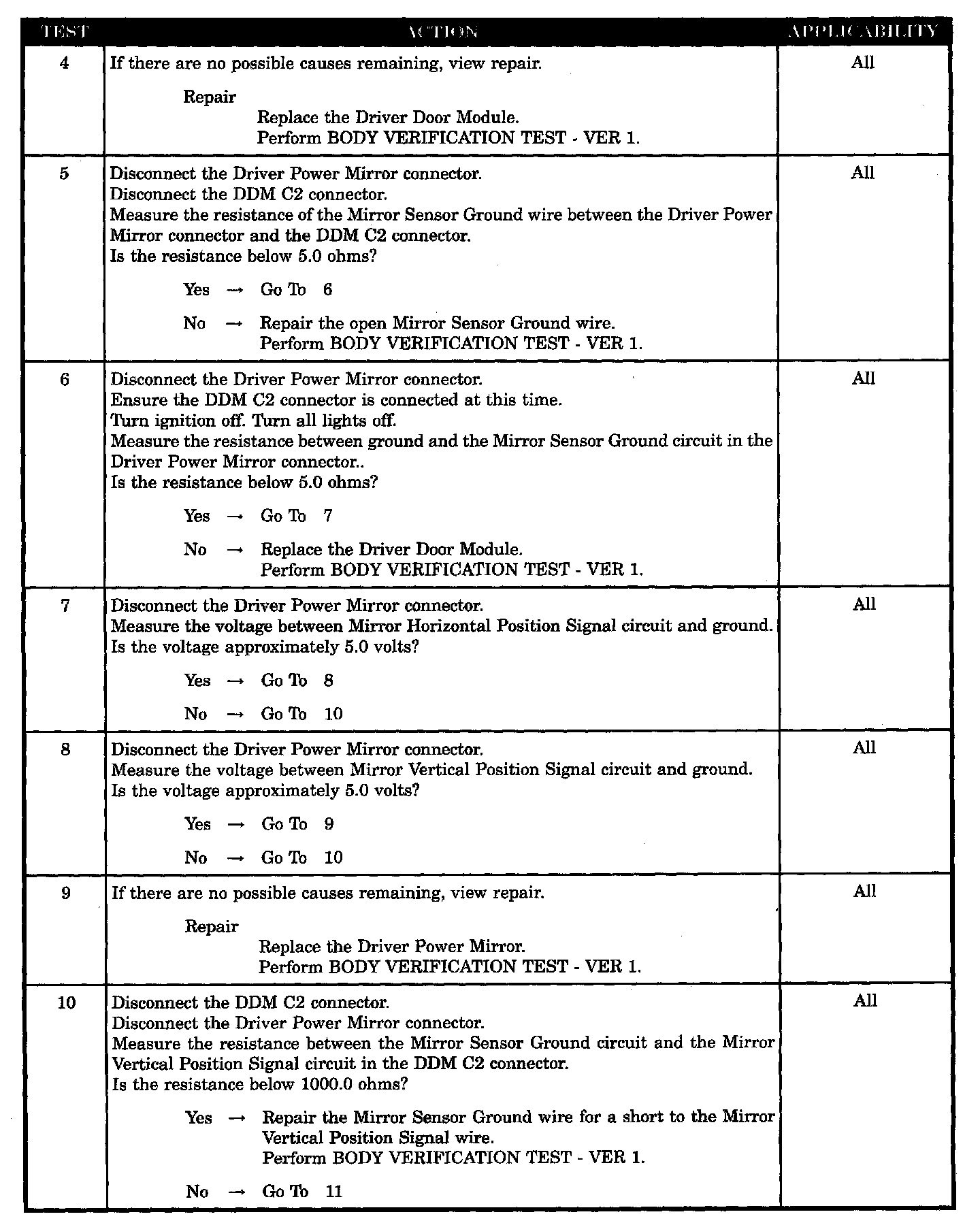

Test 4 - 10:

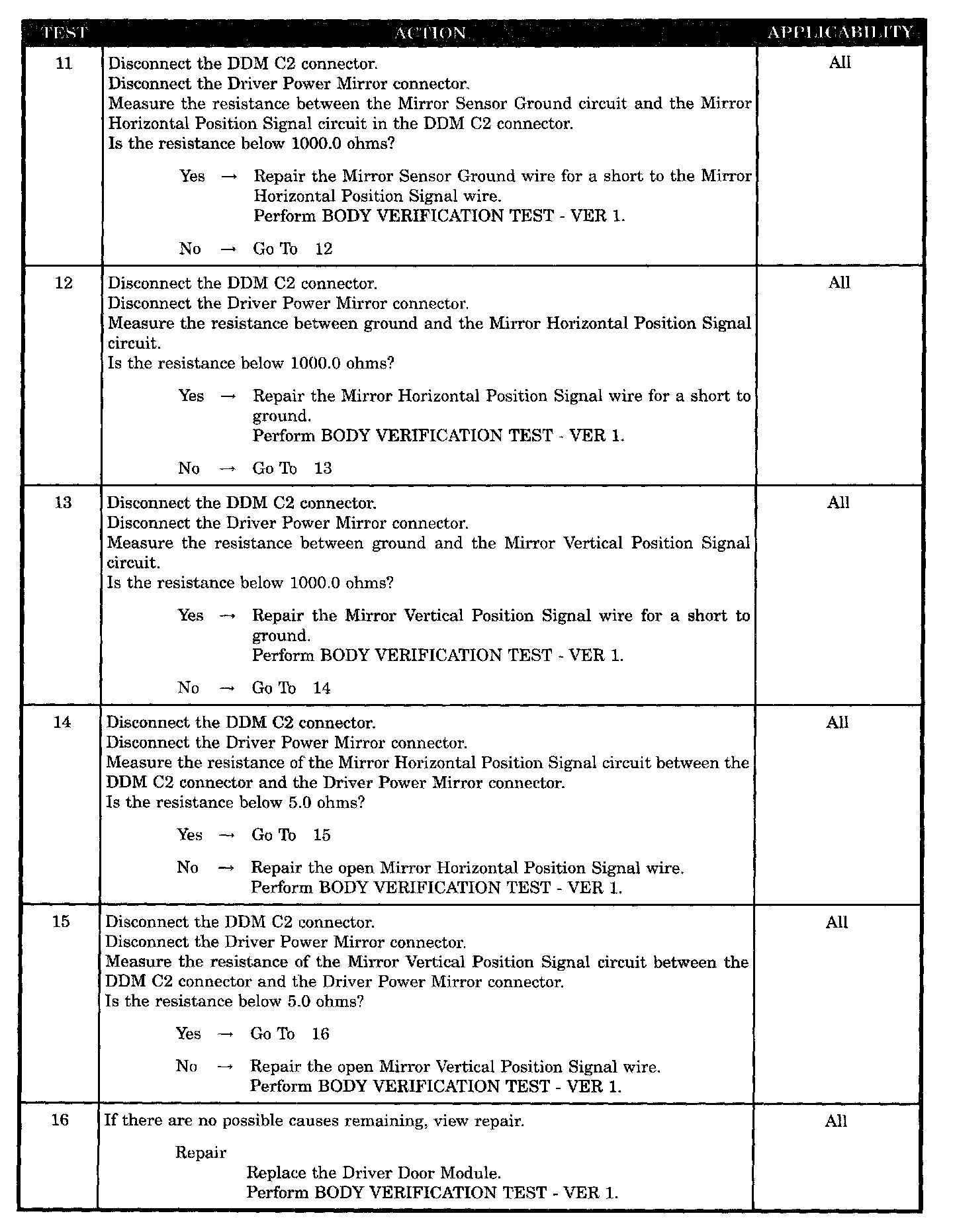

Test 11 - 16:






SYMPTOM
DRIVER MEMORY MIRROR INOPERATIVE

POSSIBLE CAUSES
- Driver mirror sensor ground wire open
- Driver door module - sensor ground open
- Driver mirror sensor ground shorted to mirror vertical position signal
- Driver mirror sensor ground shorted to mirror horizontal position signal
- Driver door module - memory mirror open
- Driver mirror horizontal position signal short to ground
- Driver mirror vertical position signal short to ground
- Driver mirror horizontal position signal wire open
- Driver mirror vertical position signal wire open
- Driver power mirror - memory open
- Driver door module - memory circuit open
