Checking the PCM Power and Ground Circuits

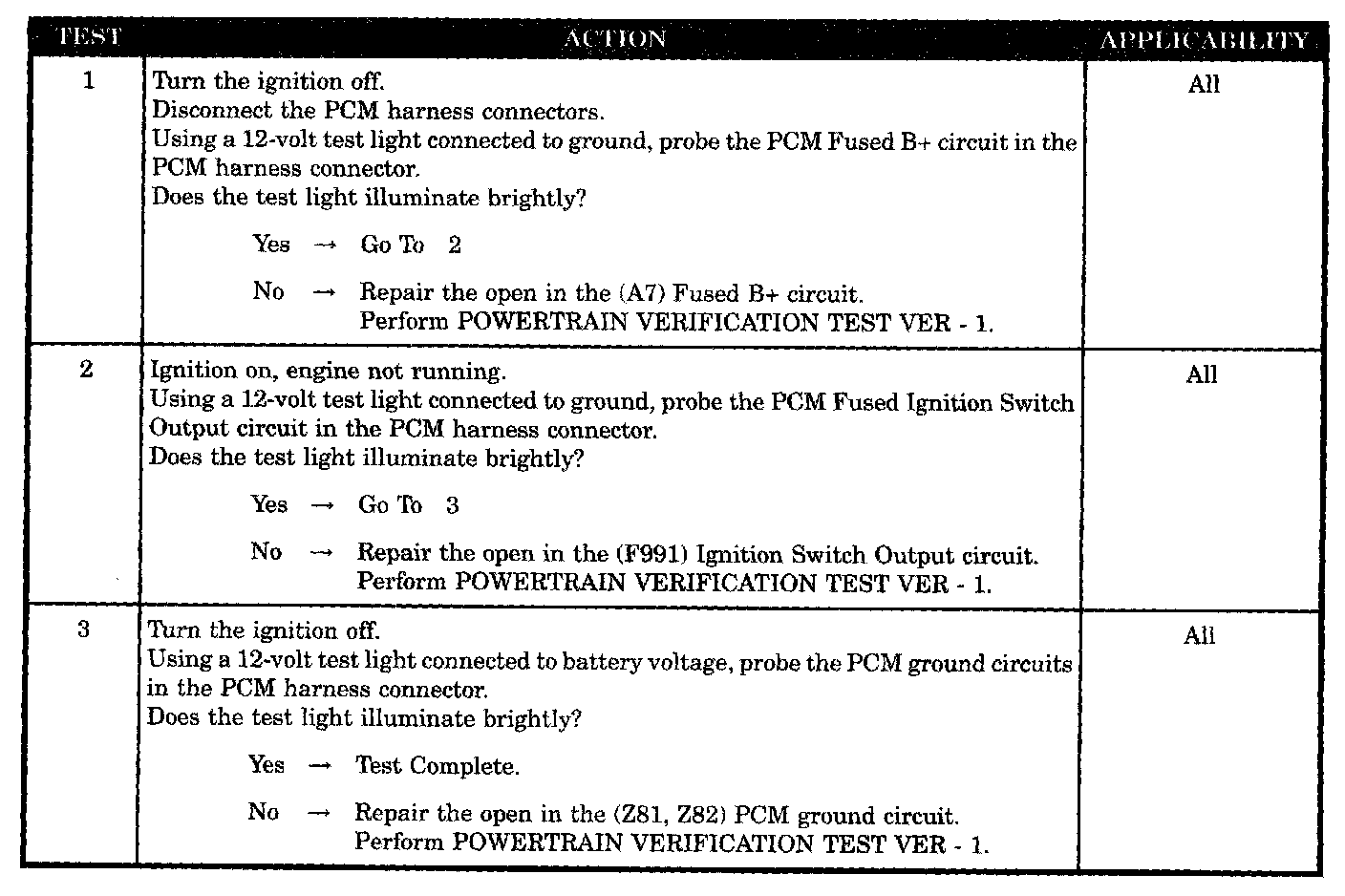

Test 1 - 3:

SYMPTOM
CHECKING THE PCM POWER AND GROUNDS

POSSIBLE CAUSES
- (A7) PCM fused B+ circuit
- (F991) PCM fused ignition switch output circuit
- (Z81,Z82) PCM ground circuits
