Home >> Jeep >> 2004 >> Grand Cherokee 2WD V8-4.7L VIN N >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> System Schematics

System Schematics

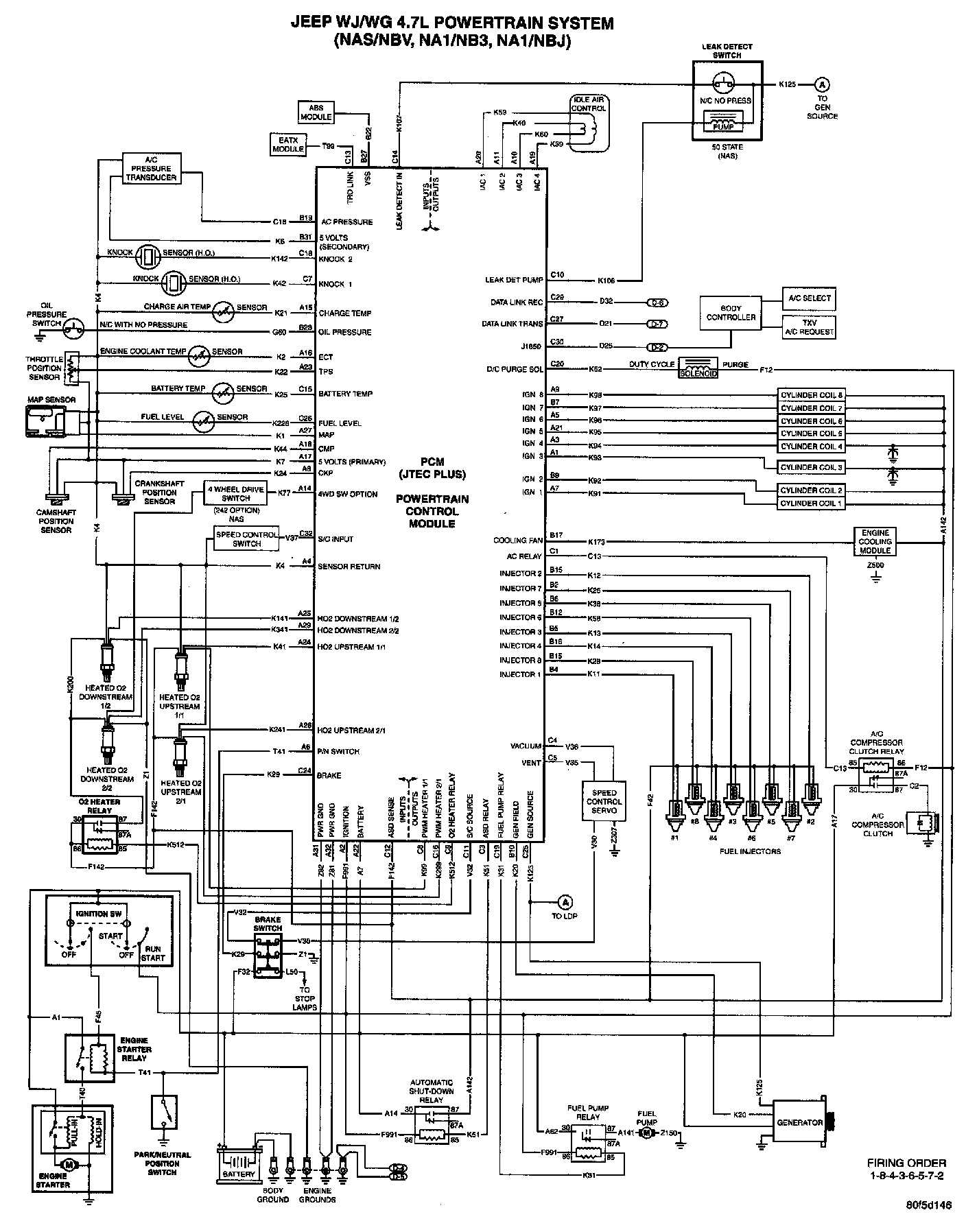

JEEP WJ/WG 4.0L POWERTRAIN SYSTEM (NAS/NBV, NA1/NB3, NA1/NBJ):
