Engine Mechanical
TIGHTENING SPECIFICATIONSCamshaft Non-Oiled Sprocket Bolt 122 Nm (90 ft. lbs.)
Camshaft Bearing Cap Bolts 11 Nm (100 in. lbs.)
Timing Chain Cover Bolts 54 Nm (40 ft. lbs.)
Connecting Rod Cap Bolts 27 Nm (20 ft. lbs.) PLUS 90 °
Bed Plate Bolts Refer to Procedure
Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
Cylinder Head Bolts
M11 Bolts 81 Nm (60 ft. lbs.)
M8 Bolts 26 Nm (19 ft. lbs.)
Cylinder Head Cover Bolts 12 Nm (105 in. lbs.)
Exhaust Manifold Bolts 25 Nm (18 ft. lbs.)
Exhaust Manifold Heat Shield Nuts 8 Nm (72 in. lbs.) then loosen 45 °
Flexplate Bolts 60 Nm (45 ft. lbs.)
Engine Mount Bracket to Block Bolts 61 Nm (45 ft. lbs.)
Rear Mount to Transmission Bolts 46 Nm (34 ft. lbs.)
Generator Mounting Bolts
M10 Bolts 54 Nm (40 ft. lbs.)
M8 Bolts 28 Nm (250 in. lbs.)

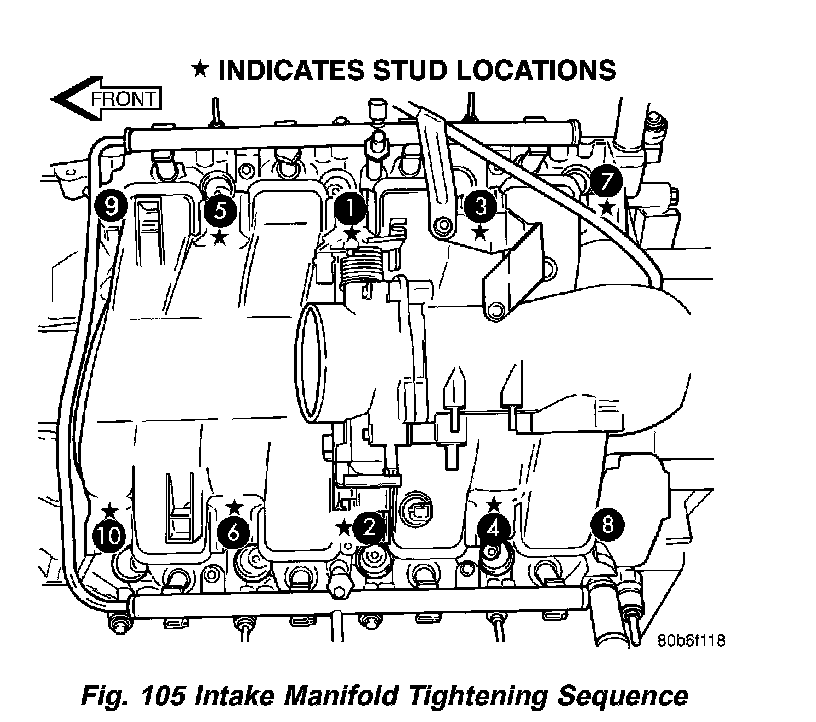

Intake Manifold Bolts 12 Nm (105 in. lbs.)
Oil Pan Bolts 15 Nm (130 in. lbs.)
Oil Pan Drain Plug 34 Nm (25 ft. lbs.)
Oil Pump Bolts 28 Nm (250 in. lbs.)
Oil Pump Cover Bolts 12 Nm (105 in. lbs.)
Oil Pickup Tube Bolt and Nut 28 Nm (250 in. lbs.)
Oil Dipstick Tube to Engine Block Bolt 15 Nm (130 in. lbs.)
Oil Fill Tube Bolts 12 Nm (105 in. lbs.)
Timing Chain Guide Bolts 28 Nm (250 in. lbs.)
Timing Chain Tensioner Arm-Special Pin Bolt 17 Nm (150 in. lbs.)
Hydraulic Tensioner Bolts 28 Nm (250 in. lbs.)
Timing Chain Primary Tensioner Bolts 28 Nm (250 in. lbs.)
Timing Drive Idler Sprocket Bolt 34 Nm (25 ft. lbs.)
Thermostat Housing Bolts 13 Nm (115 in. lbs.)
Water Pump Bolts 54 Nm (40 ft. lbs.)
