Grand Cherokee 4WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

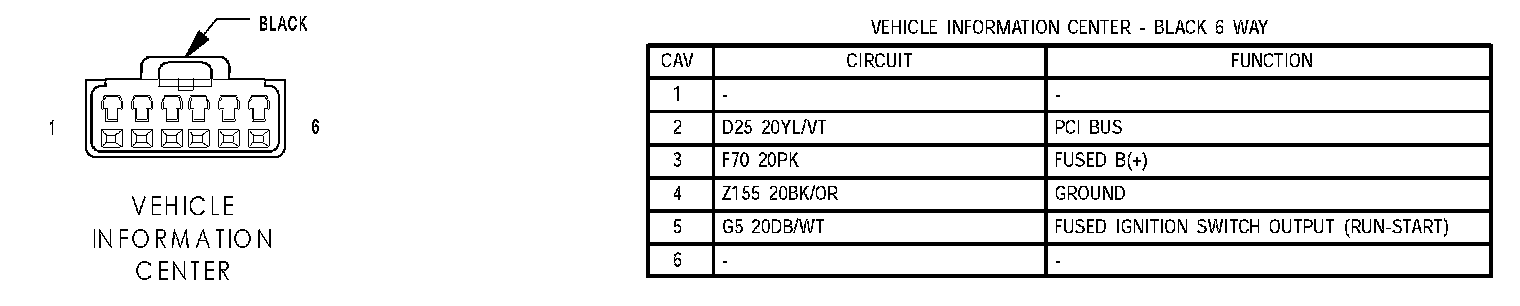

Driver/Vehicle Information Display
Driver/Vehicle Information Display
Transmission Solenoid/Trs Assembly (4.7L):
