System Specifications

AUTOMATIC TRANSMISSION - 42RE

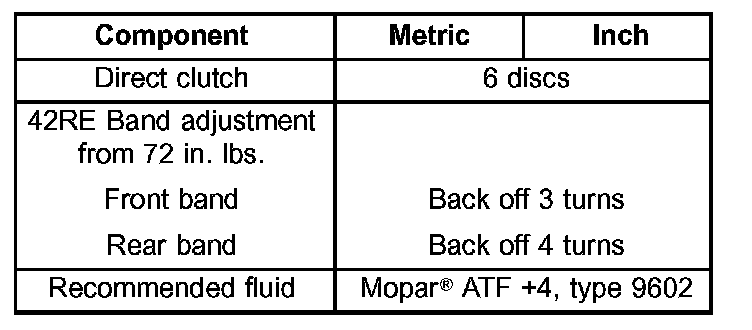

General

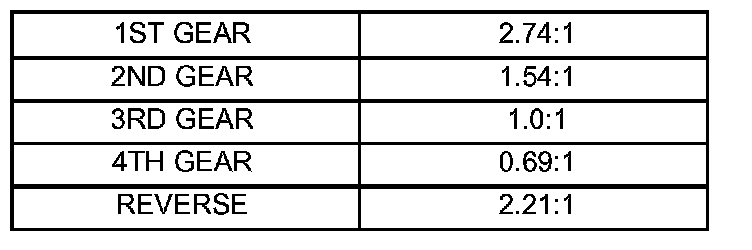

Gear Ratios

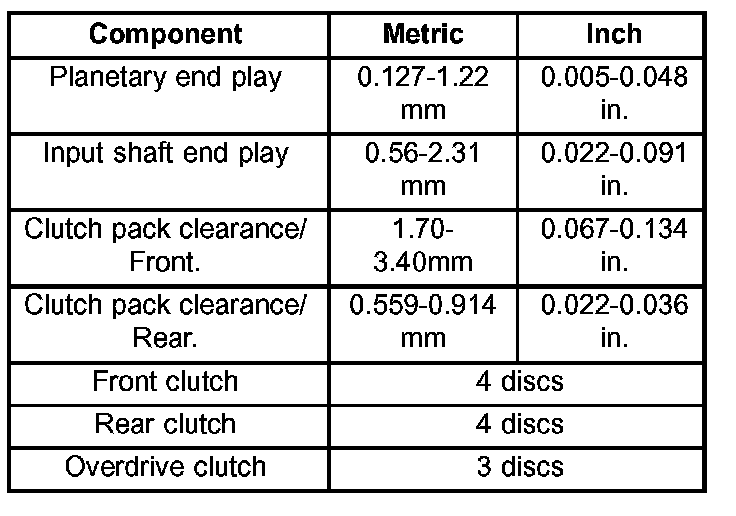

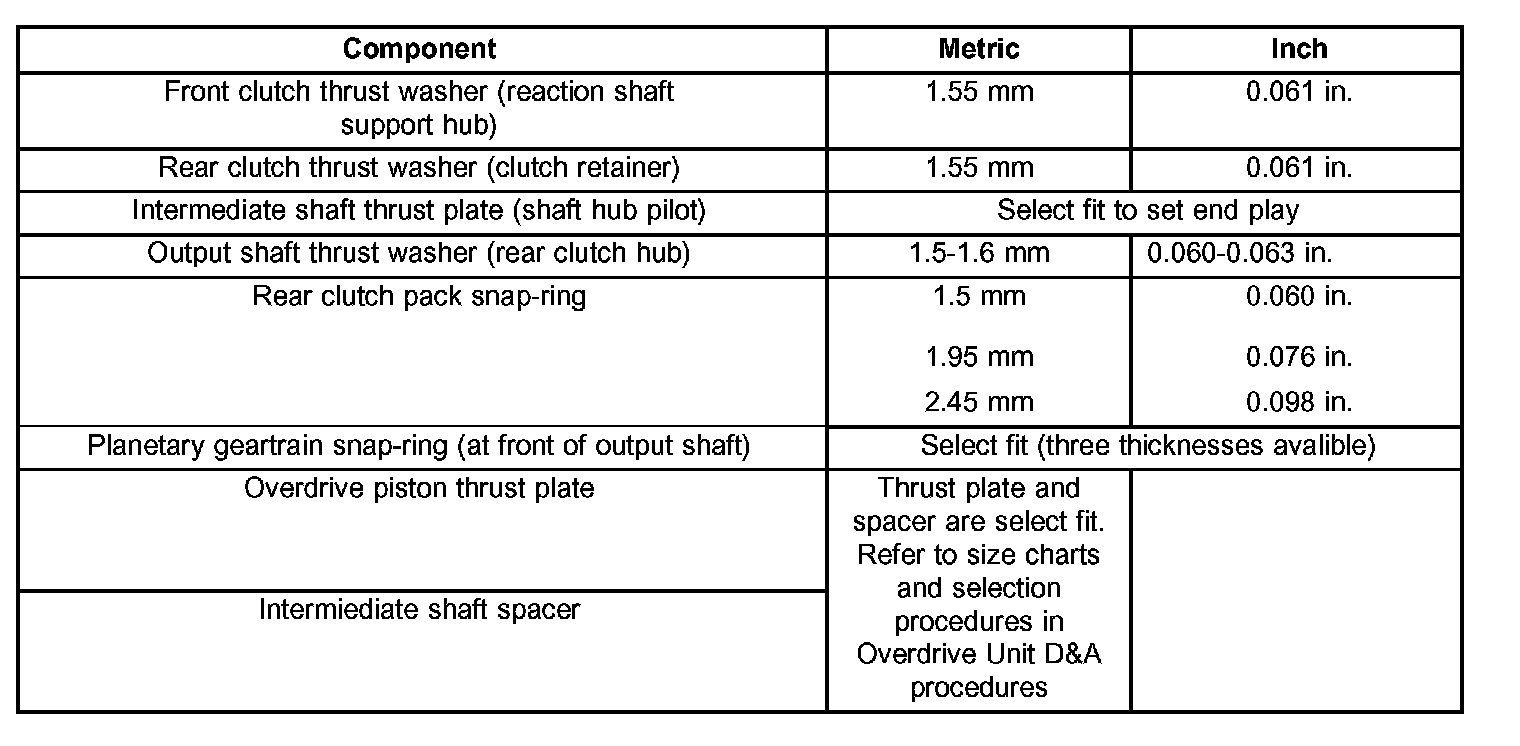

Thrust Washer/Spacer/Snap Ring Dimensions

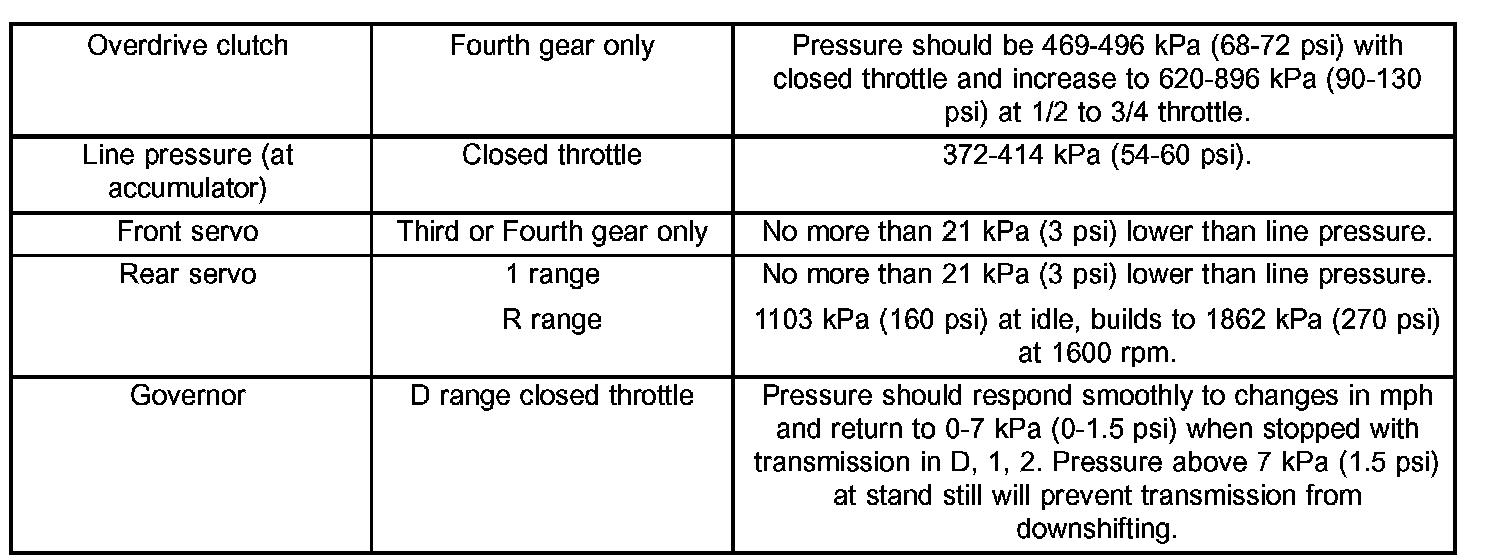

Pressure Test

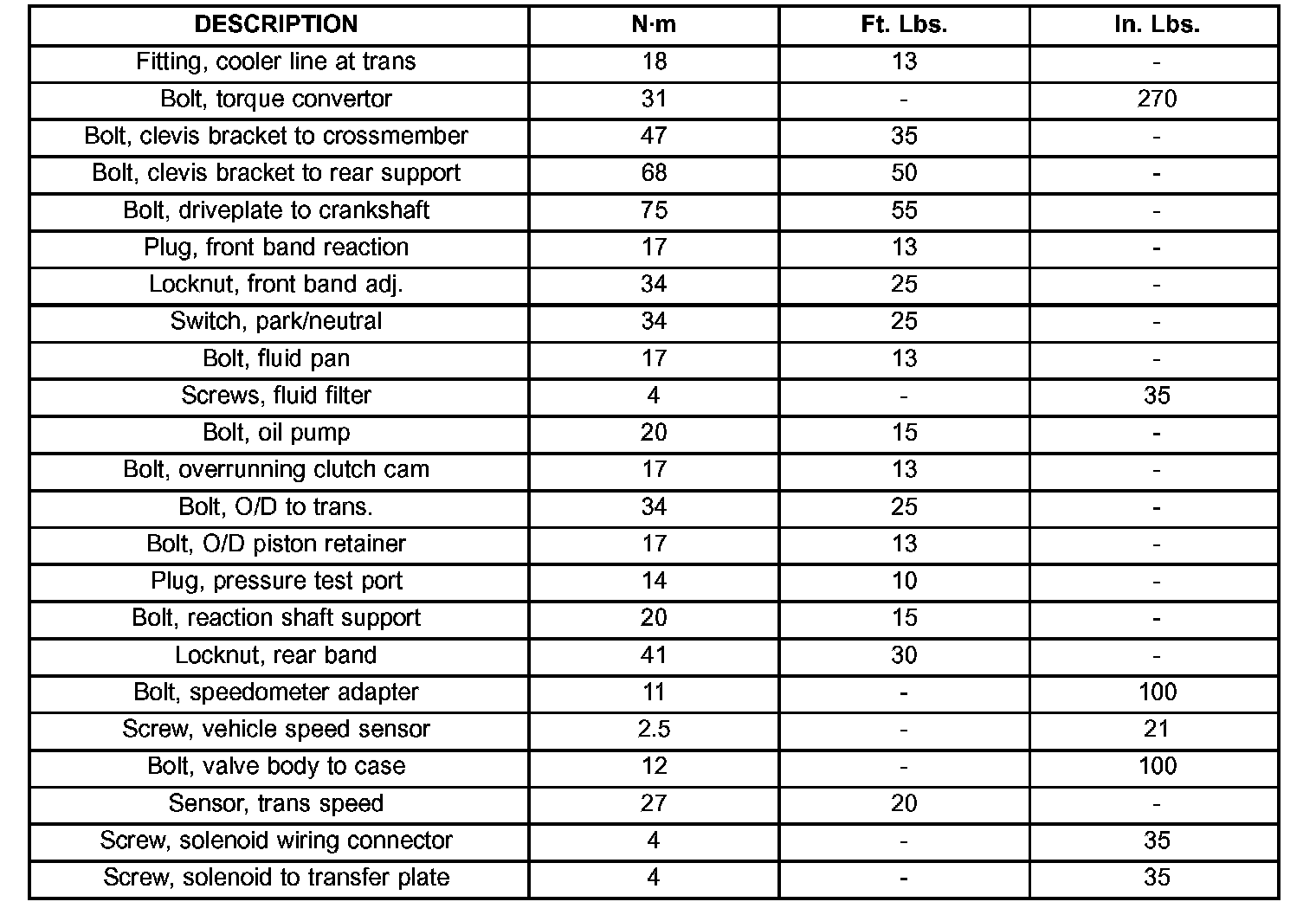

Torque Specifications
