Tailgate Lock Cylinder: Service and Repair

LOCK CYLINDER

REMOVAL

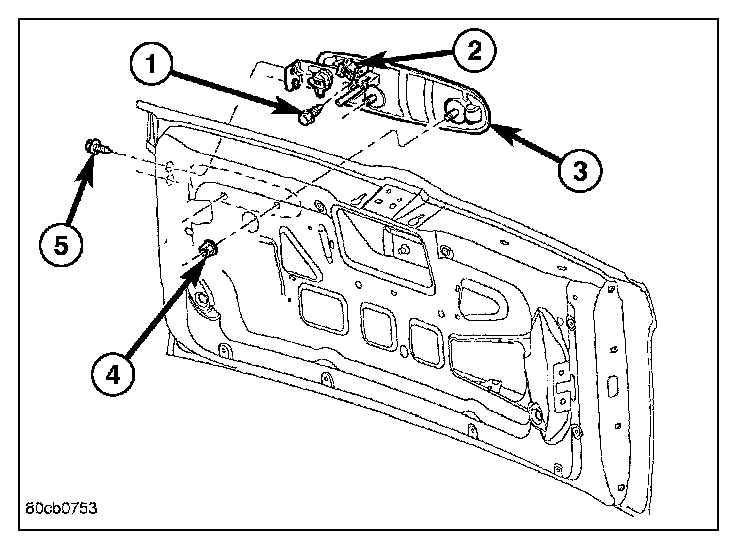

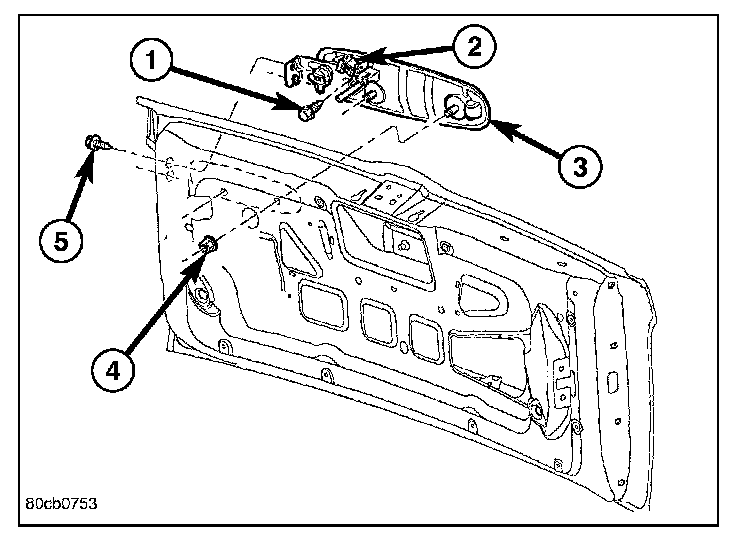

1. Remove the exterior handle (3).
2. Remove the clip and remove the lock cylinder switch.

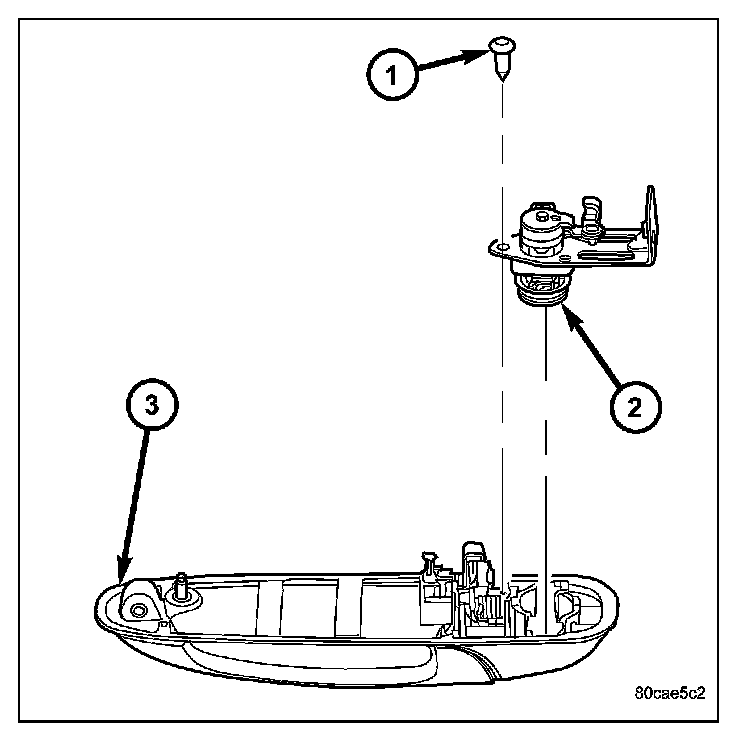

3. Remove the screw (1) and remove the lock cylinder (2).

INSTALLATION

1. Install the lock cylinder.




2. Install the screw (1) and tighten to 6 N.m (50 in.lbs.).
3. Install the lock cylinder switch and retaining clip.




4. Install the exterior handle (3).
