Connecting Rod Bearing: Service and Repair

STANDARD PROCEDURE - CONNECTING ROD BEARING FITTING
1. For measuring connecting rod bearing clearance procedure and use of Plastigage, Measuring Bearing Clearance Using Plastigage

NOTE: The rod bearing bolts should not be reused.

2. Before installing the NEW bolts the threads should be oiled with clean engine oil.
3. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
4. Tighten the bolts to 27 Nm (20 ft. lbs.) PLUS 1/4 turn. Do not use a torque wrench for last step.

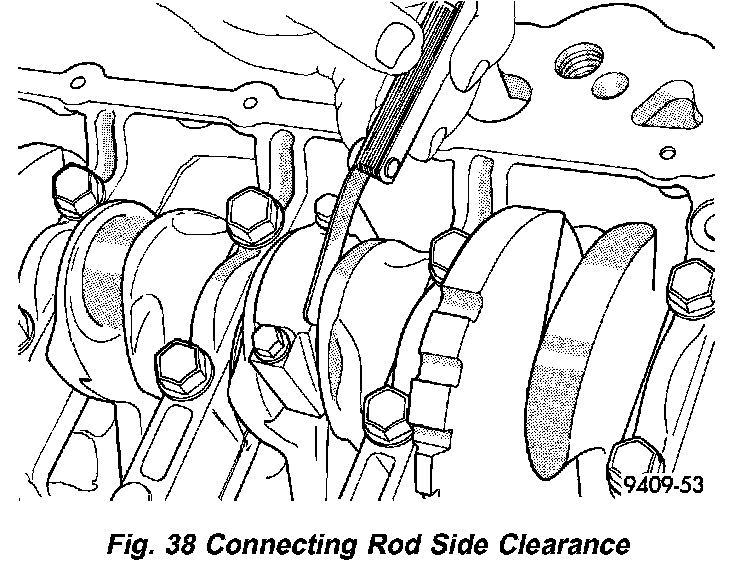

Fig. 38 Connecting Rod Side Clearance:

5. Using a feeler gauge, check connecting rod side clearance.
