Air Outlets Replacement

AIR OUTLET BARRELS

REMOVAL

NOTE: The instrument panel air outlets are retained into the outlet housings by a light snap fit.

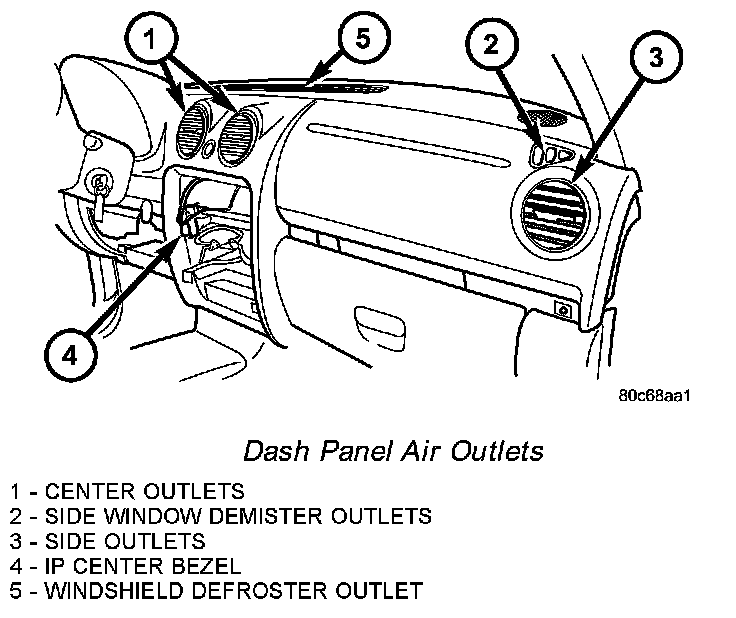

Dash Panel Air Outlets:

1. Using a trim stick or another suitable wide flat-bladed tool, gently pry on the panel air outlet barrel(s) until the barrel retainers release from the barrel pivots of the air outlet housing.
2. Remove the barrel(s) from the outlet(s). If needed, use a trim stick to help remove the barrels.

INSTALLATION
1. Position the air outlet barrel(s) into the outlet housing(s).
2. Gently push the air outlet barrel(s) into the housing(s) until it snaps into position.
