Reat Flow Heat Duct

REMOVAL
1. Remove the floor console from the vehicle.

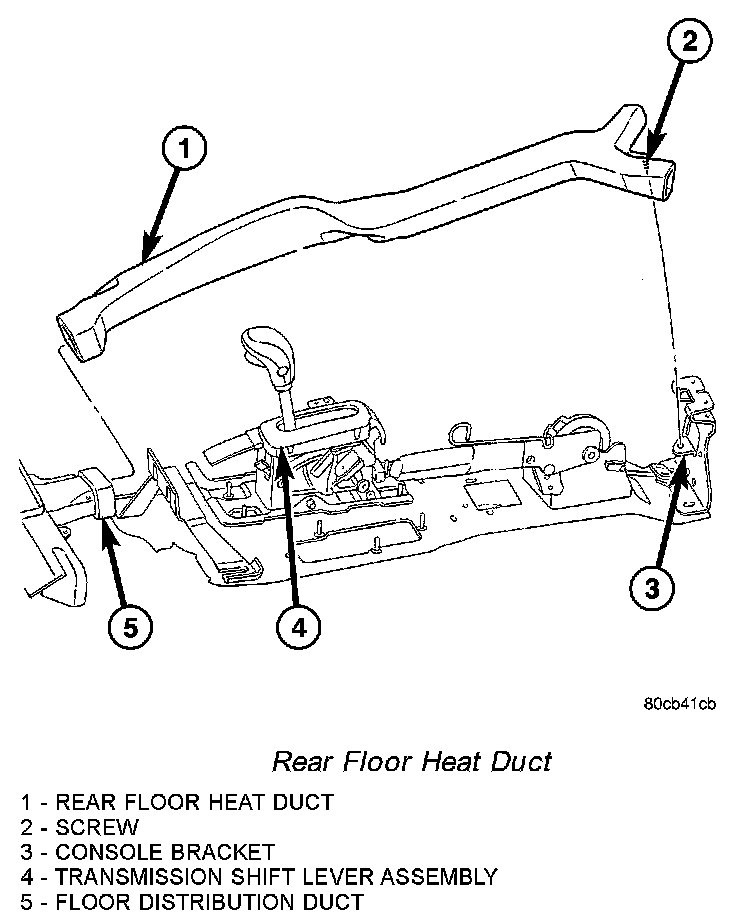

Rear Floor Heat Duct:

2. Remove the screw that secures the rear floor heat duct to the floor console bracket.
3. Disengage the rear floor heat duct from the floor distribution duct.
4. Remove the rear floor heat duct from the vehicle.

INSTALLATION
1. Position the rear floor heat duct into the vehicle.
2. Connect the rear floor heat duct to the floor distribution duct.
3. Install the screw that secures the rear floor heat duct to the floor console bracket. Tighten the screw to 3.2 Nm (20 in. lbs.).
4. Install the floor console.
