Drive Belt: Diagrams

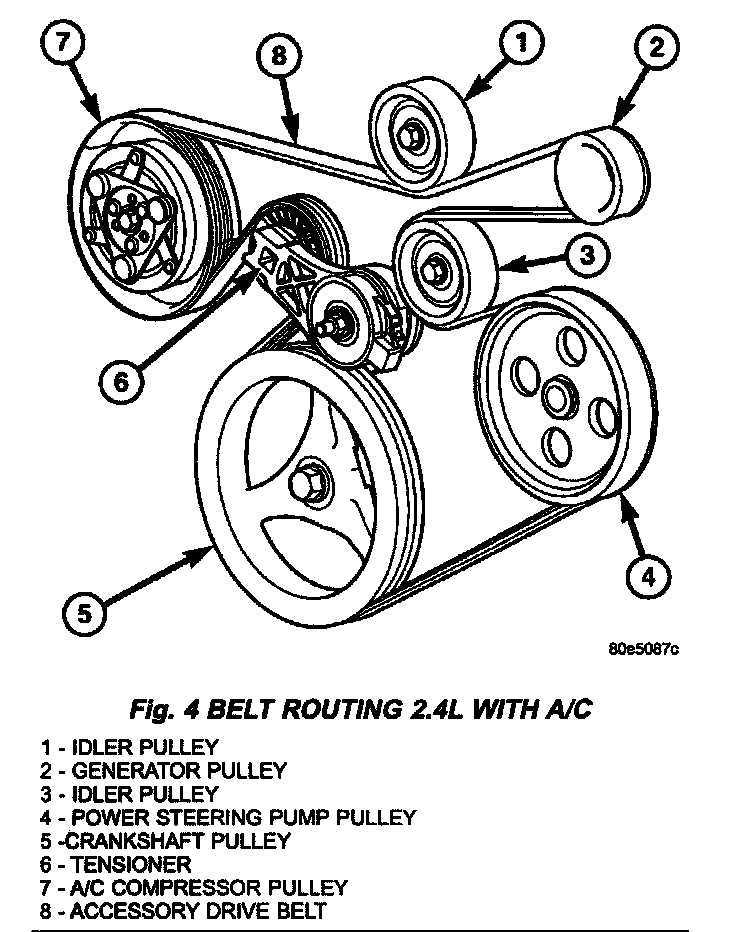

2.4L Accessory Belt Routing With AC:



2.4L Accessory Belt Routing Without AC:
