Steering Hoses

Steering Hoses

REMOVAL
1. Siphon the power steering fluid from the reservoir.
2. Remove the upper core support.
3. Remove the clutch fan.
4. Remove the fan shroud.
5. Remove the serpentine belt.
6. Remove the return hose from the pump.
7. Remove the return hose at the cooler.

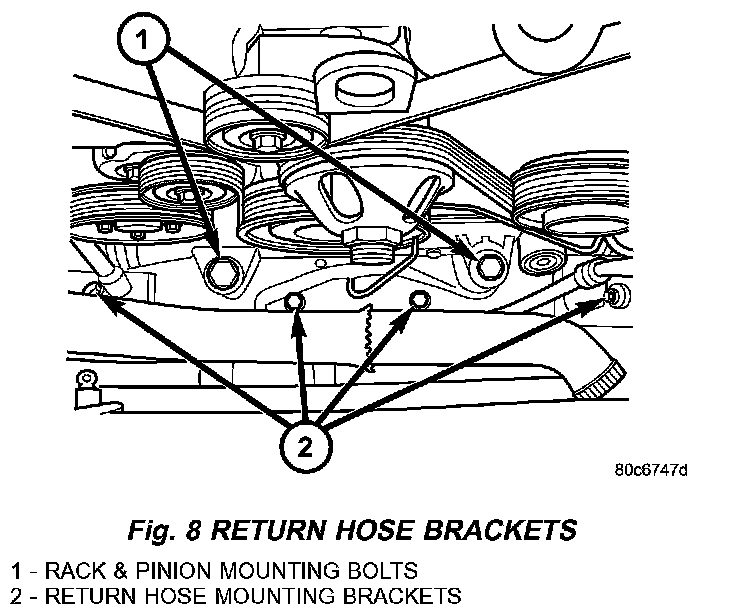

Fig. 8 Return Hose Brackets:

8. Remove the return hose mounting bracket bolts from the front cradle.
9. Remove the return hose from the vehicle.

INSTALLATION
1. Install the return hose to the vehicle.
2. Install the return hose mounting bracket bolts to the front cradle.
3. Install the return hose at the cooler.

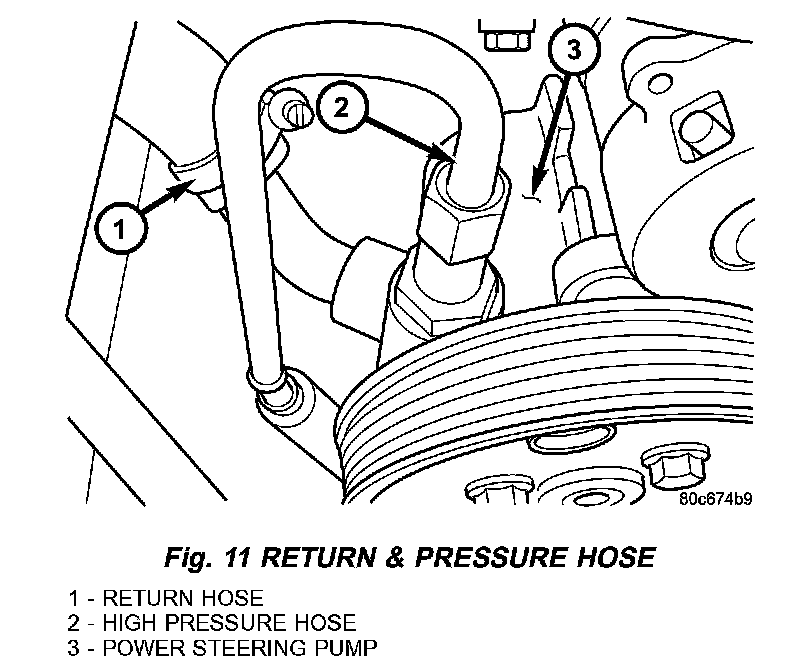

Fig. 11 Return & Pressure Hose:

4. Install the return hose at the pump.
5. Install the serpentine belt.
6. Install the fan shroud.
7. Install the clutch fan.
8. Install the upper core support.
9. Refill the power steering fluid.
