B. Test Door Lock Motor Operation

1. Cycle the lock motors up and down using the door switch.

2. Verify that all five door lock motors are functioning.

> If all five of the door lock motors are functioning properly no further action required.

> If one or more of the door lock motors fail to operate, all five door latches
(front doors, rear doors and swing gate) must be replaced. Continue with
Section "C" - Door Latches and Swing Gate Latch Replacement.

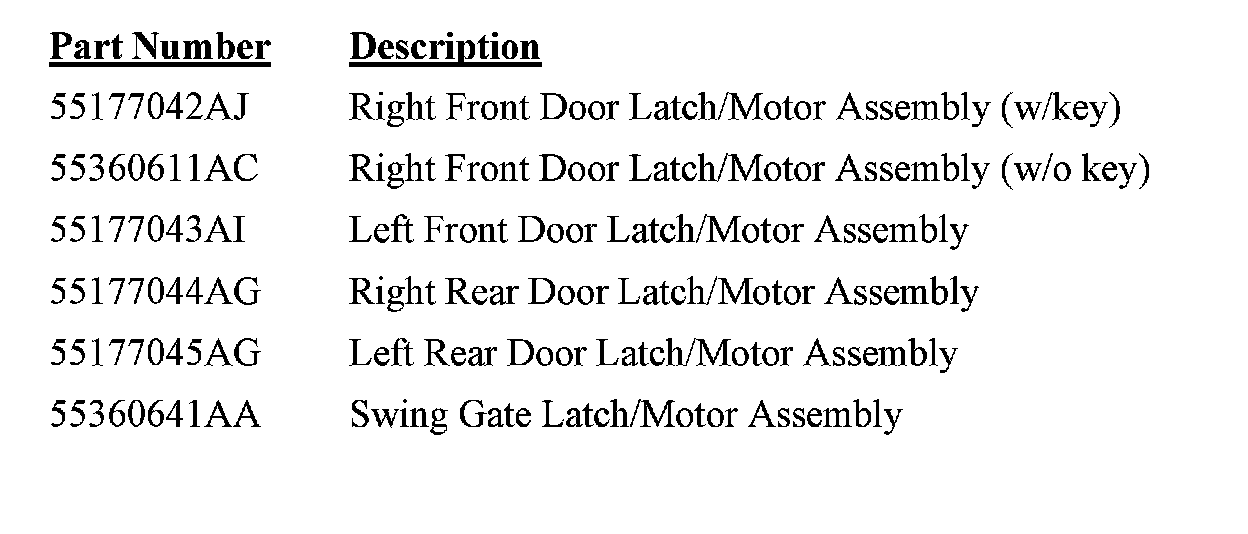

3. If door lock motor replacement is required, all motor/latches must be replaced. Order the appropriate latches as required.
