Ignition Coil: Diagrams

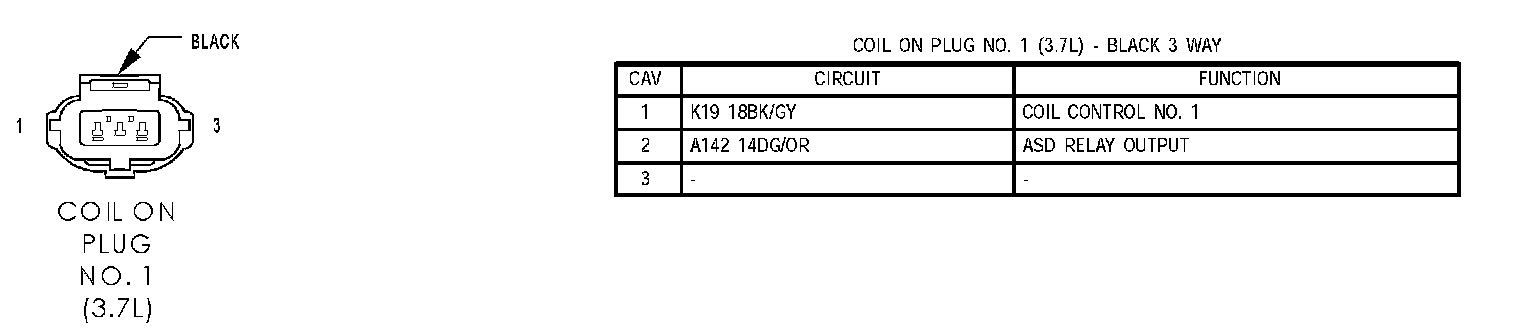

Coil On Plug No.1(3.7L):

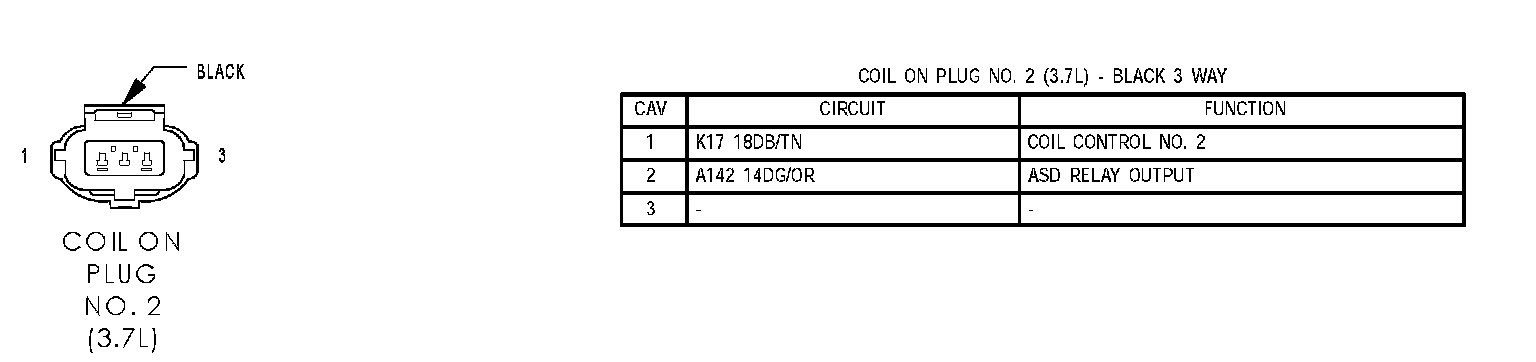

Coil On Plug No.2(3.7L):

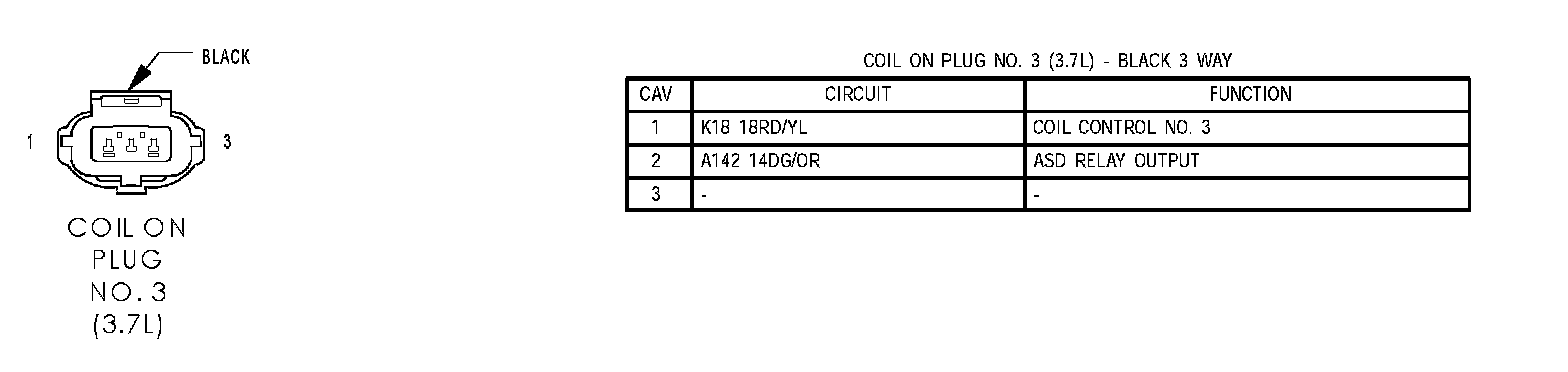

Coil On Plug No.3(3.7L):

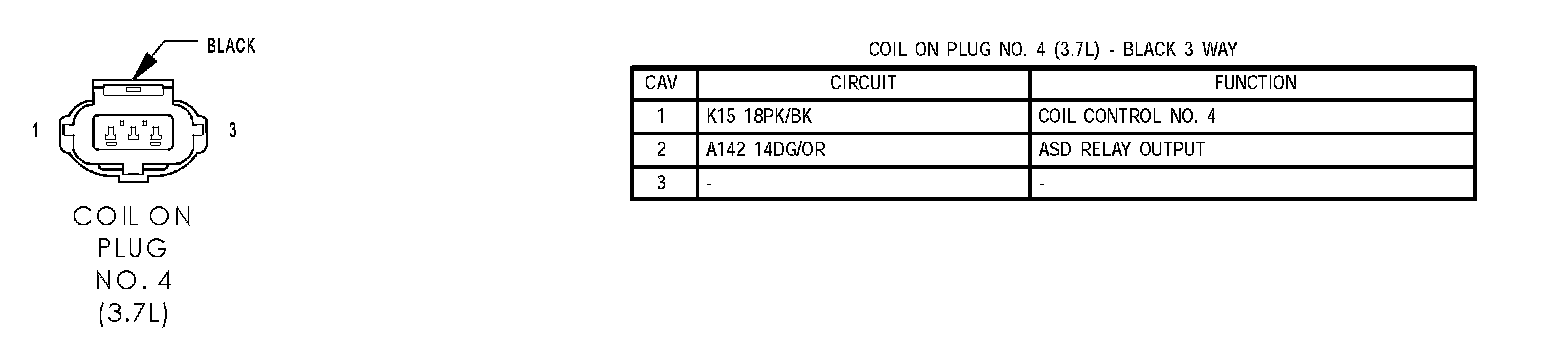

Coil On Plug No.4(3.7L):

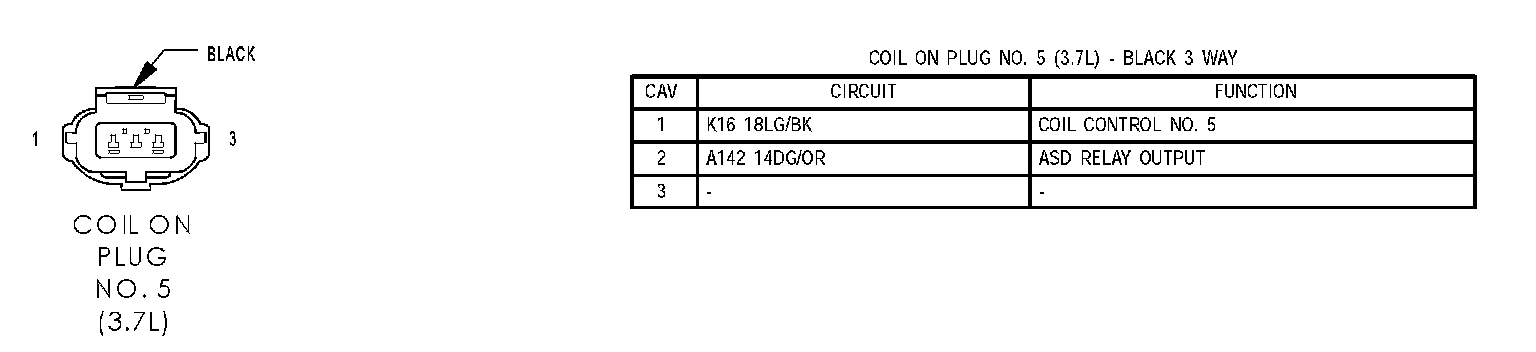

Coil On Plug No.5(3.7L):
Coil On Plug No.5(3.7L):
