Cruise Control Servo: Service and Repair

REMOVAL
1. Disconnect negative battery cable at battery.

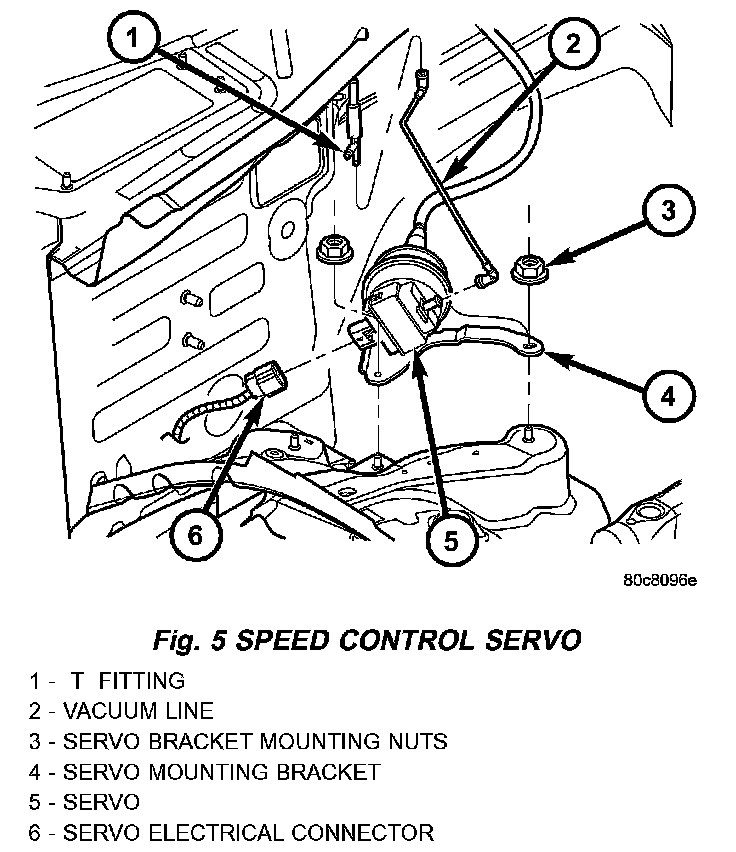

Fig.5 Speed Control Servo:

2. Disconnect vacuum line at servo.
3. Disconnect electrical connector at servo.
4. Remove coolant bottle nuts/bolts. Position bottle forward a few inches.
5. Disconnect servo cable at throttle body Refer to servo Cable Removal/Installation.
6. Remove servo bracket mounting nuts.

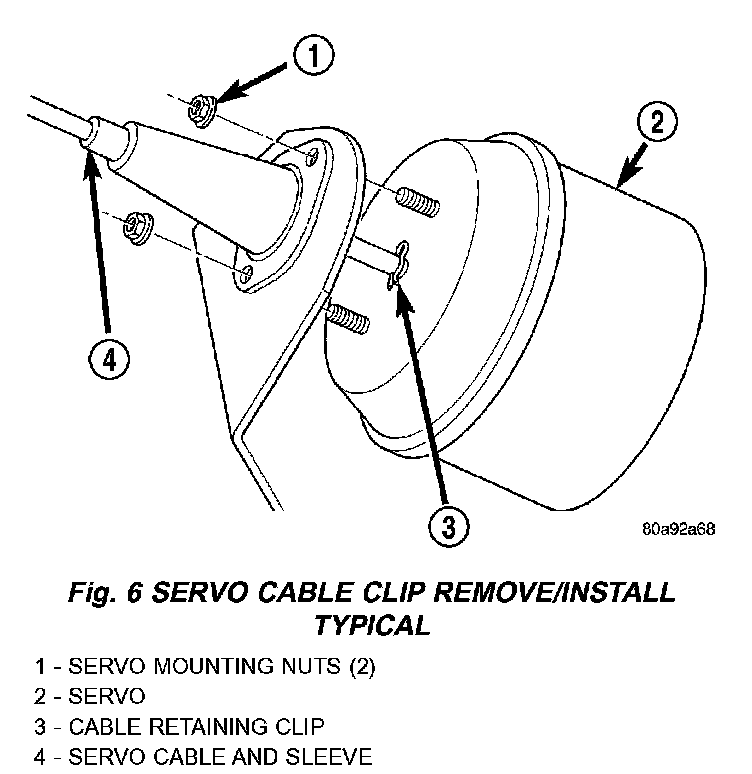

Fig.6 Servo Cable Clip Remove/Install - Typical:

7. Remove 2 mounting nuts holding servo cable sleeve to bracket.
8. Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip and remove clip. Note: The servomounting bracket displayed in is a typical bracket and may/may not be applicable to this model vehicle.
9. Remove servo from mounting bracket. While removing, note orientation of servo to bracket.

INSTALLATION
1. Position servo to mounting bracket.
2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip.
3. Insert servo mounting studs through holes in servo mounting bracket.
4. Install servo-to-mounting bracket nuts and tighten. Refer to torque specifications.
5. Install servo mounting bracket-to-body nuts and tighten. Refer to torque specifications.
6. Connect vacuum line at servo.
7. Connect electrical connector at servo.
8. Connect servo cable to throttle body. Refer to servo Cable Removal/Installation.
9. Install coolant bottle.
10. Connect negative battery cable to battery
11. Before starting engine, operate accelerator pedal to check for any binding.
